Architects: Le Corbusier
Year: 1963
Photography: Le Corbusier, fondationlecorbusier.fr, FLC, ADAGP, Wikimedia Commons, Bobak Ha’Eri, Petr Kratochvíl, Fulbright-Masaryk, Huanhai Cheng, Lei Han, Sean Beck, Sosa Lopez, David Nelson, Gustavo Thomas, Washingtonydc, Han Lei Photo, Hassan Bagheri
Collaborating Architect: Guillermo Jullian de la Fuente
Project Coordinator / Supervising Architect: Josep Lluís Sert
Client: Harvard University
Funding / Donors: Alfred St. Vrain Carpenter, Helen Bundy Carpenter
City: Cambridge
Country: United States
The Carpenter Center for the Visual Arts, an education building designed by Le Corbusier in Cambridge, has redefined the relationship between architecture, circulation, and artistic production through the integration of the Five Points of Architecture and a continuous architectural promenade, completed in 1963. The project serves as Harvard University’s center for visual arts, combining studios, exhibition spaces, and film facilities within a compact concrete structure. The building organizes movement through an S-shaped ramp that traverses it, linking Quincy Street and Prescott Street while exposing interior activities to public view. It employs pilotis, a free plan, brise-soleil, and ondulatoires to construct a responsive façade and flexible interior system. Its cylindrical, pinwheel-like massing is structured around a central vertical core, integrating circulation, structure, and program, and supports interdisciplinary production through open floor plates and visual continuity across levels. The project stands as Le Corbusier’s only built work in the United States and a late synthesis of his architectural language.
Carpenter Center for the Visual Arts, designed by Le Corbusier in collaboration with Guillermo Jullian de la Fuente, developed from Harvard University’s mid-1950s initiative to establish a dedicated visual arts facility. Financial support from Alfred St. Vrain Carpenter and Helen Bundy Carpenter, totaling approximately 1,500,000$, enabled the project, while Josep Lluís Sert secured the commission and supervised its execution. The building was completed in 1963 as Le Corbusier’s only realized work in the United States.

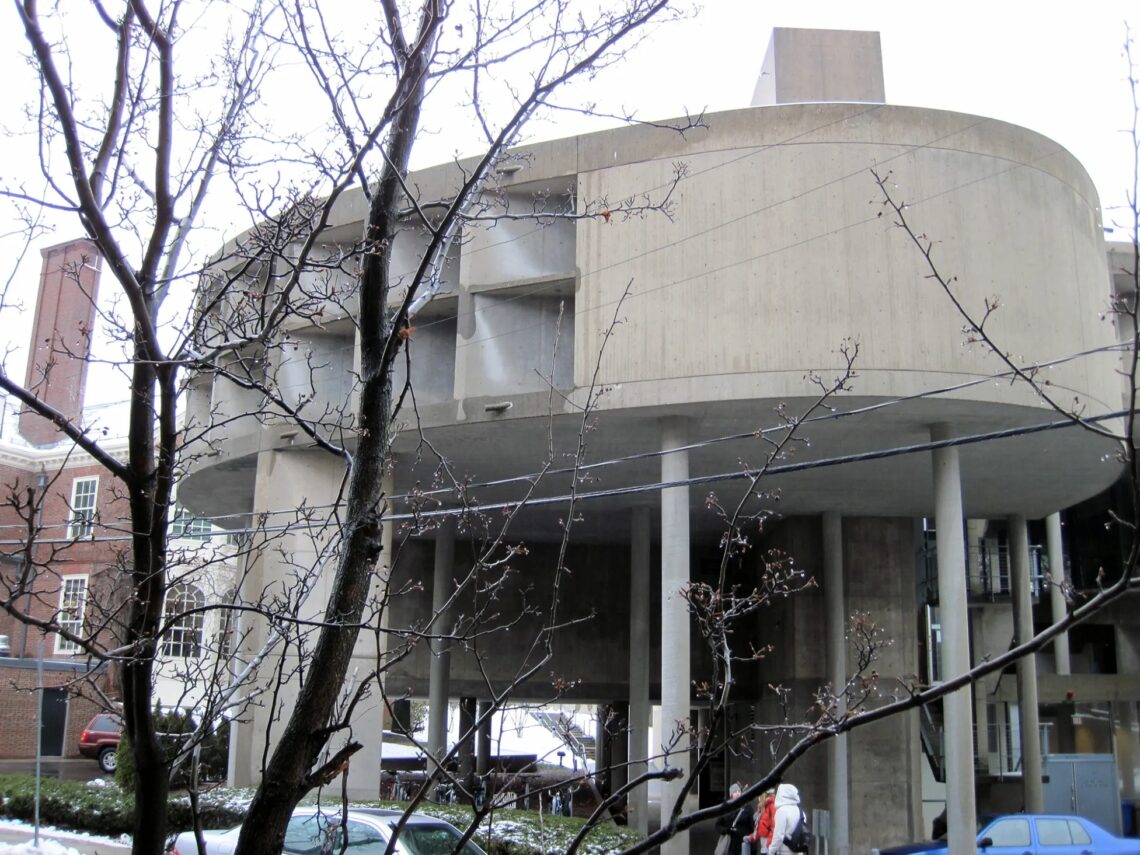

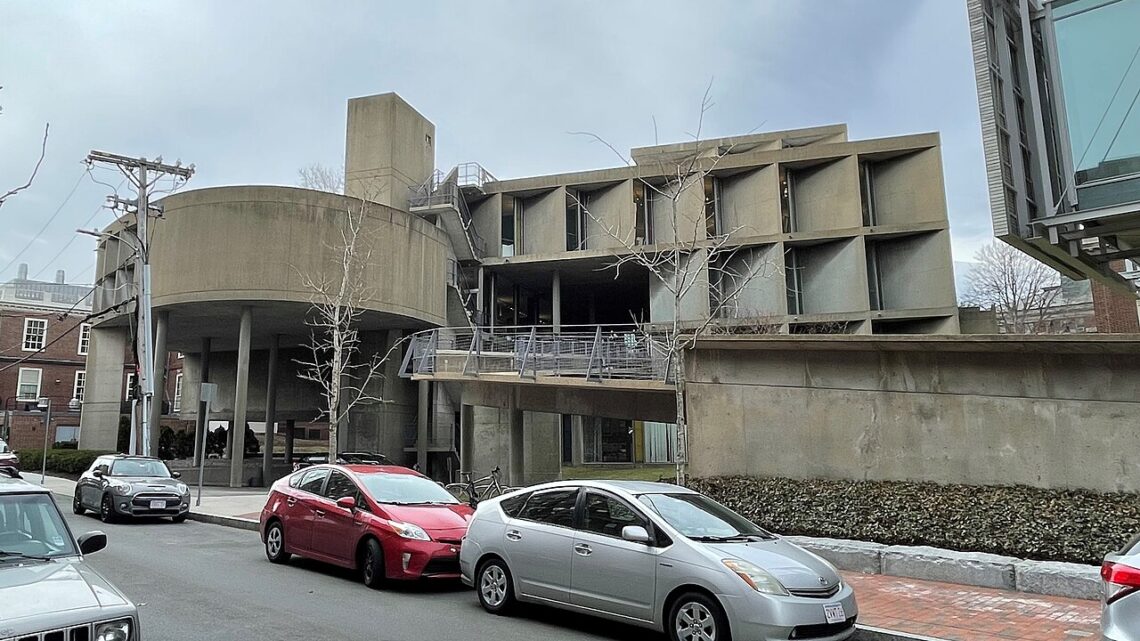

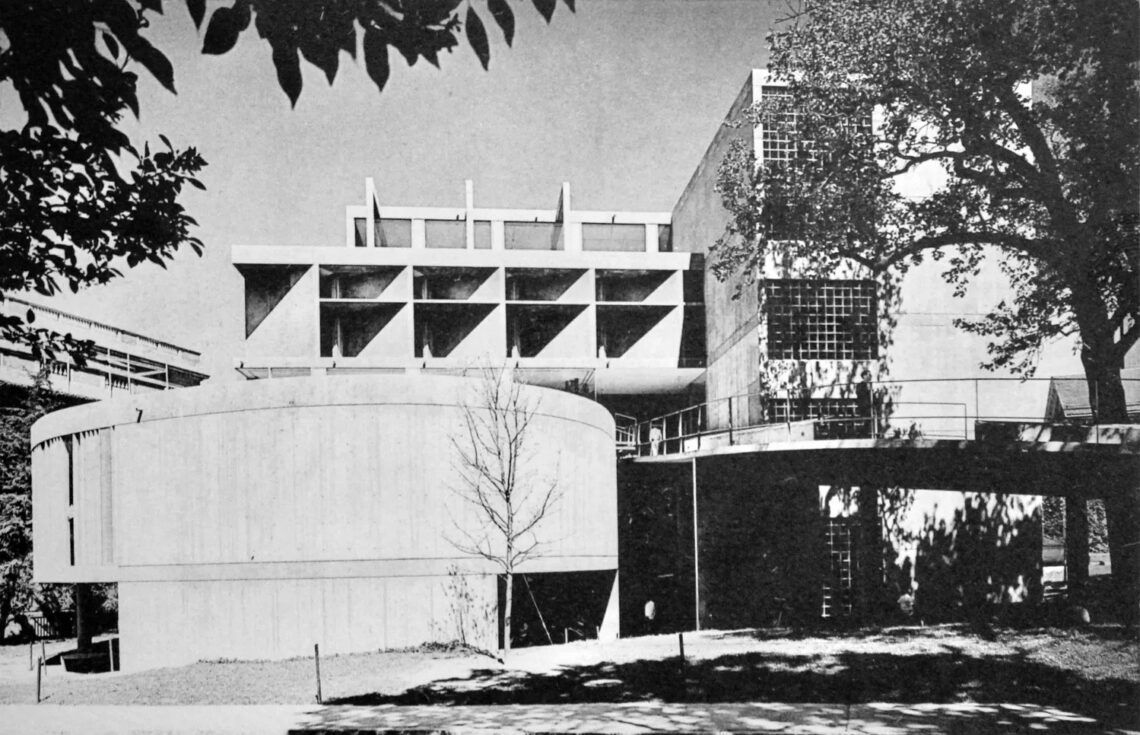

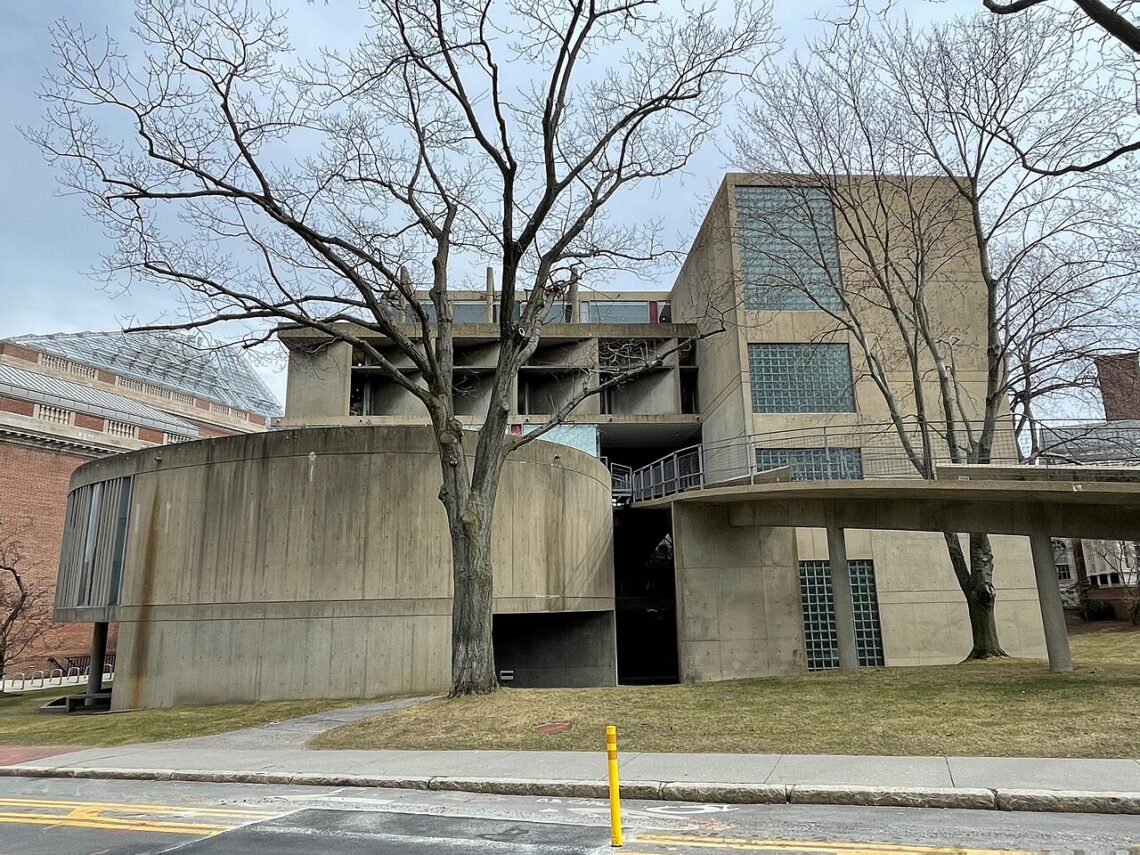

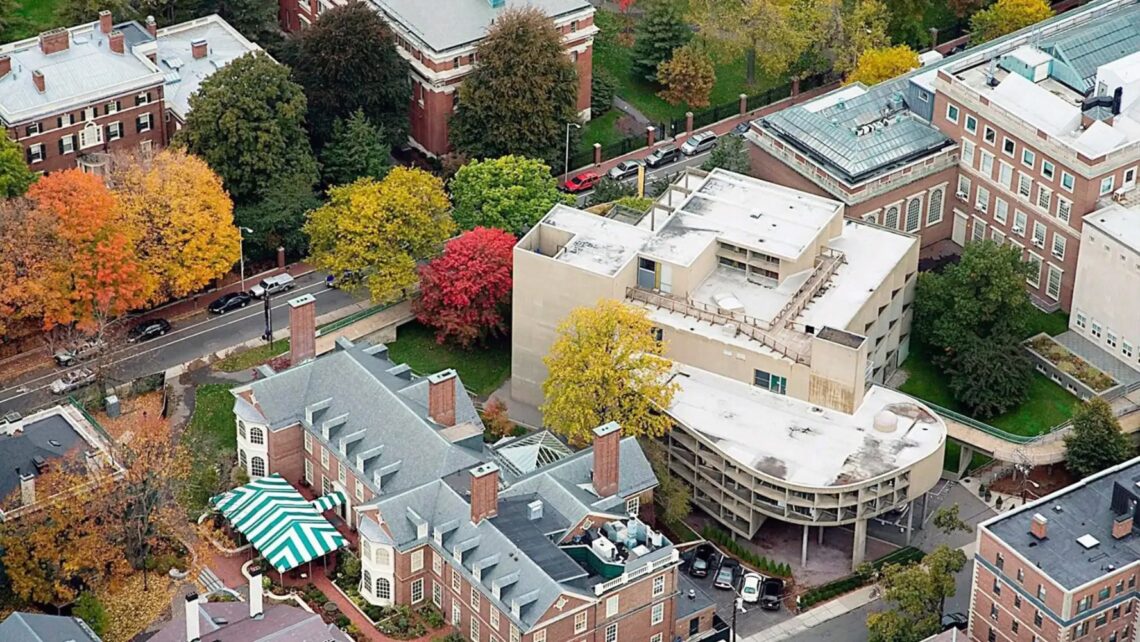

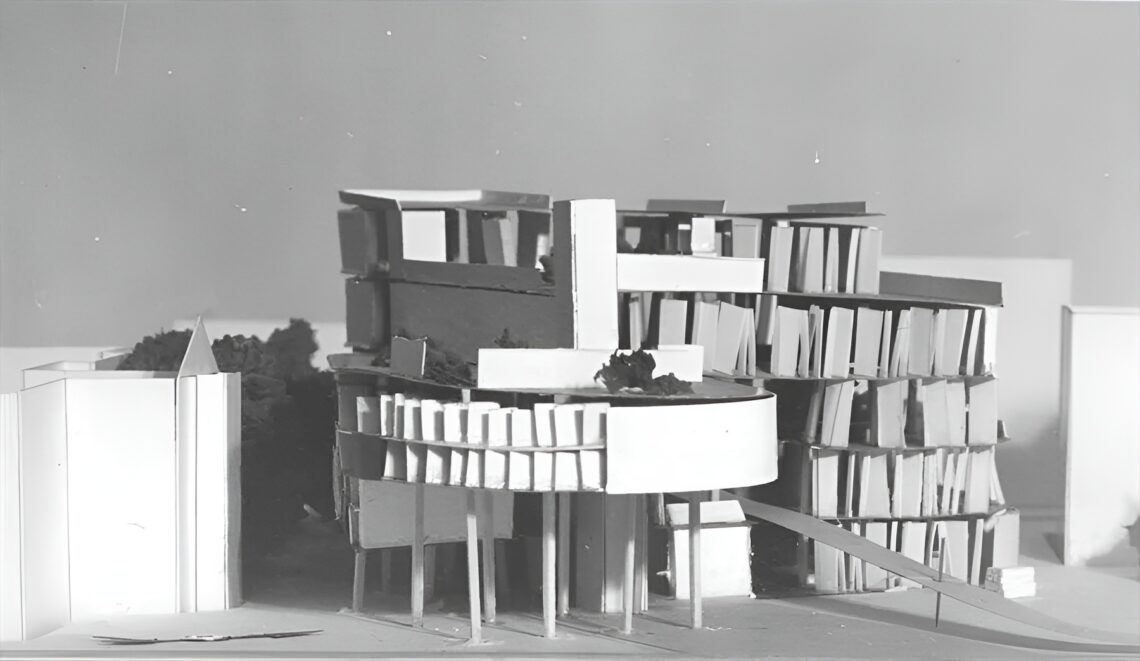

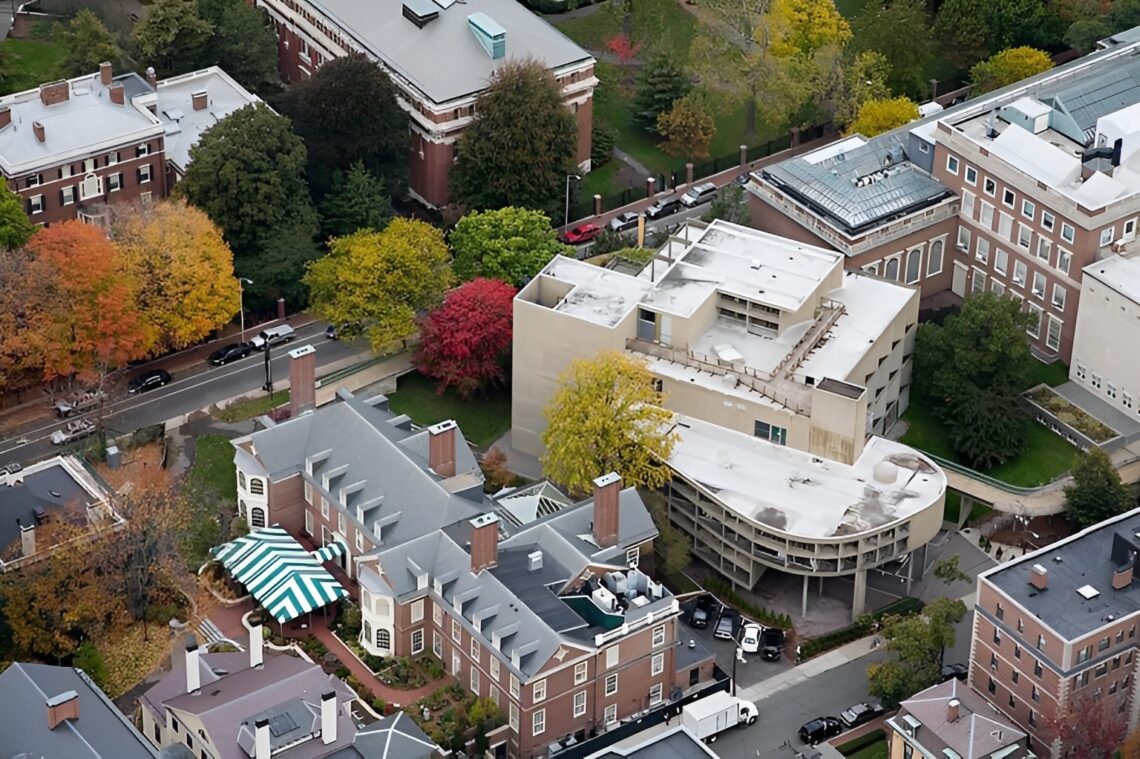

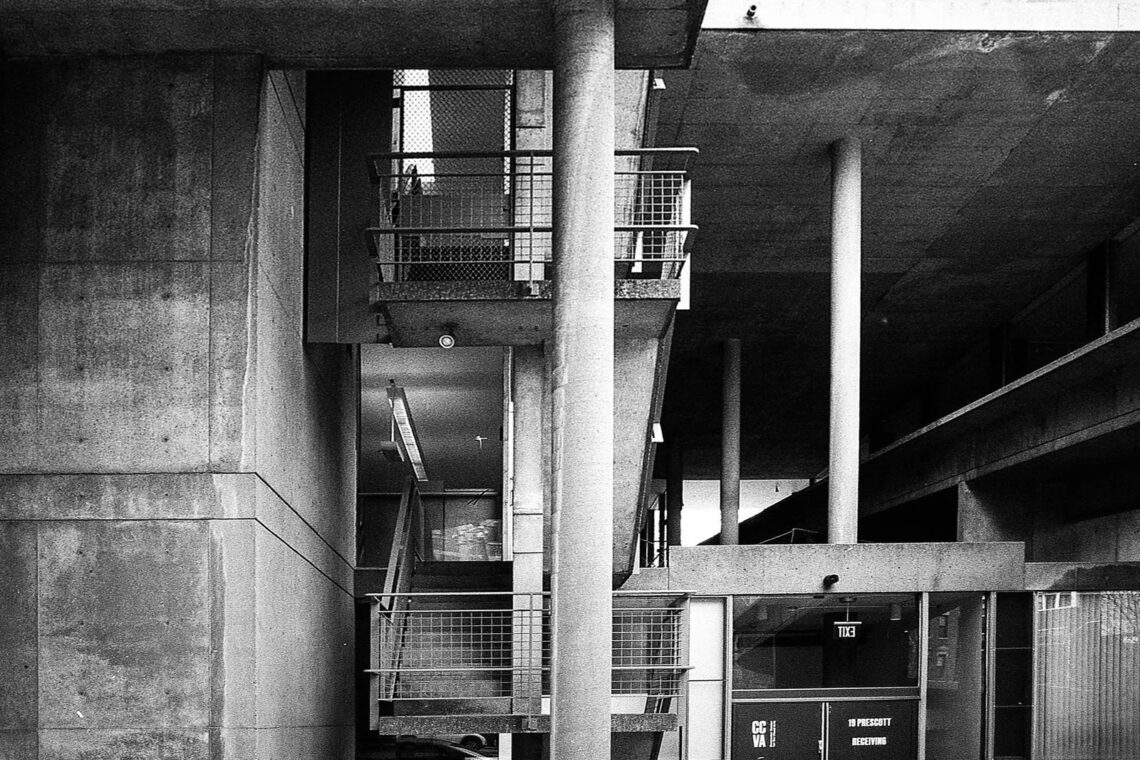

The project occupies a constrained site between Quincy Street and Prescott Street, introducing a compact, roughly cylindrical mass into a campus defined by Georgian and neoclassical architecture. The building develops through a pinwheel organization centered on a vertical core that contains circulation and services. This core anchors the composition while allowing the surrounding volumes to shift in form and orientation.

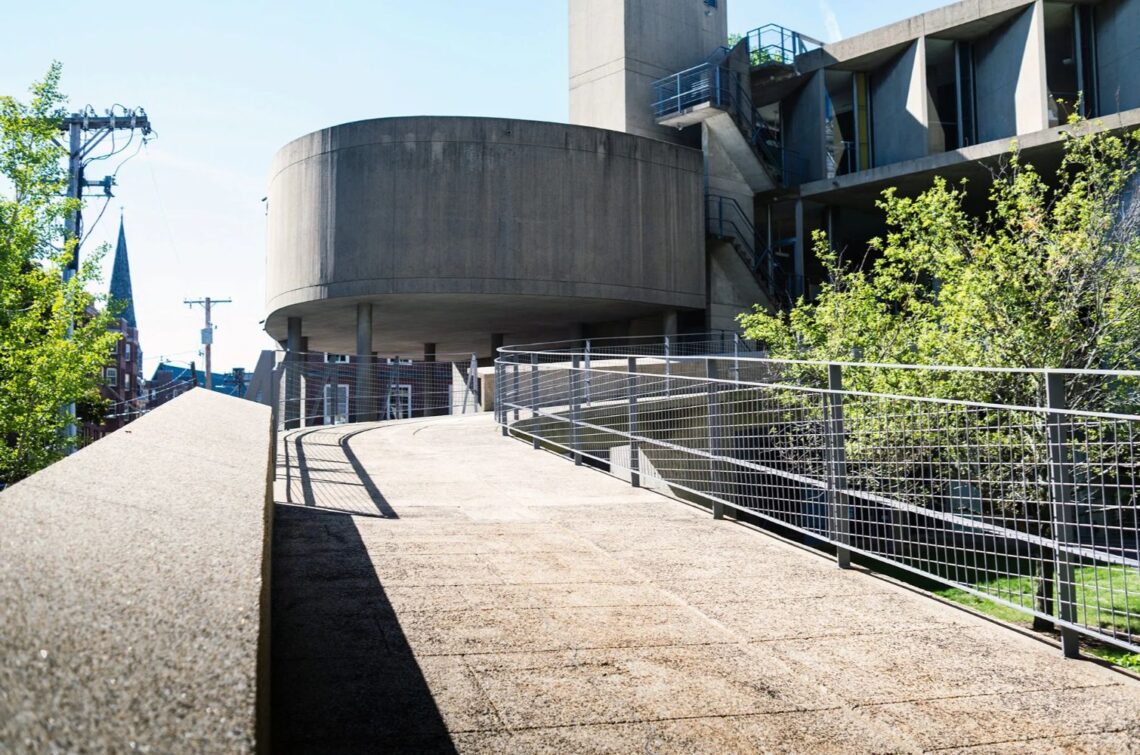

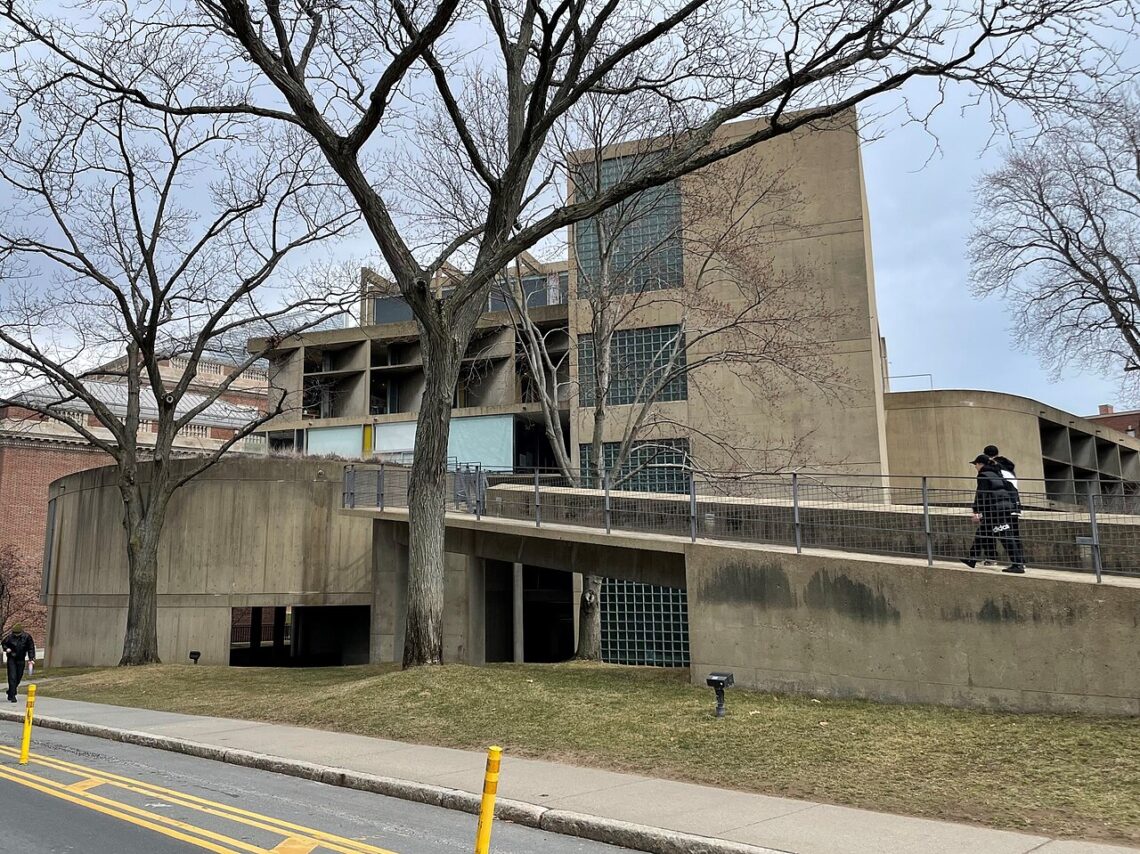

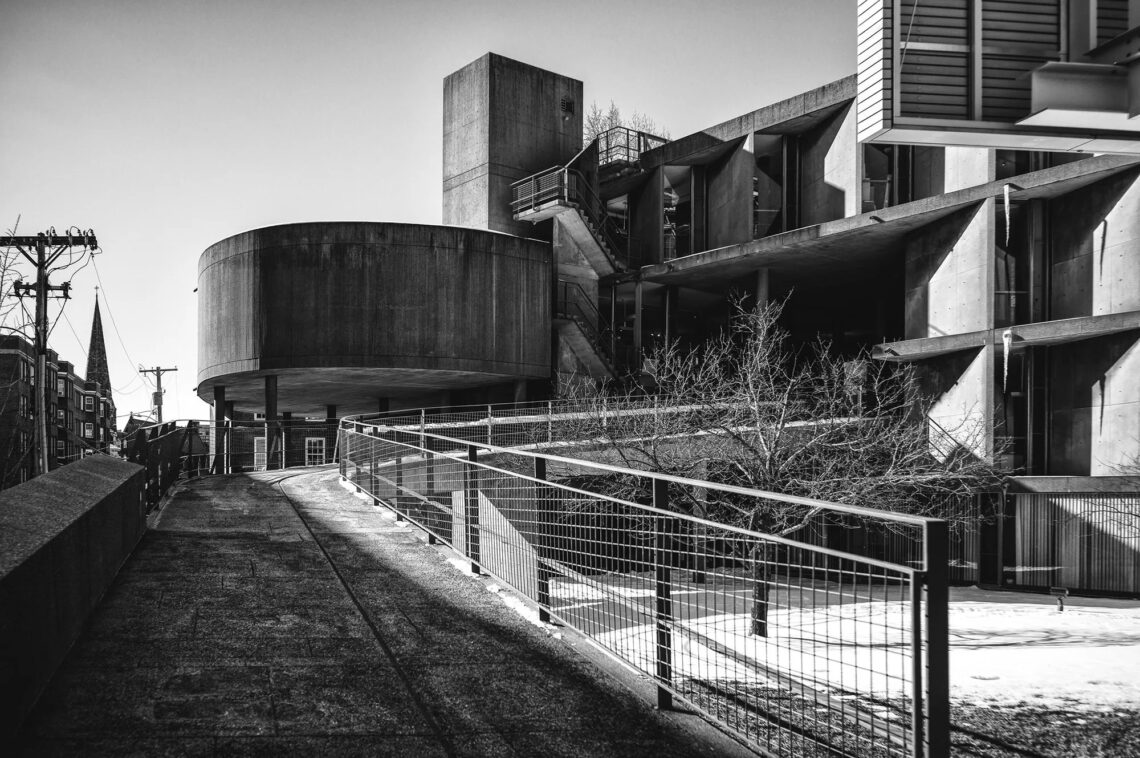

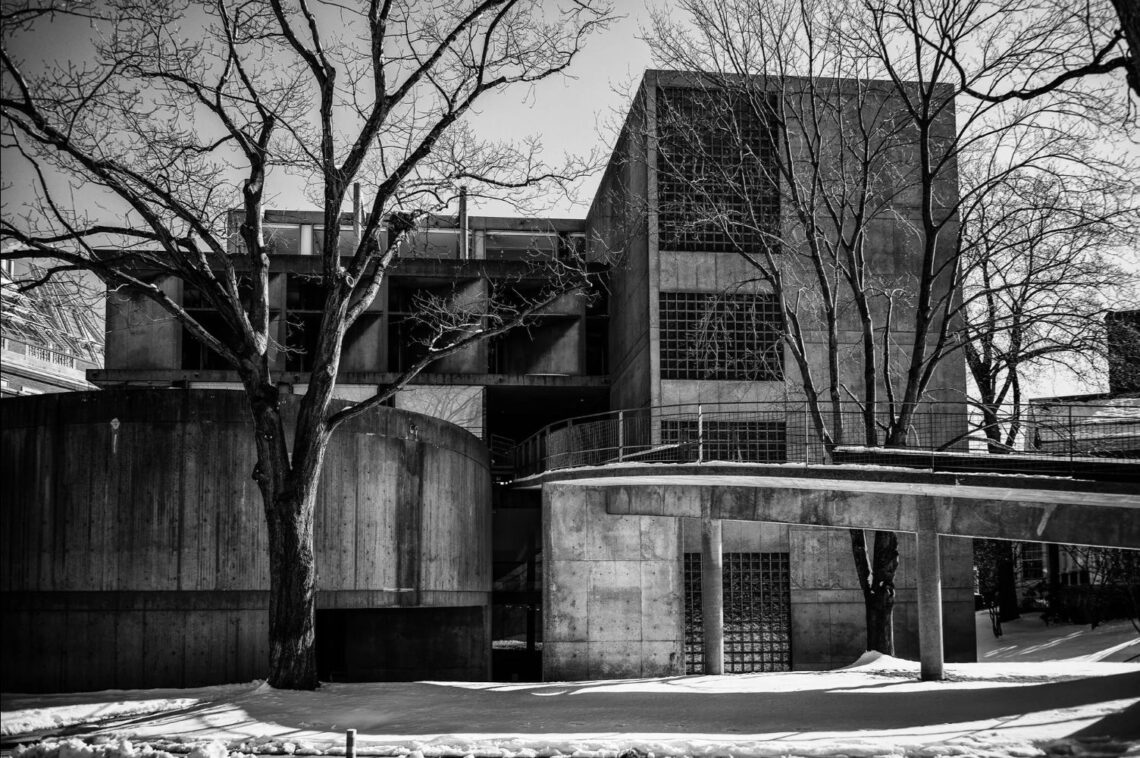

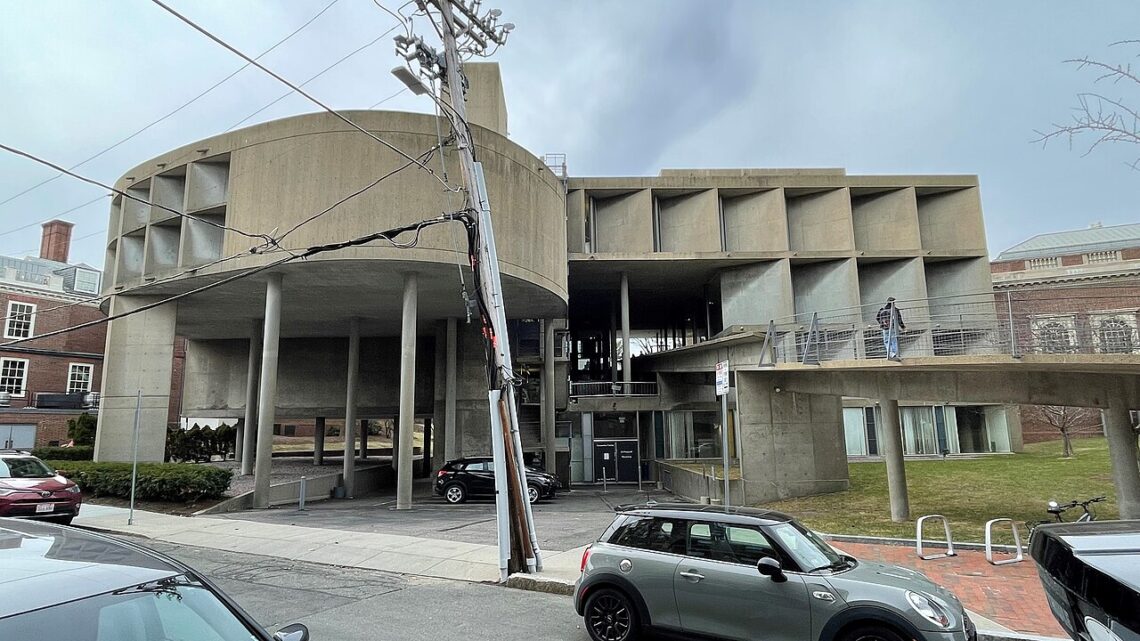

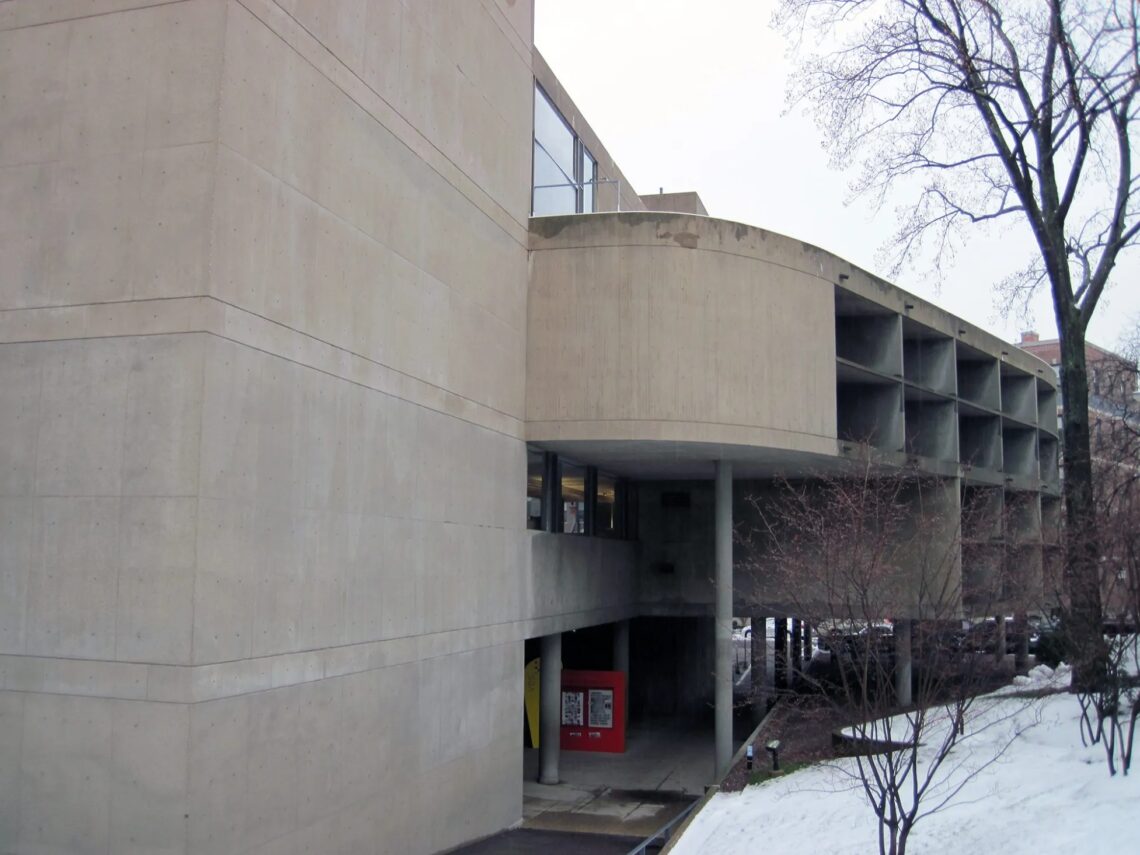

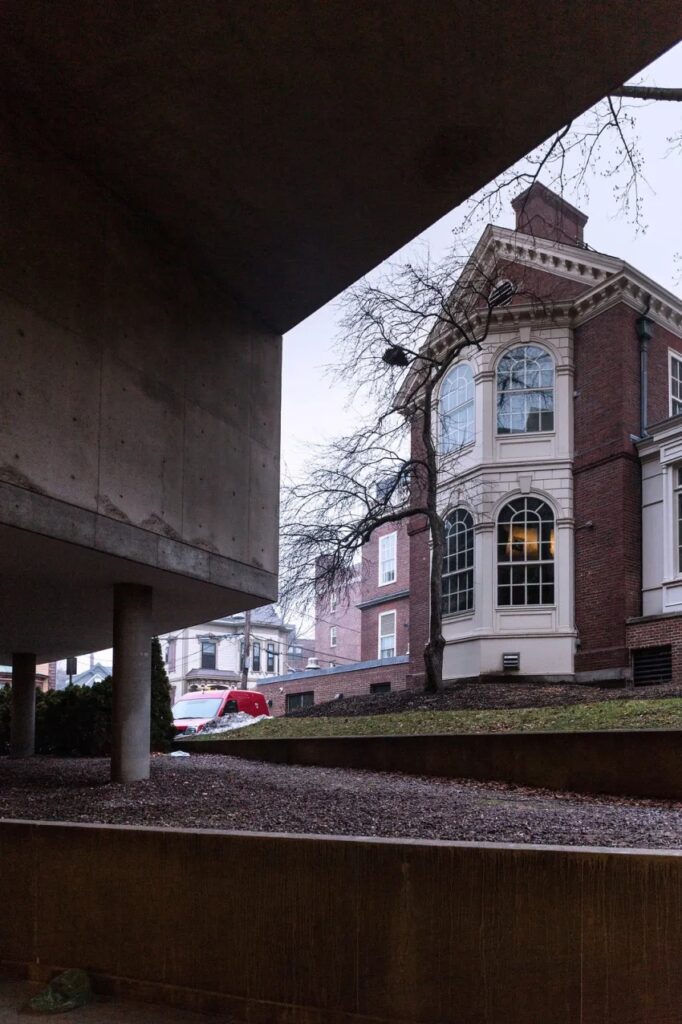

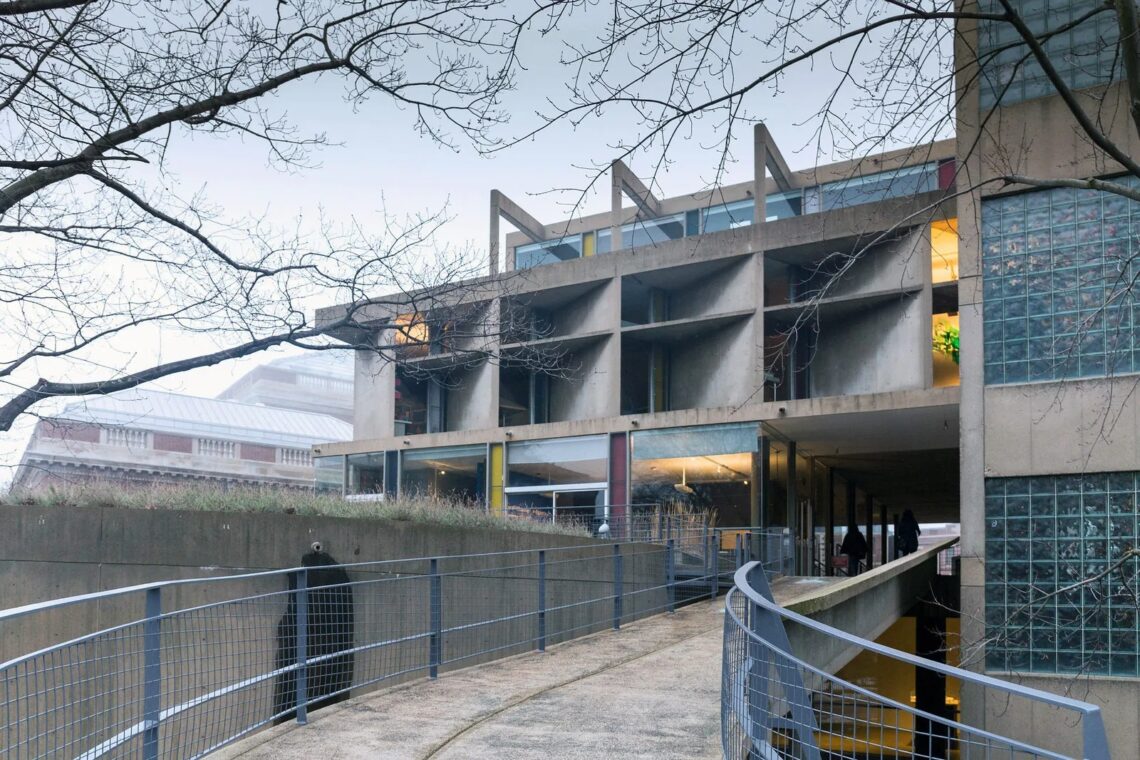

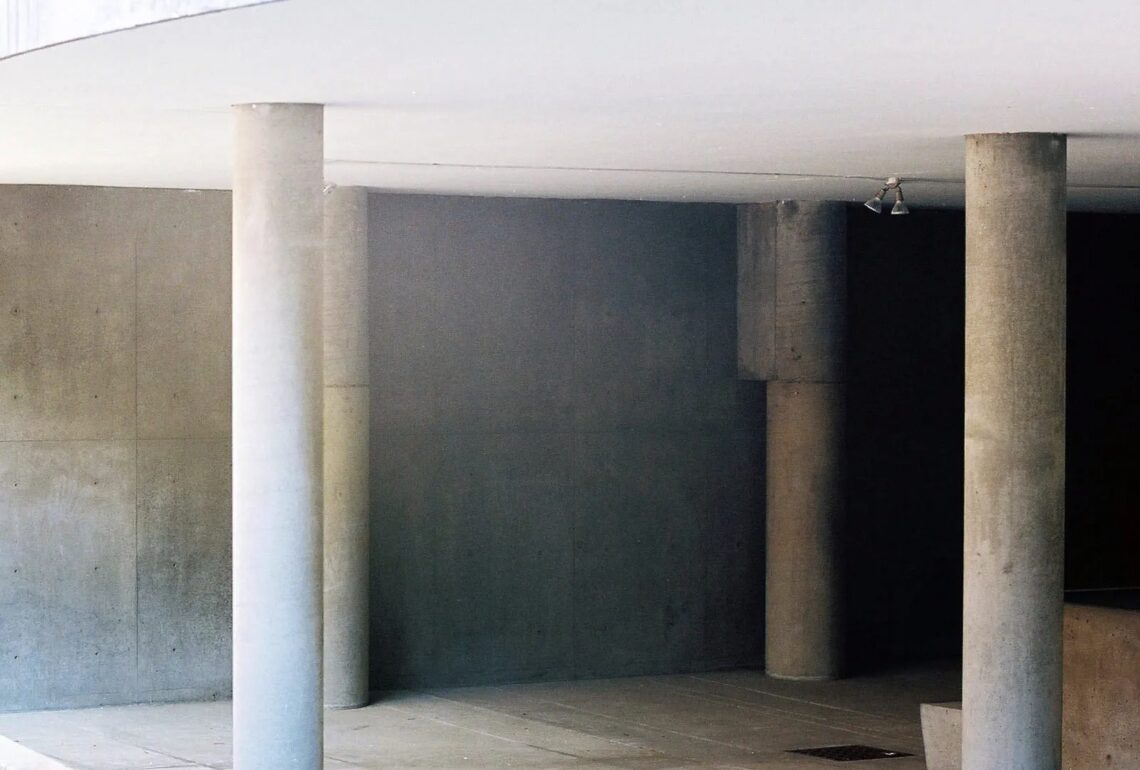

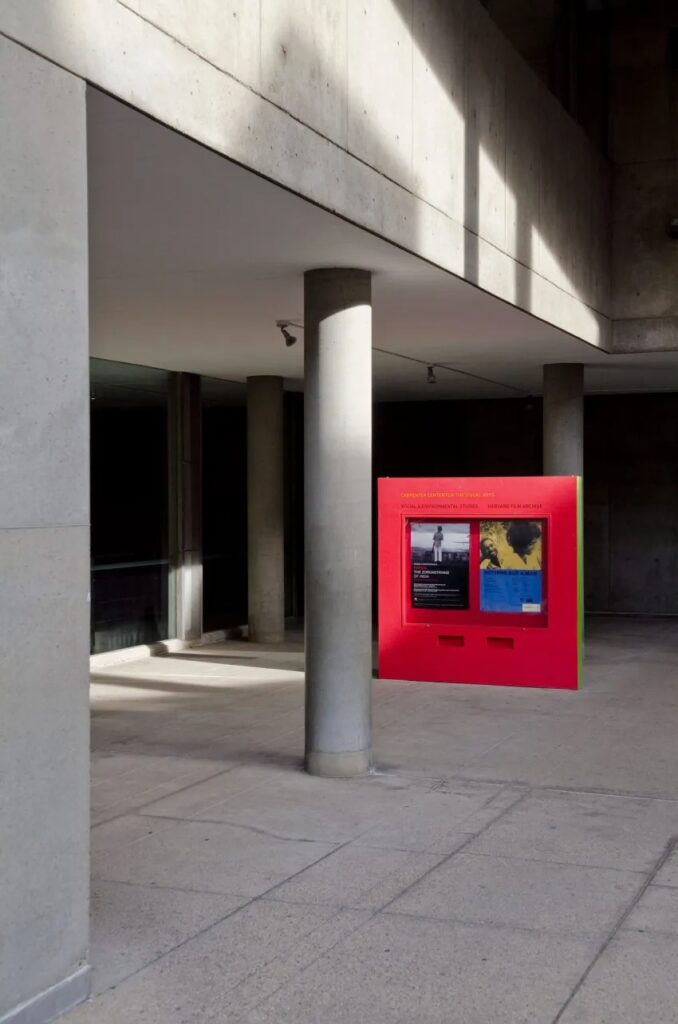

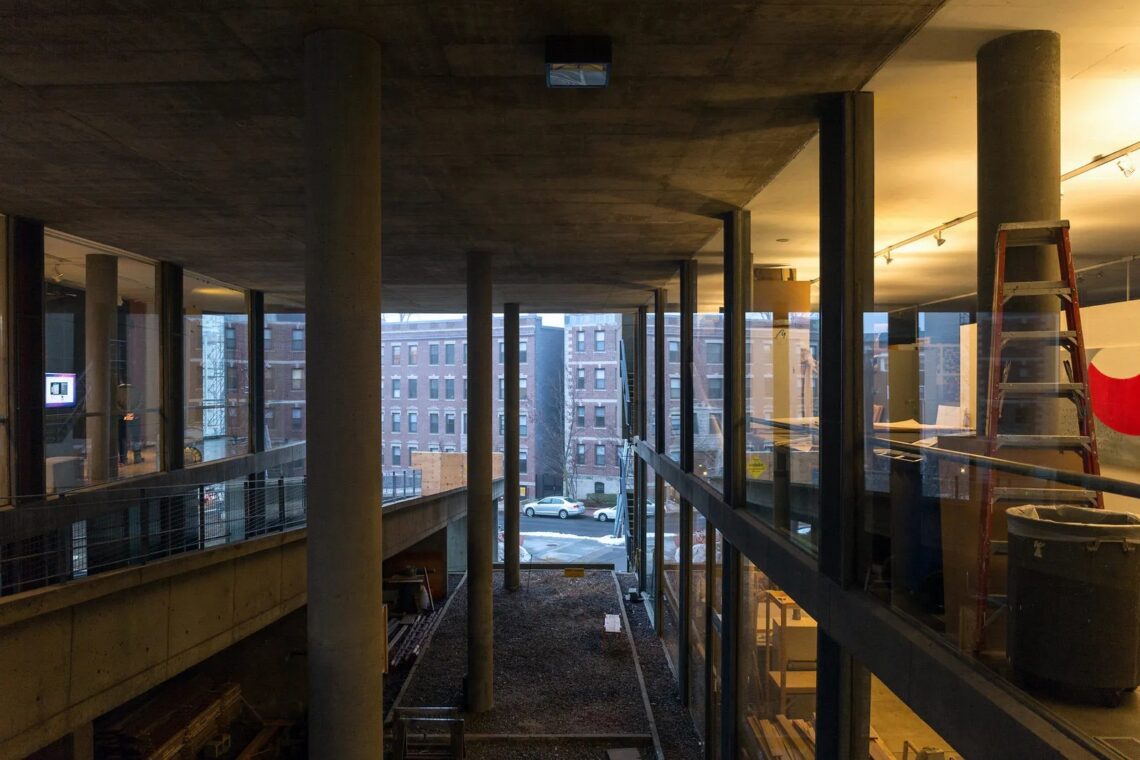

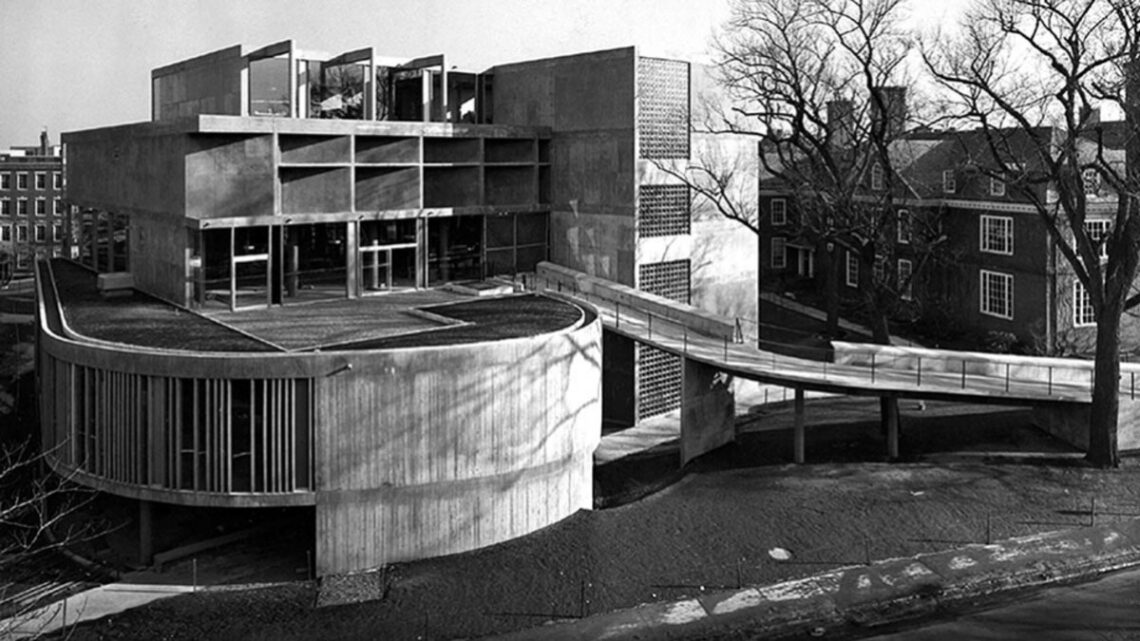

The architectural promenade defines the project through an S-shaped ramp that cuts across the building, connecting both streets and linking multiple levels. Cantilevered from the central core and supported by pilotis, it enables uninterrupted pedestrian movement while exposing studios, galleries, and screening spaces through glazing, providing visual access to artistic production without interrupting activity. The interior adopts a free plan, forming open studio environments that accommodate flexible use, while curvilinear walls define spatial boundaries and guide movement, reinforcing a spatial sequence organized around the ramp. This arrangement supports interaction between disciplines, integrating painting, sculpture, photography, and film within a single framework.

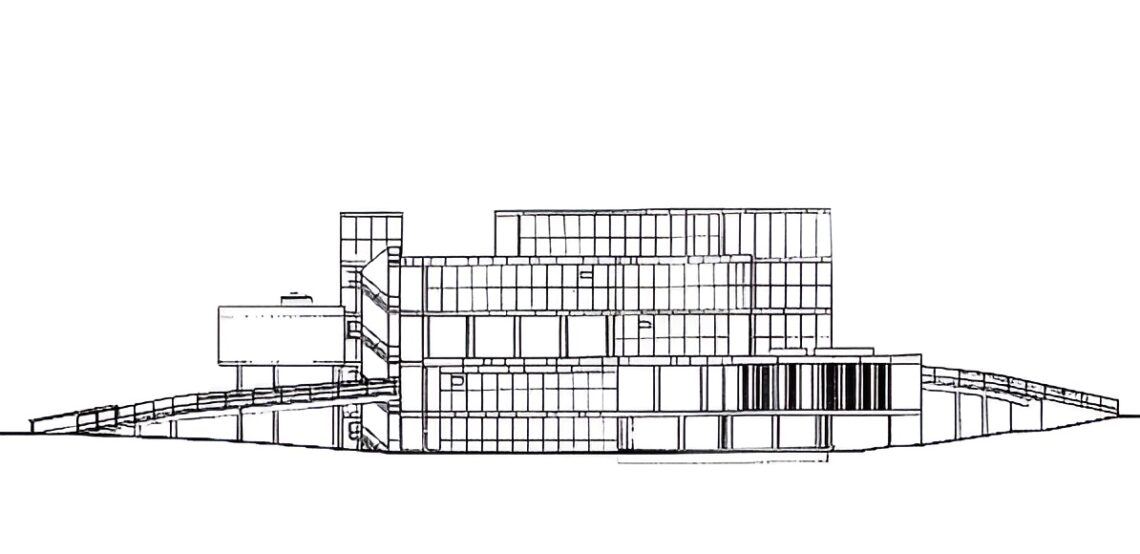

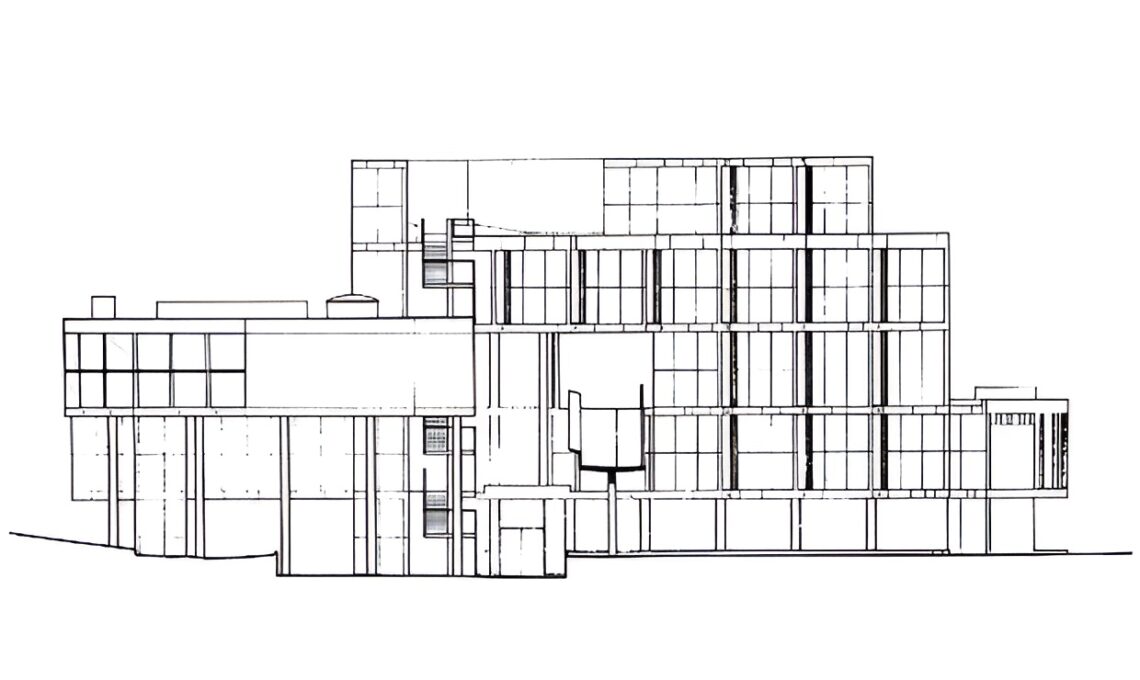

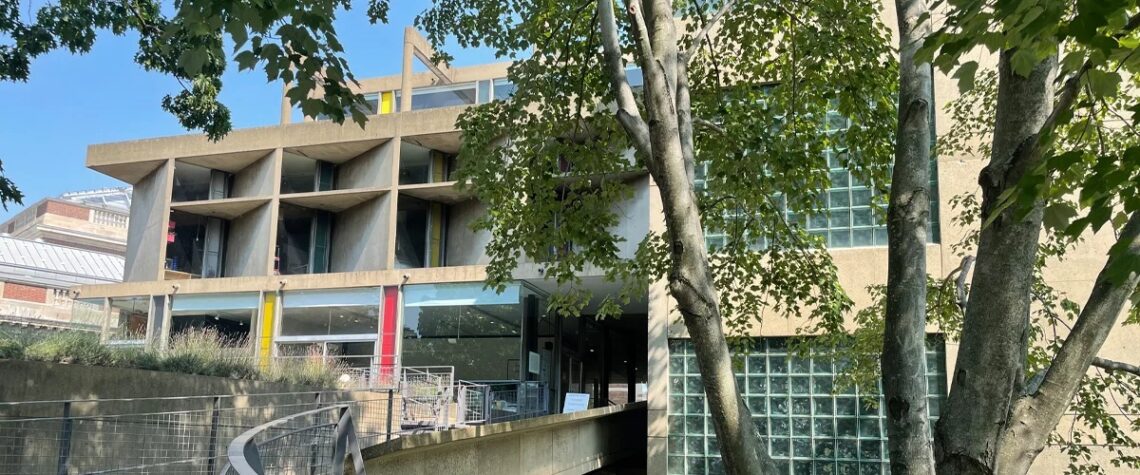

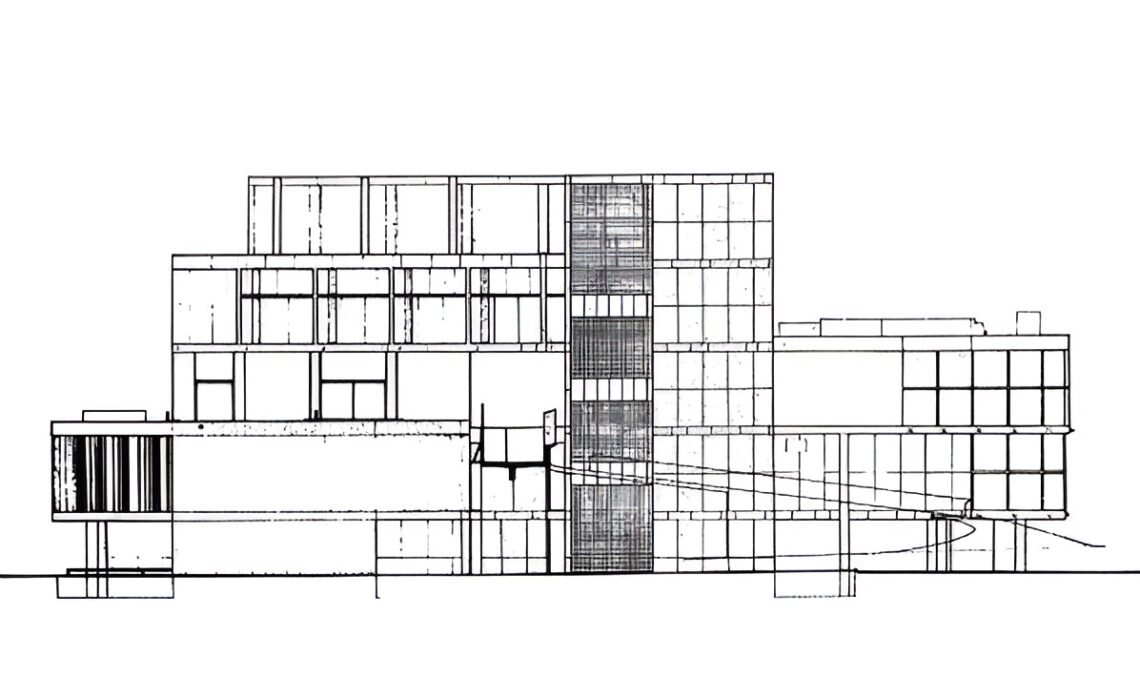

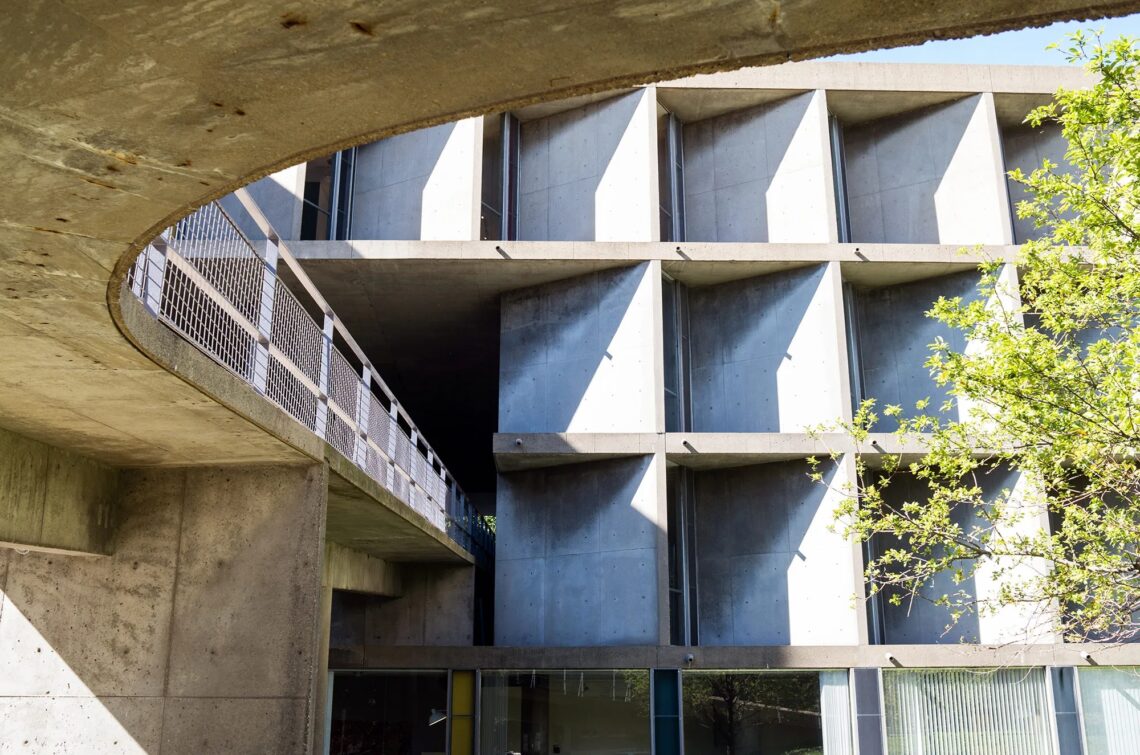

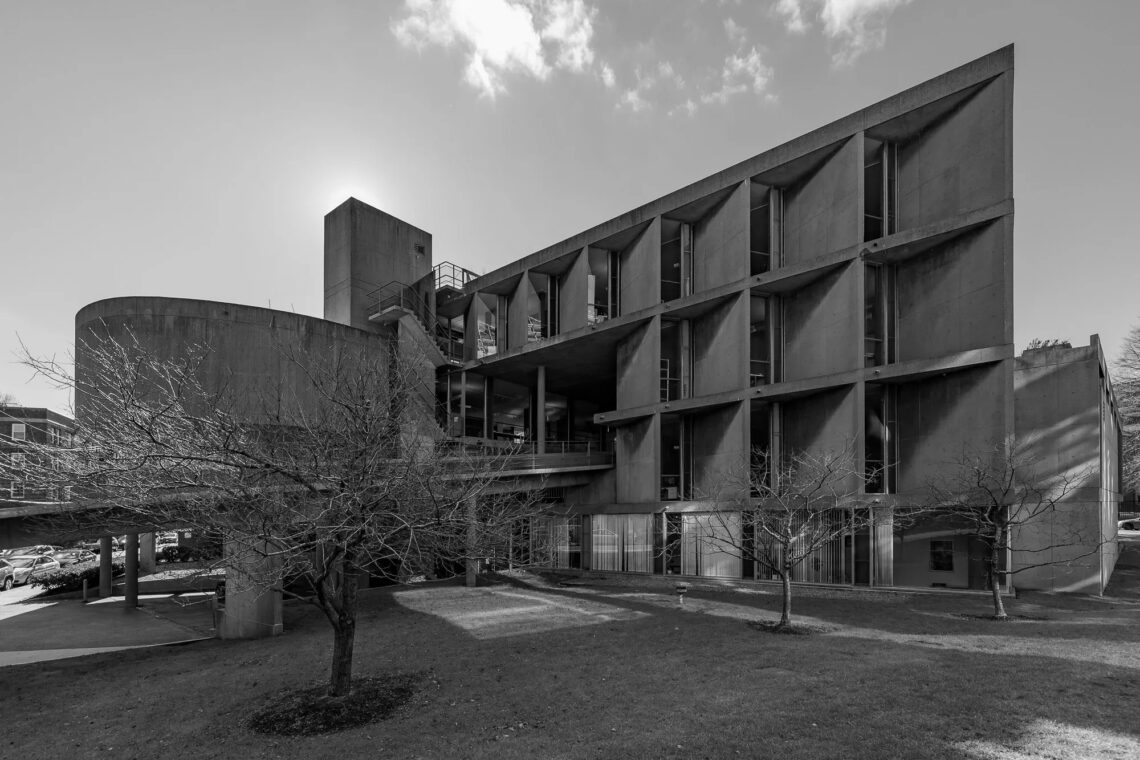

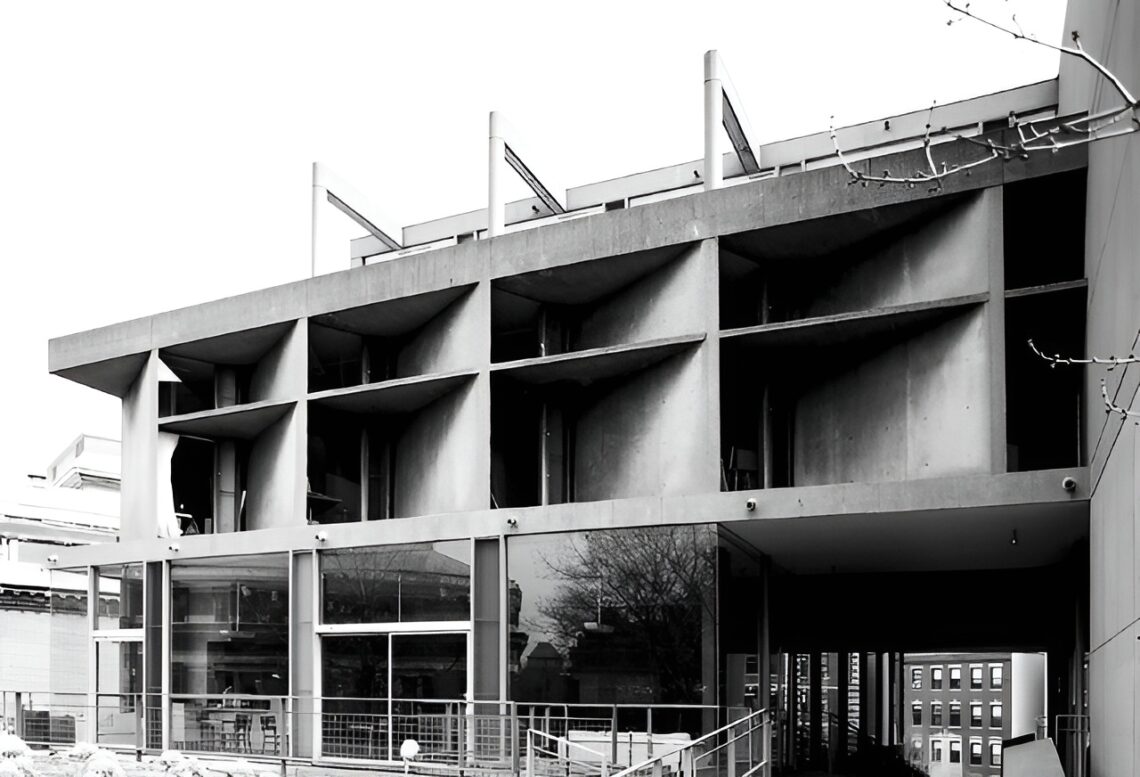

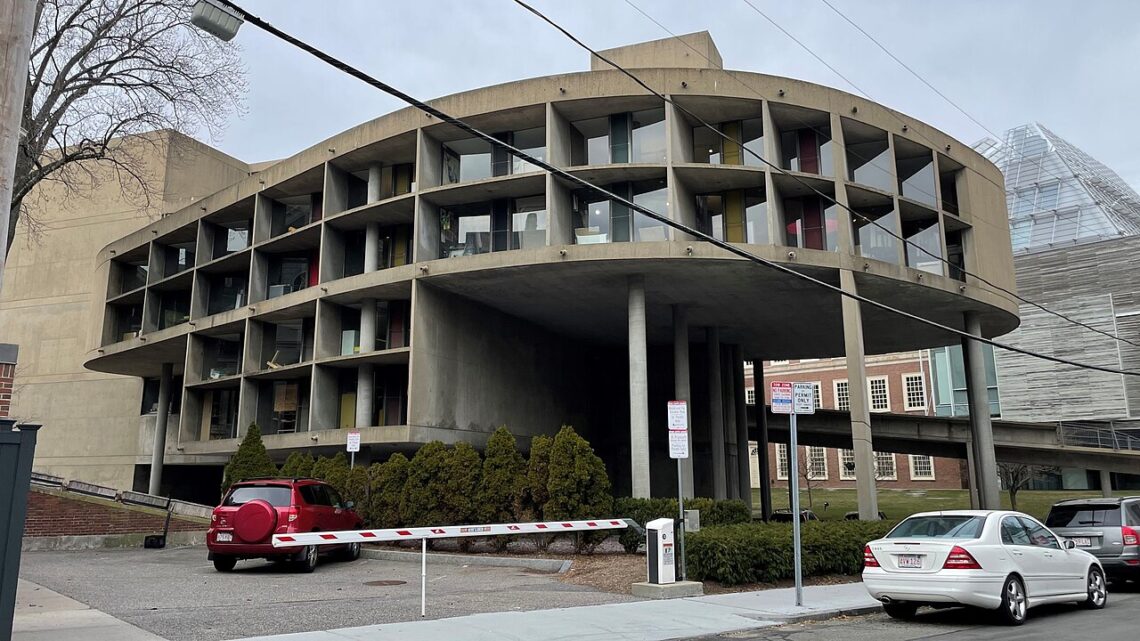

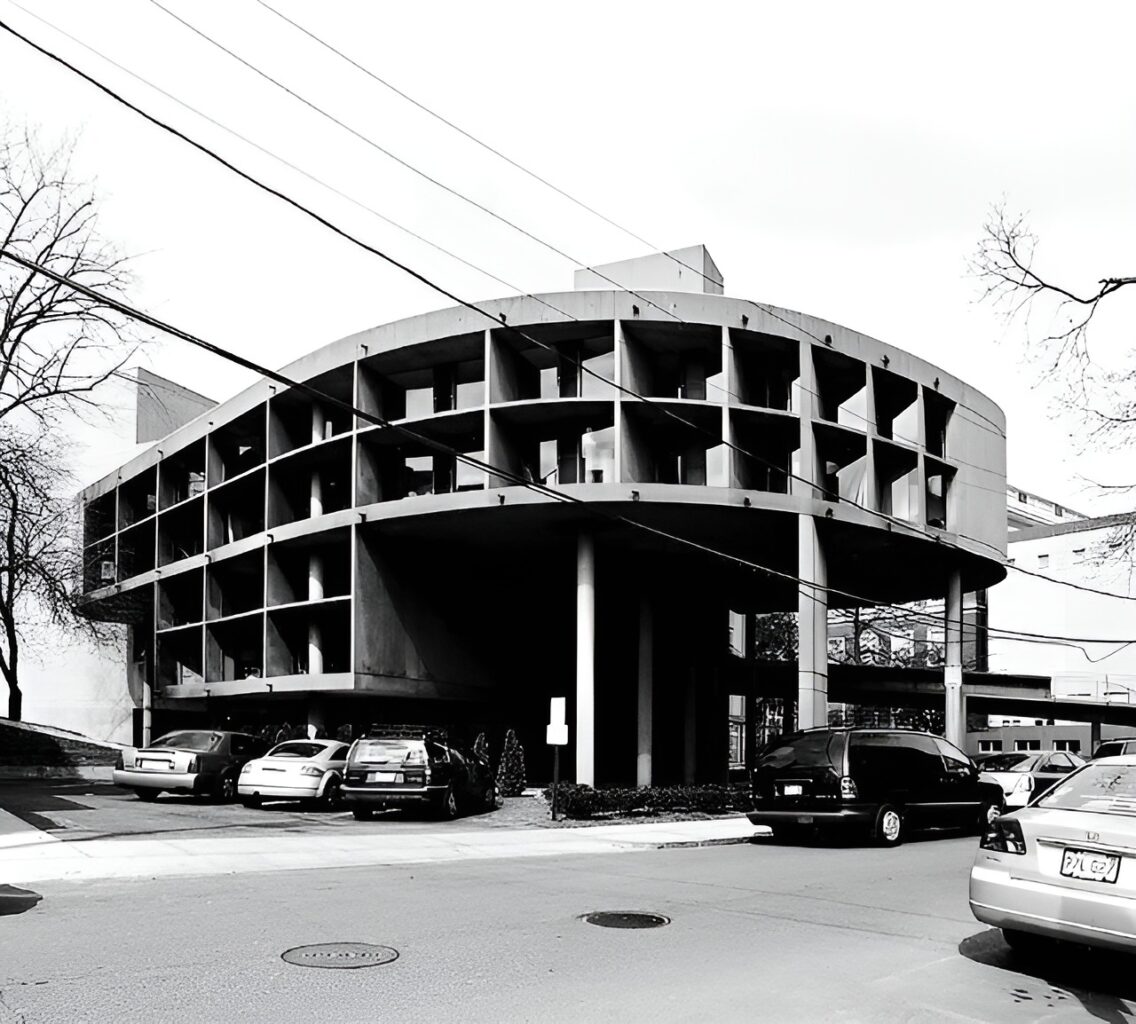

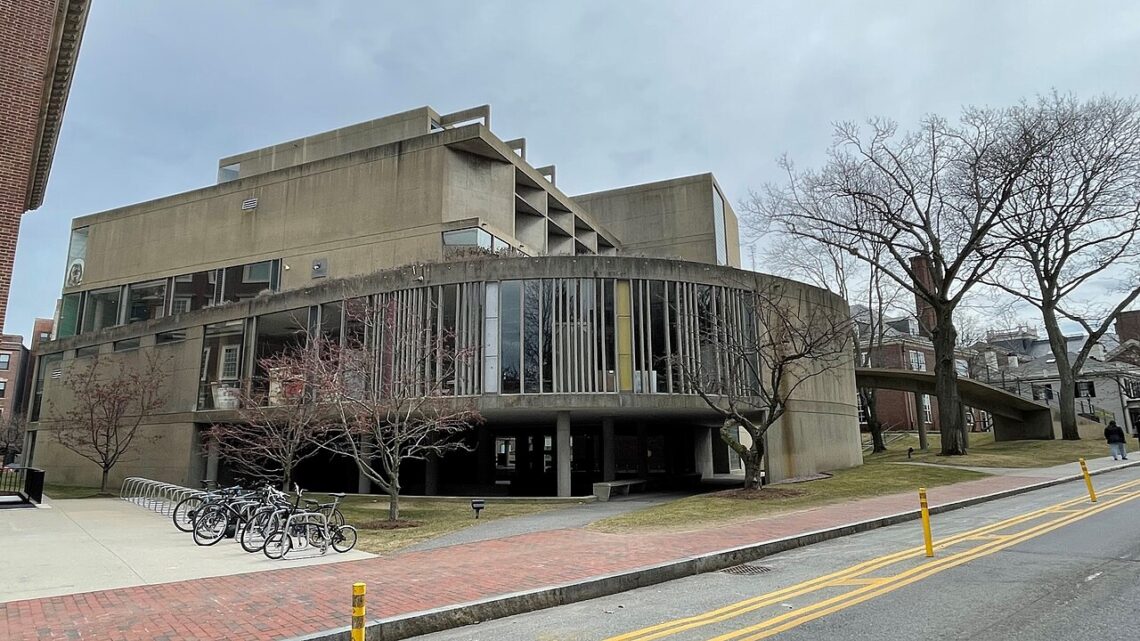

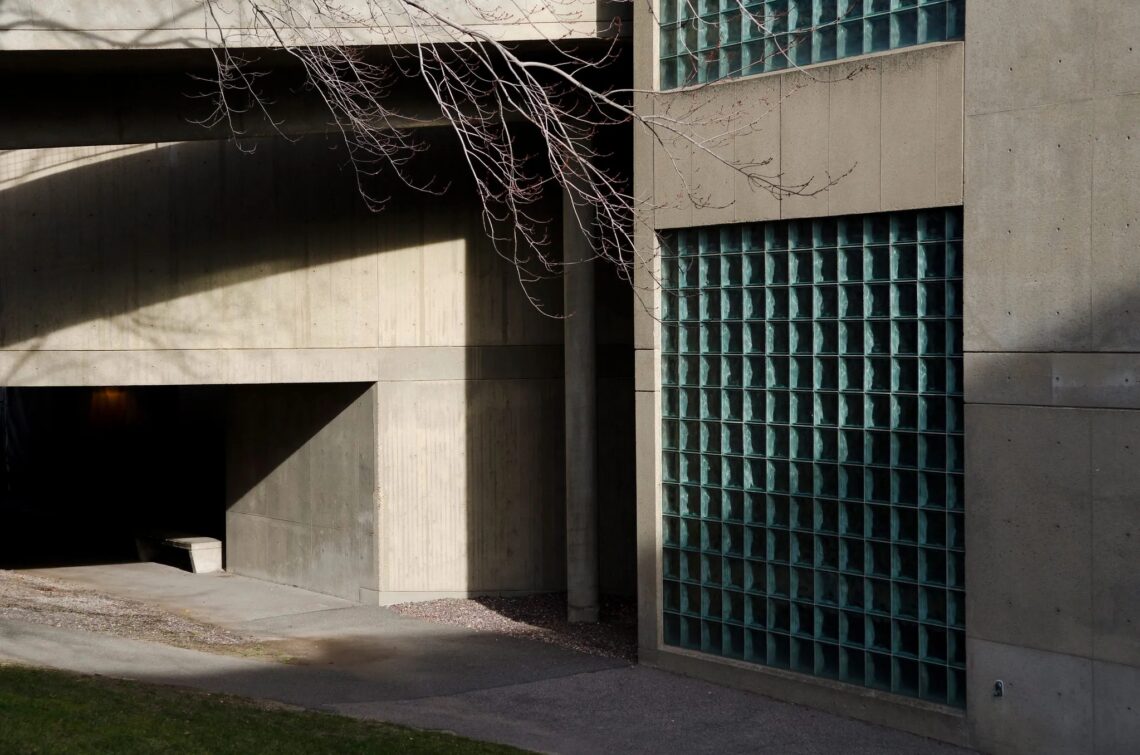

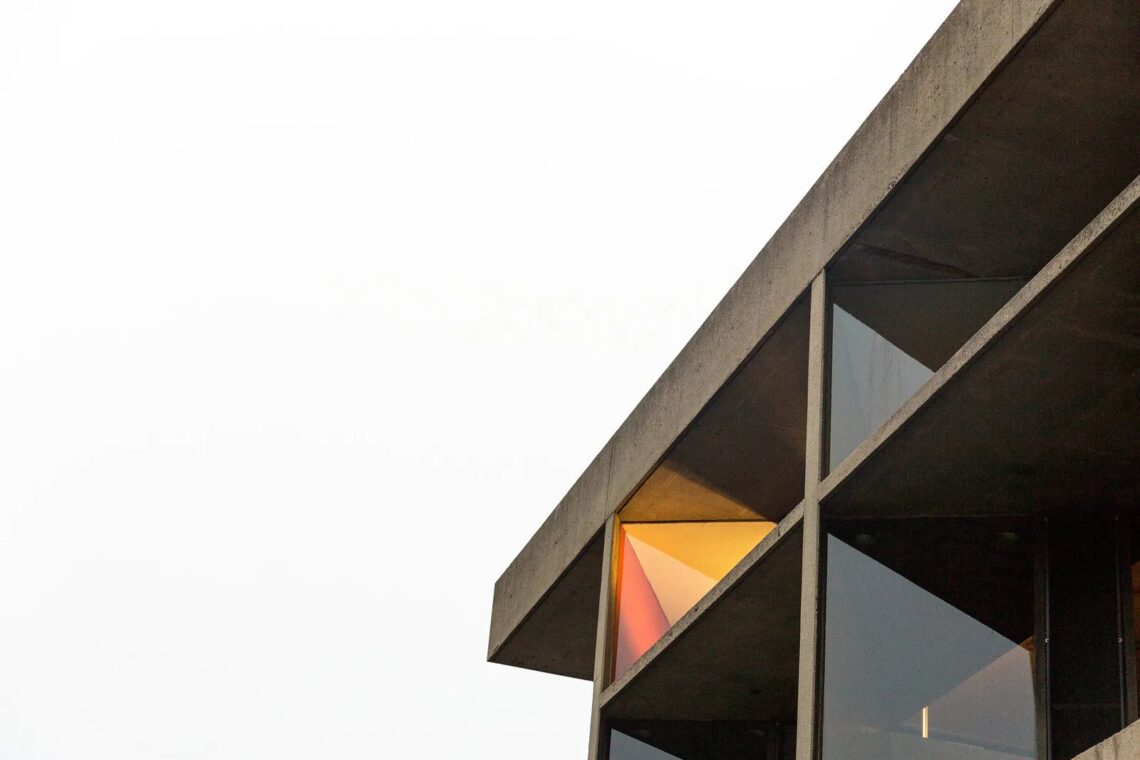

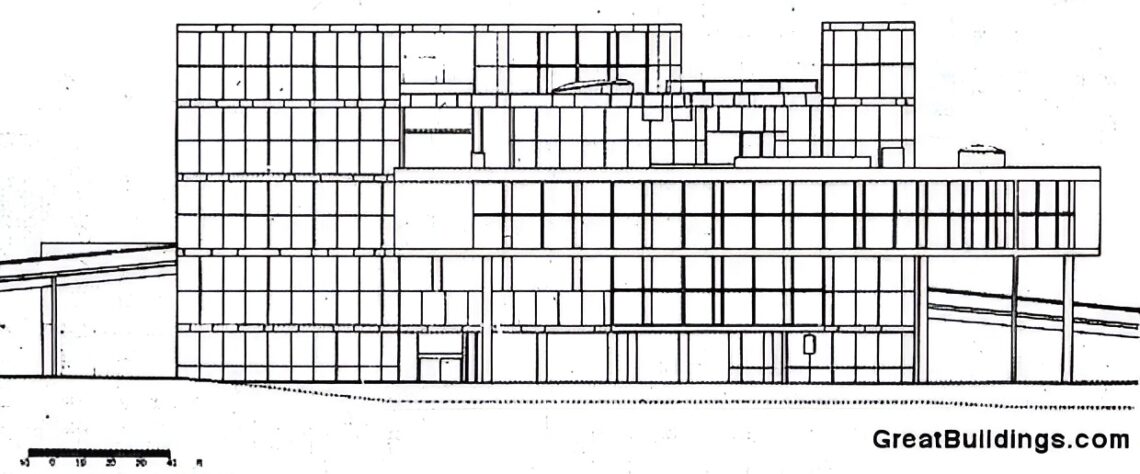

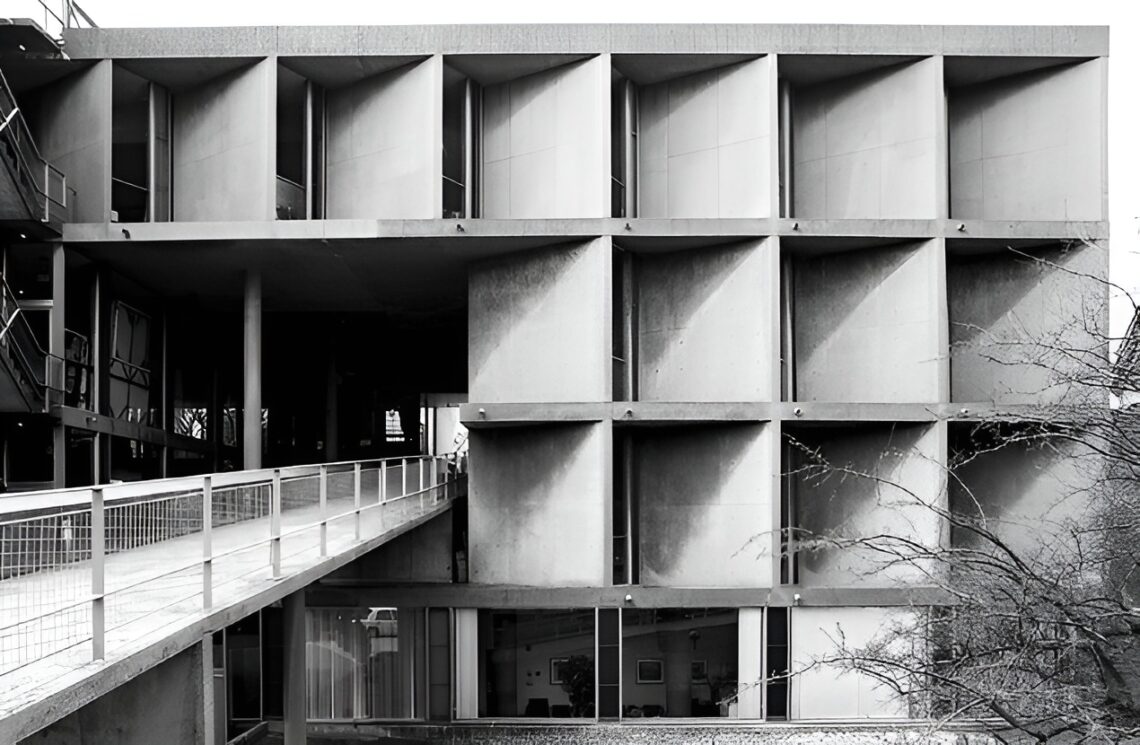

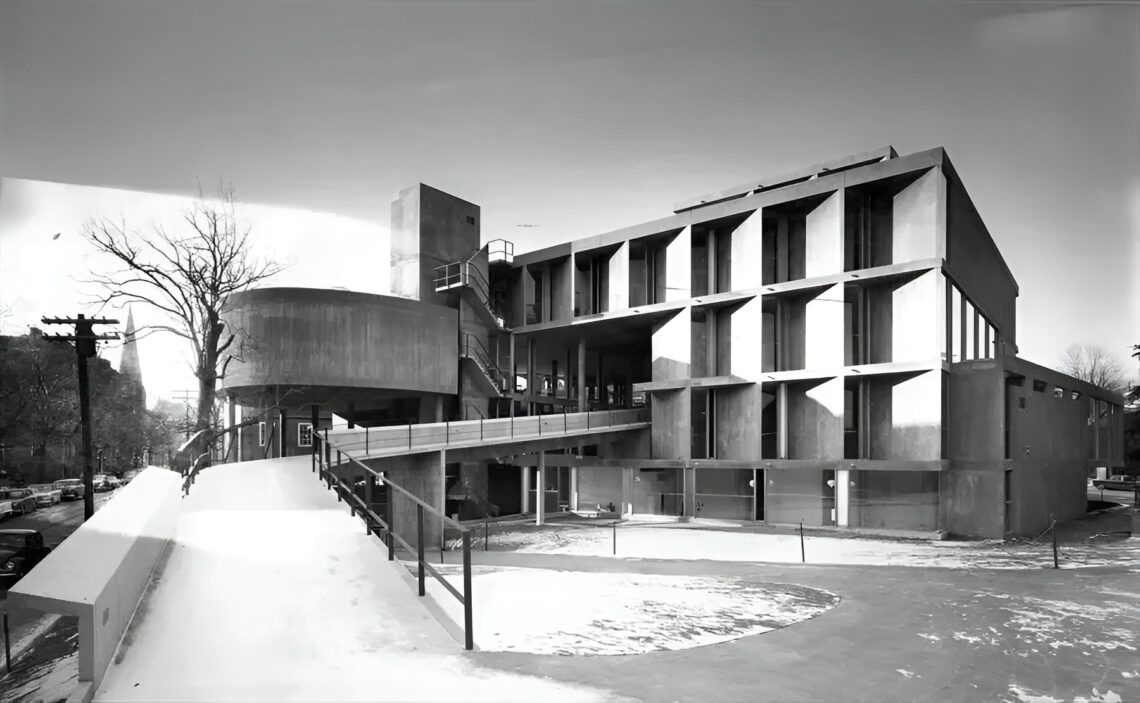

The facade system combines béton brut concrete with glass and sun-shading devices. Brise-soleil appear perpendicular on one elevation, while ondulatoires articulate the curved studio facade on the opposite side, producing varied readings depending on orientation. These elements regulate light and reinforce the building’s geometric composition.

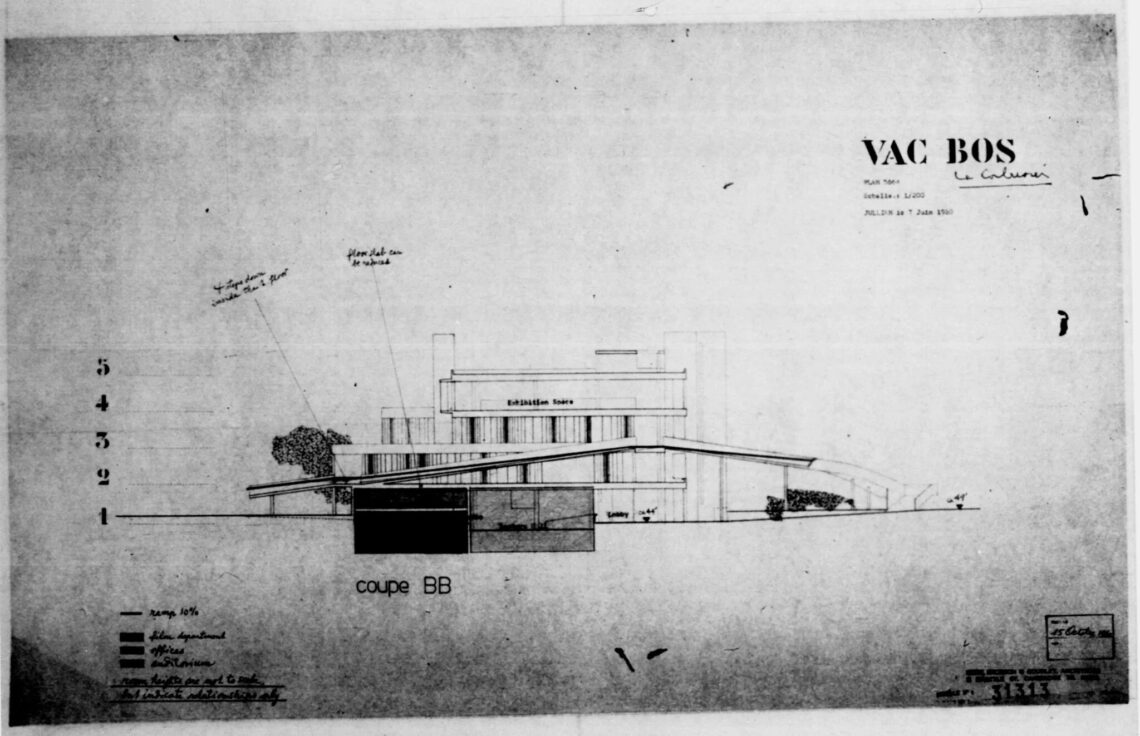

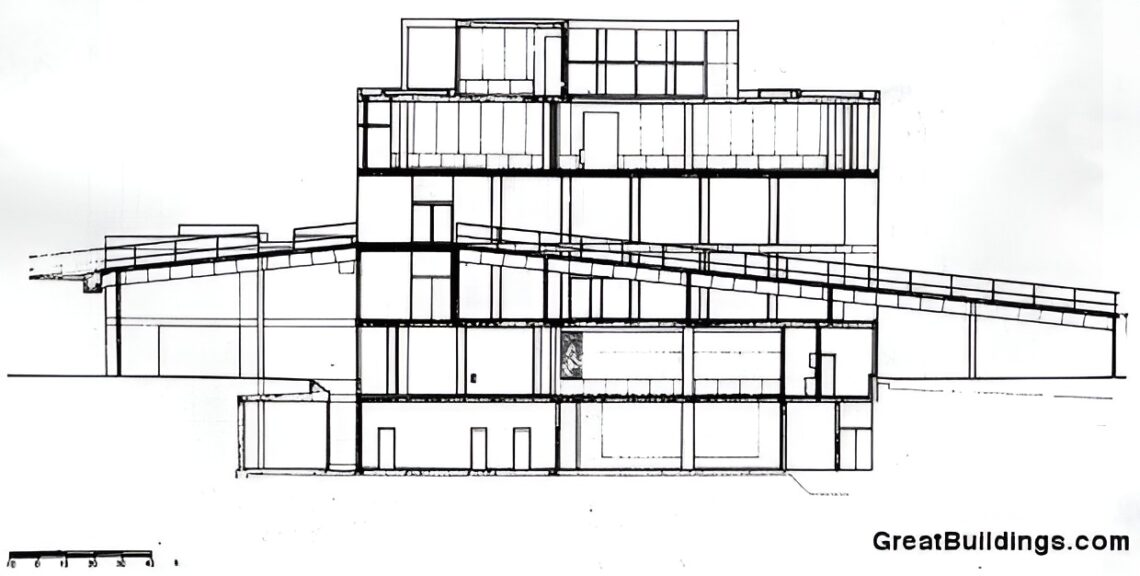

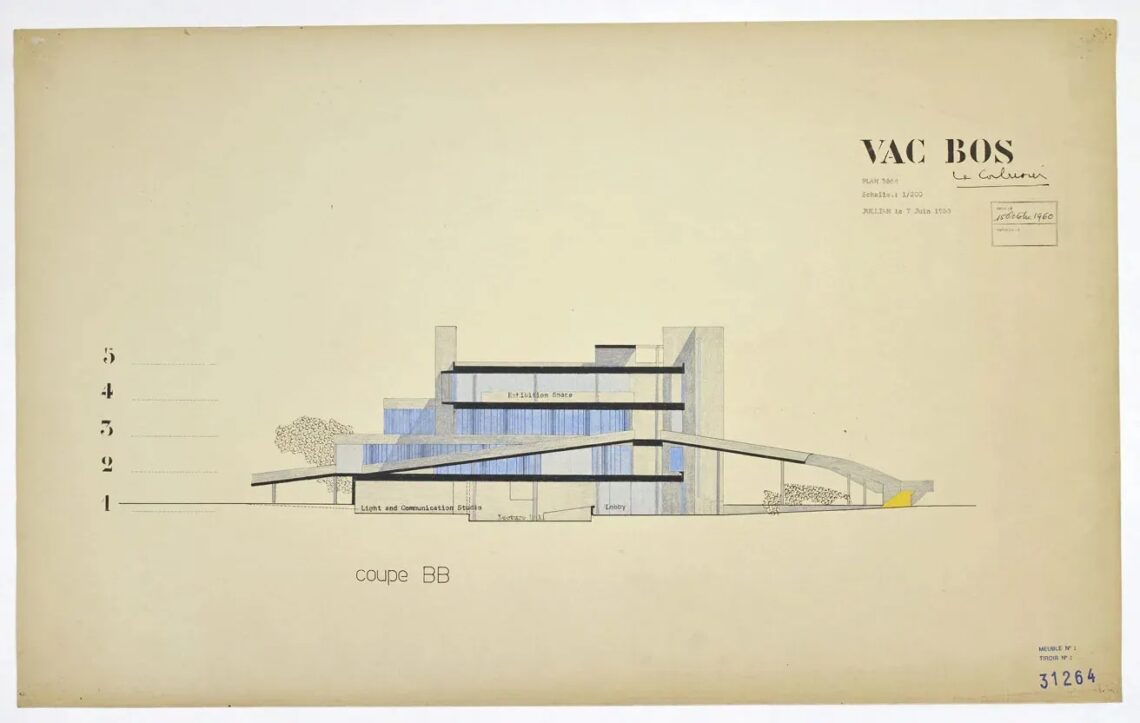

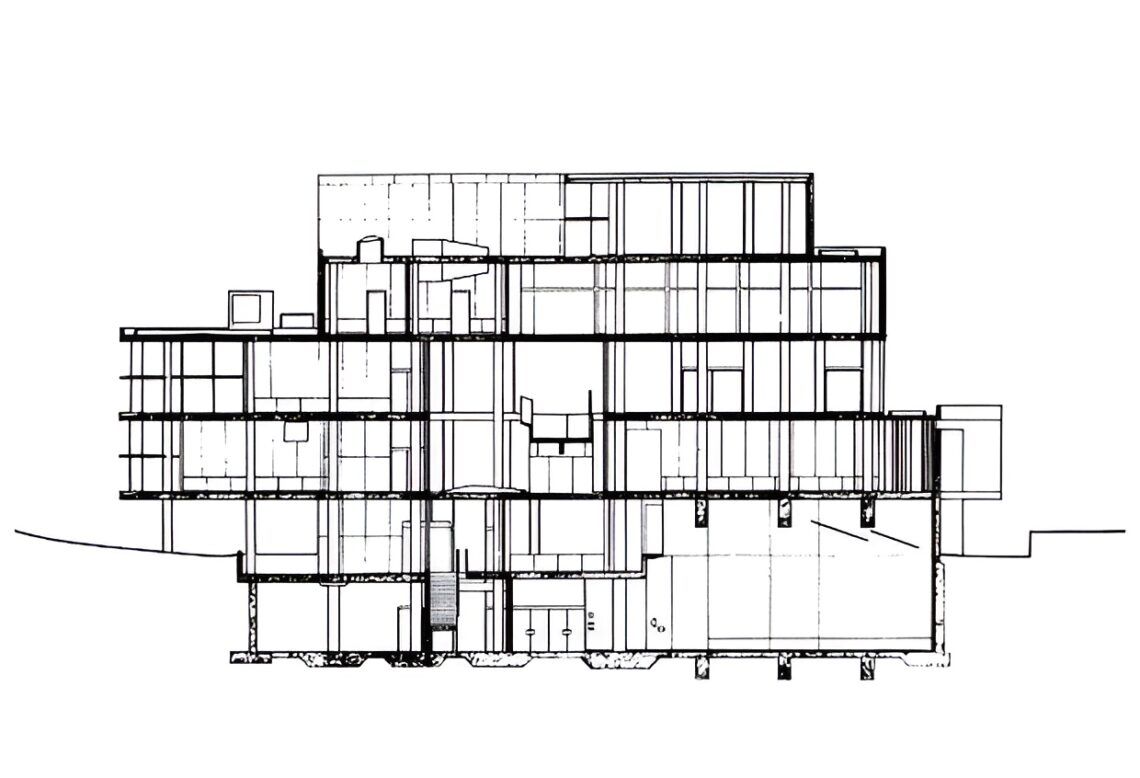

The building operates across five levels, organized by the ramp and central core. The Harvard Film Archive occupies part of the program, housing a major 35mm film collection and extending the building’s use beyond studio practice.
The project consolidates Le Corbusier’s Five Points while extending them through circulation-driven form and program integration. The ramp functions as both infrastructure and spatial device, while the structural system and facade respond to light, movement, and context. The building was later listed on the National Register of Historic Places in 1978 and remains an active academic and cultural facility.
Project Gallery
Project Location
Address: 24 Quincy Street, Cambridge, Massachusetts 02138, United States
