Architects: Toyo Ito & Associates, Architects
Area: 21,682 m² (233,382 ft²)
Year: 2001
Photography: Toyo Ito & Associates, Architects, Nacasa & Partners Inc., Tomio Ohashi, Rasmus Hjortshøj – COAST, Iwan Baan, Wikimedia Commons, yisris / Yuichi, scarletgreen
City: Sendai
Country: Japan
Sendai Mediatheque cultural center, designed by Toyo Ito in Sendai, has redefined the relationship between structure, media, and public space through a system that integrates plates, tubes, and skin into a continuous spatial field. The project organizes a multi-program institution within a transparent volume where floors appear to float, supported by a network of thirteen vertical tubes that combine structural, environmental, and circulation functions. The Sendai Mediatheque dissolves conventional boundaries between library, gallery, and urban space by extending the city into the building through an open ground level and flexible upper floors. The Sendai Mediatheque establishes a new architectural model that responds to evolving media and information systems, allowing spatial variation rather than uniformity across its seven levels. The Sendai Mediatheque integrates environmental performance and structural innovation through steel-ribbed slabs and a responsive façade system that mediates light and climate. The Sendai Mediatheque frames human activity as dynamic and adaptable, where movement, light, and program interact across vertical and horizontal layers. The Sendai Mediatheque remains a critical work in contemporary architecture, where abstraction, technology, and urban life converge into a unified spatial concept.

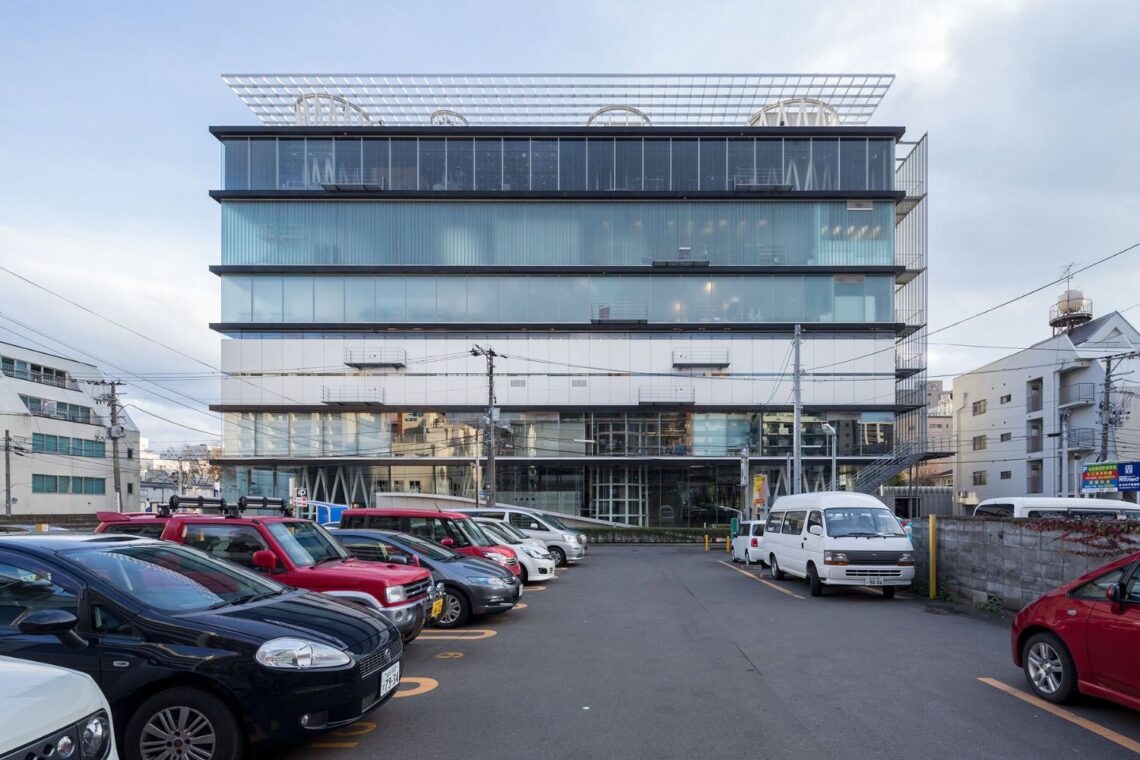

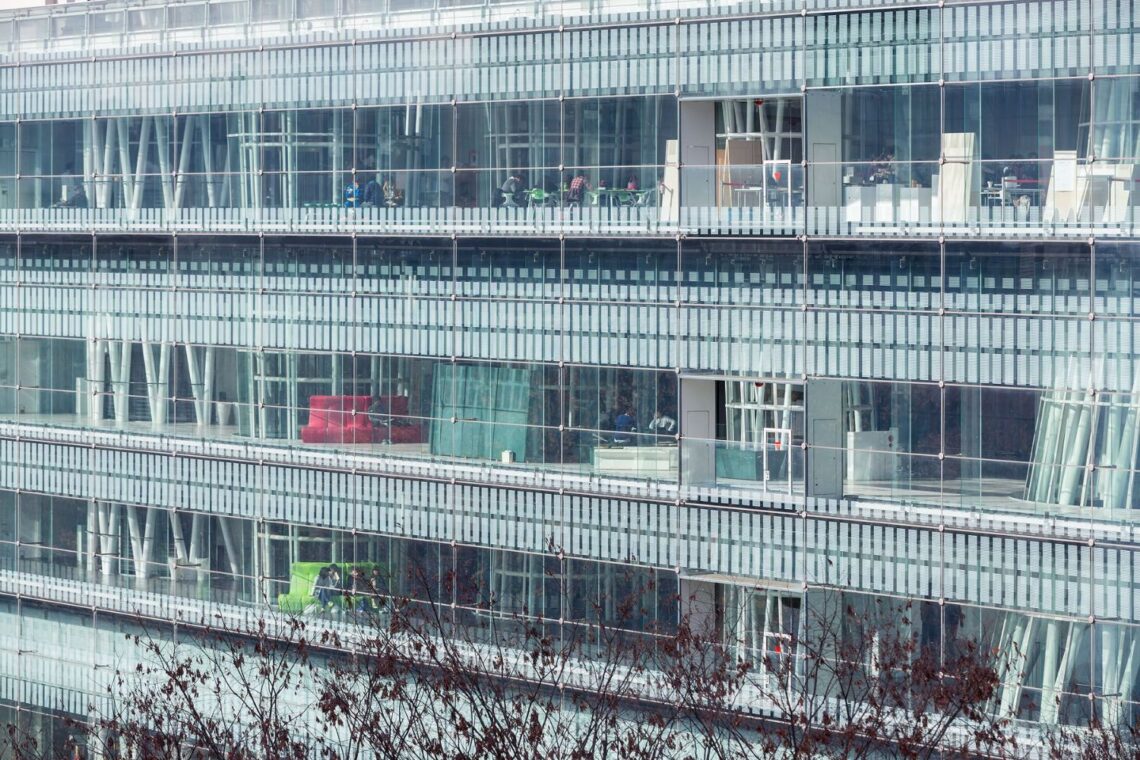

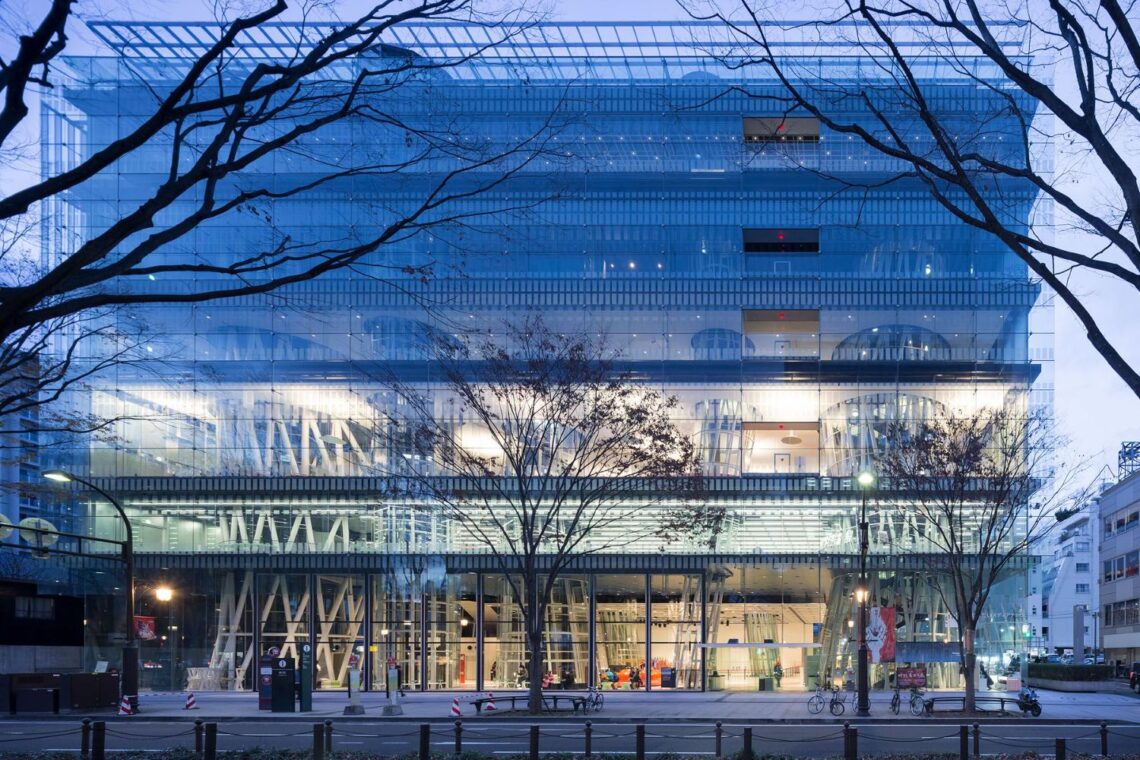

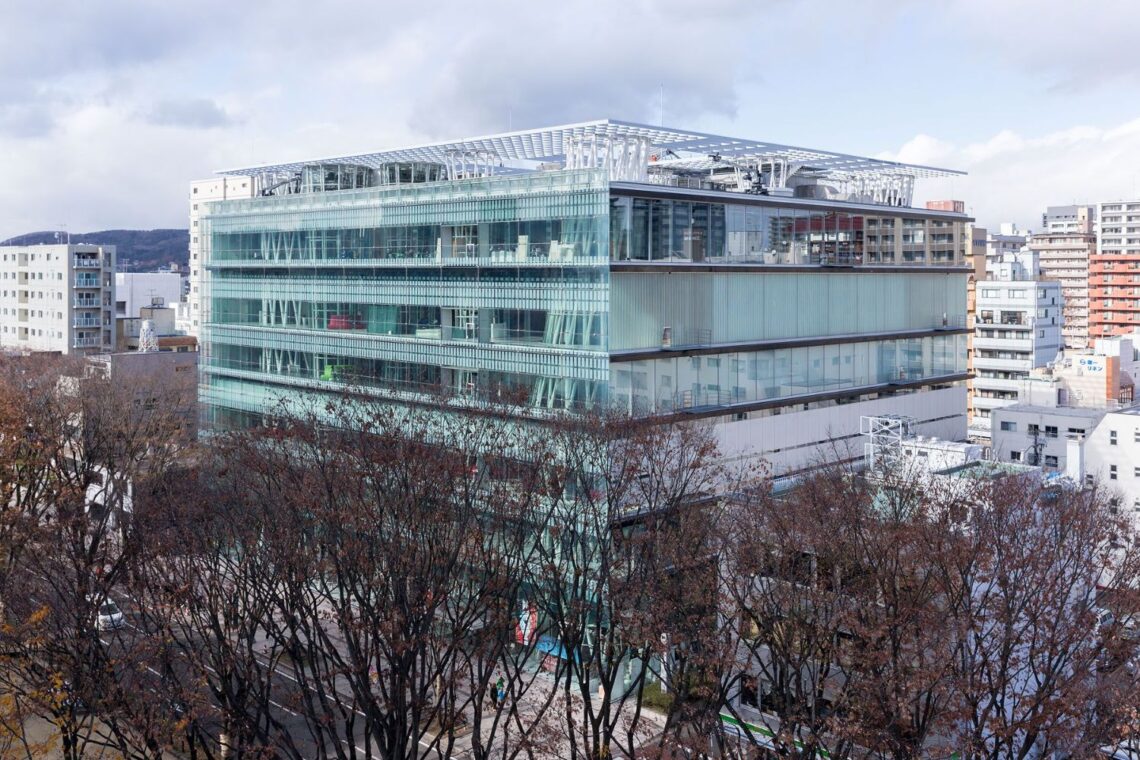

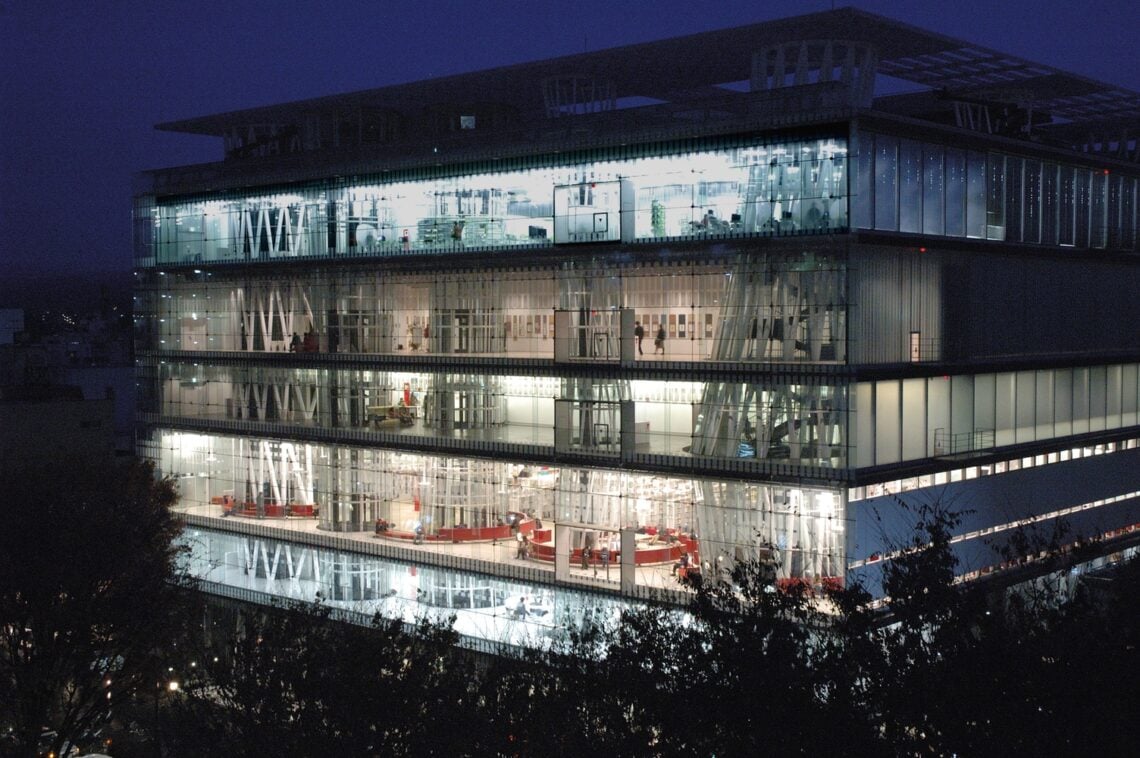

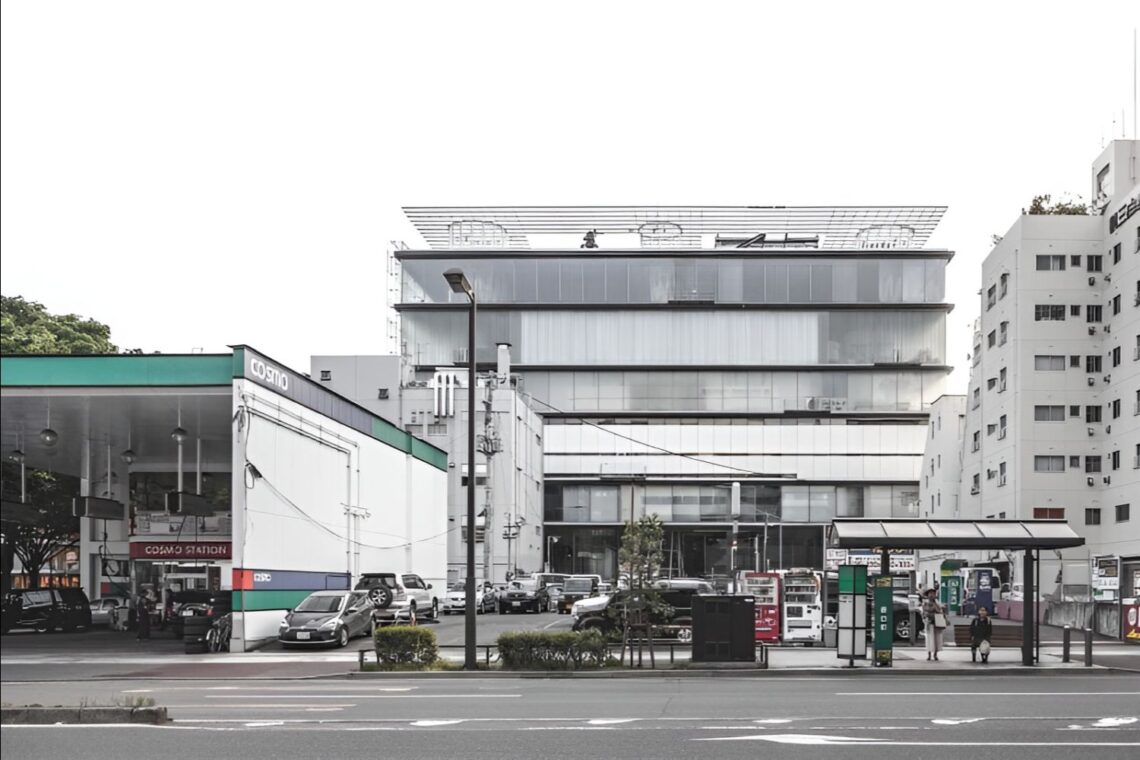

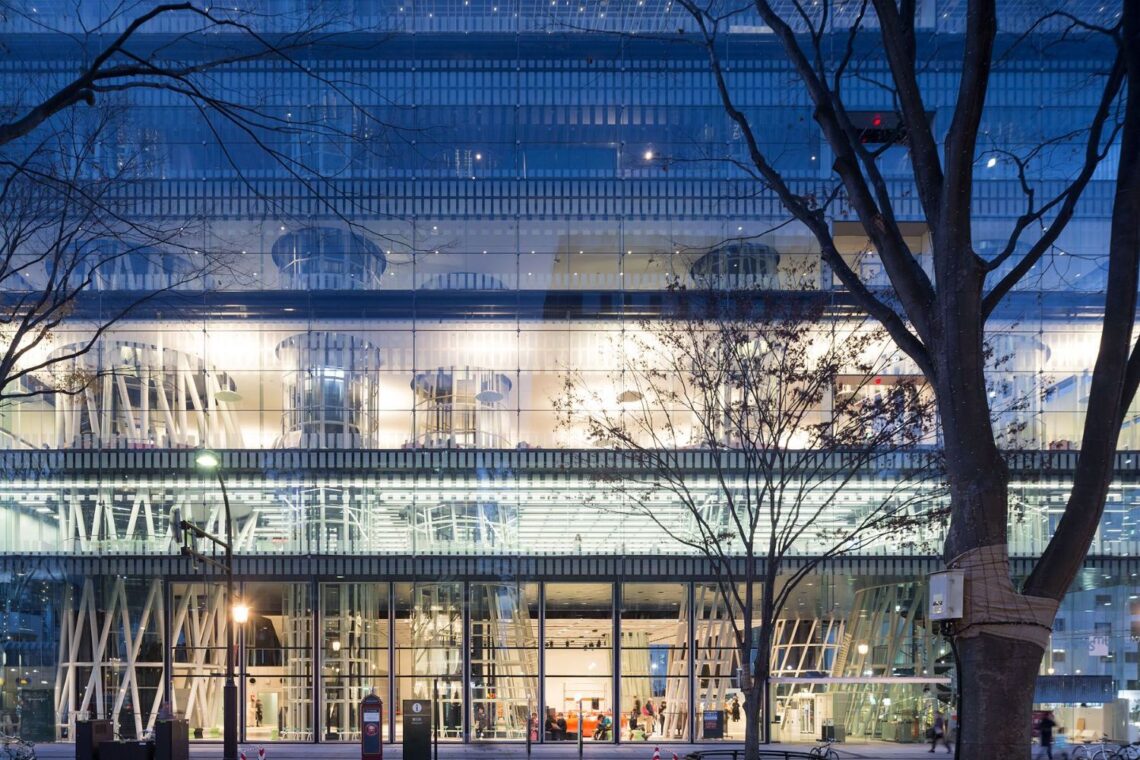

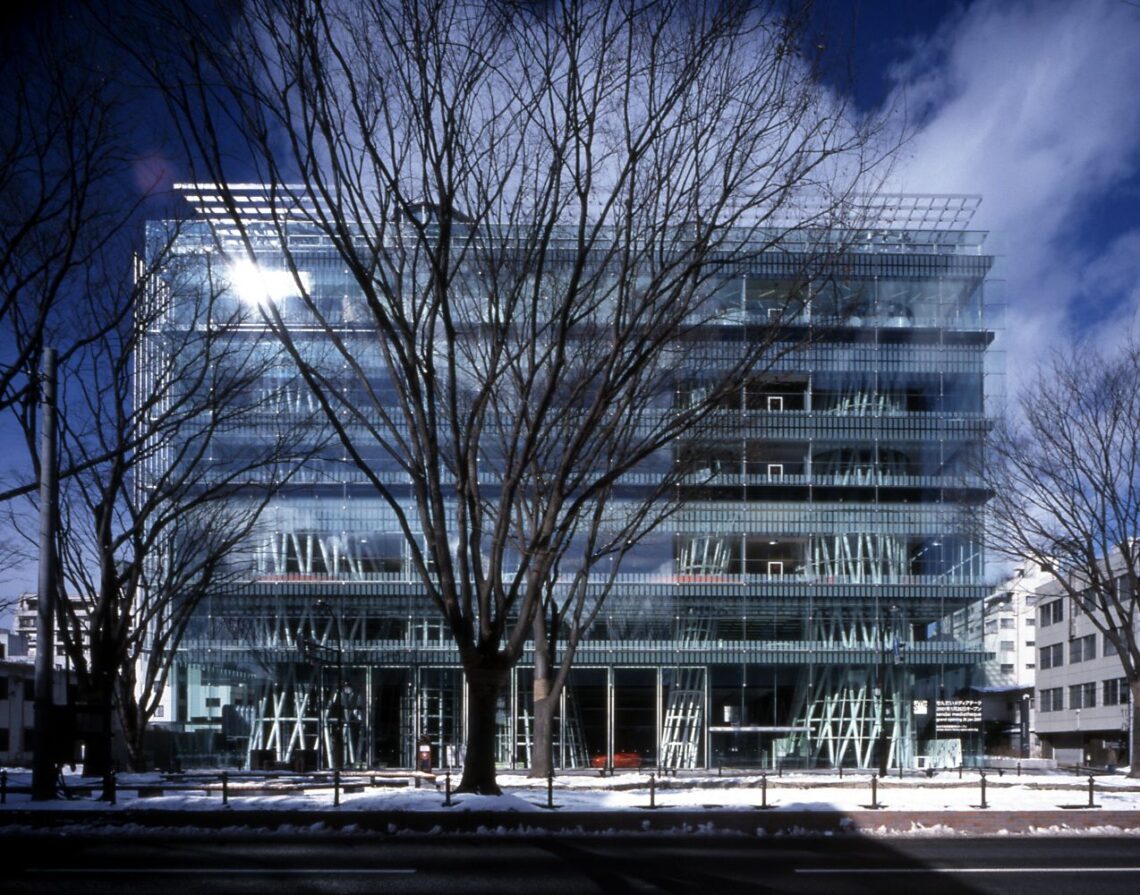

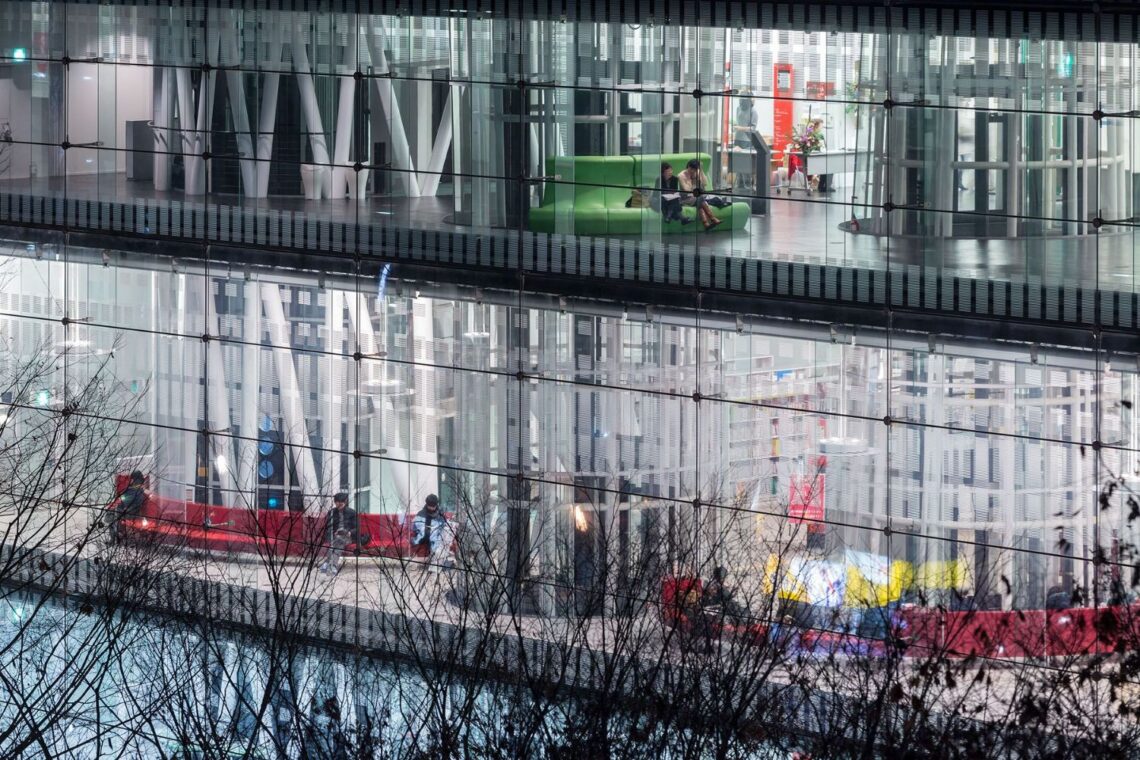

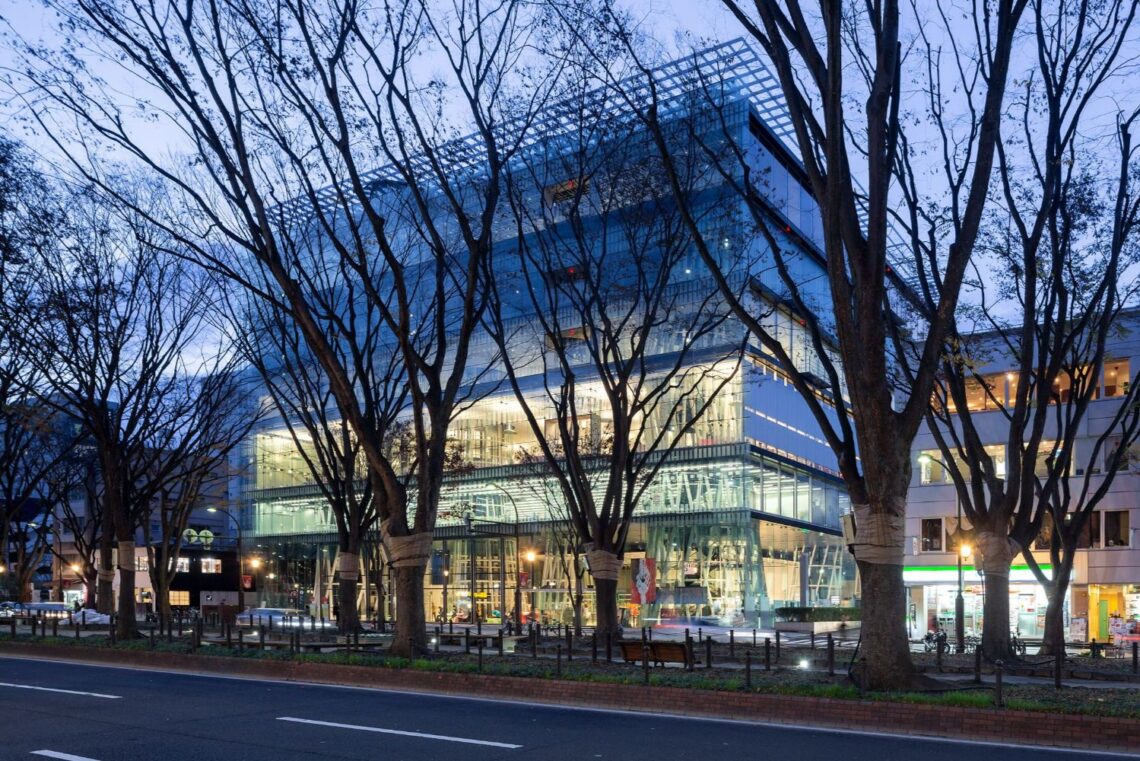

Sendai Mediatheque stands in central Sendai along Jozenji Street, occupying a prominent urban site defined by tree-lined boulevards and civic buildings. The building establishes a transparent interface with the city through a glass enclosure that reflects its surroundings during the day and transforms into an illuminated volume at night.
The project originated from a 1995 competition won by Toyo Ito and was completed in 2001. The design responds to emerging media culture by proposing a new institutional type that merges library, gallery, and information center into a single system. The building accommodates diverse programs, including reading spaces, exhibition galleries, a cinema, and public amenities.

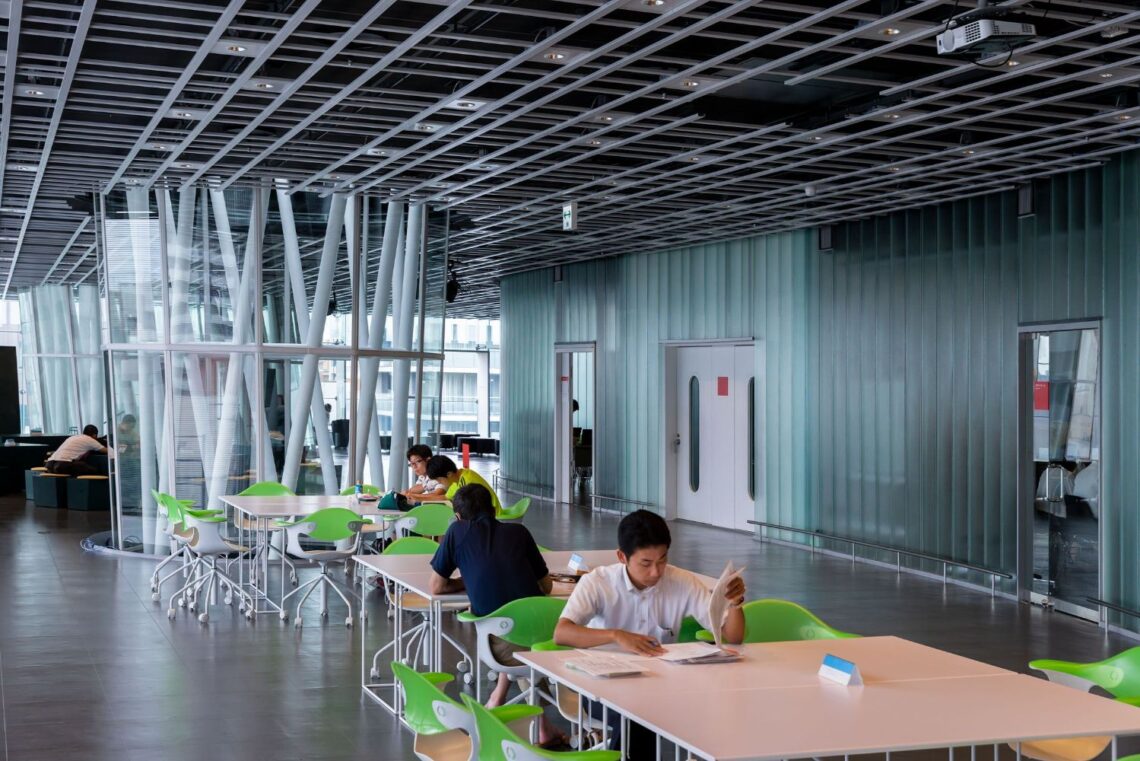

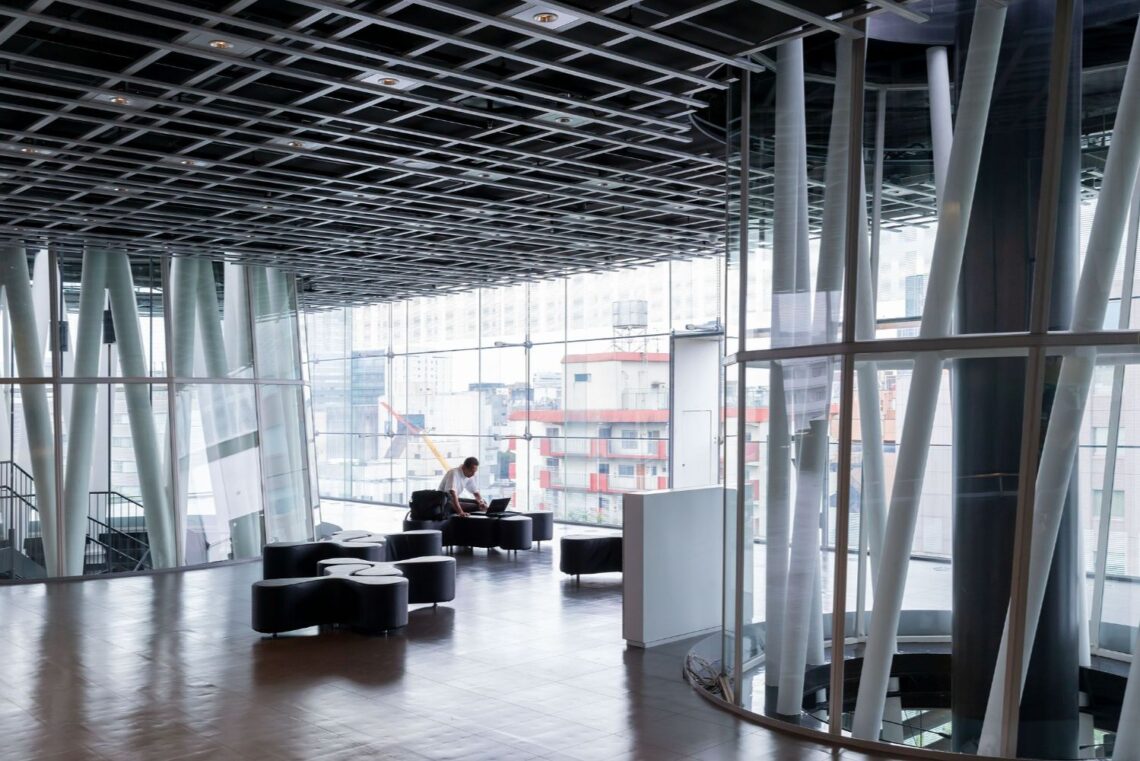

The structure is organized through three primary elements: plates, tubes, and skin. The plates consist of thin steel-ribbed slabs formed by a honeycomb system filled with lightweight concrete, allowing large spans without beams. These horizontal layers appear suspended, reinforcing openness and continuity across each floor.

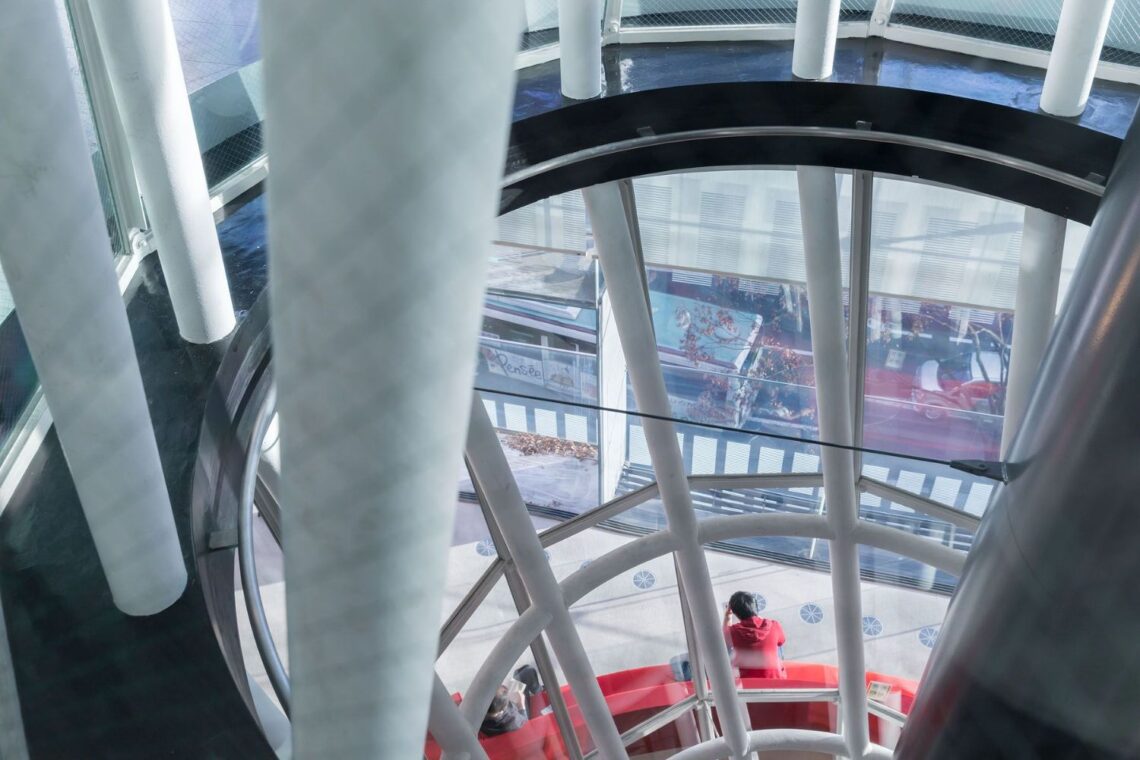

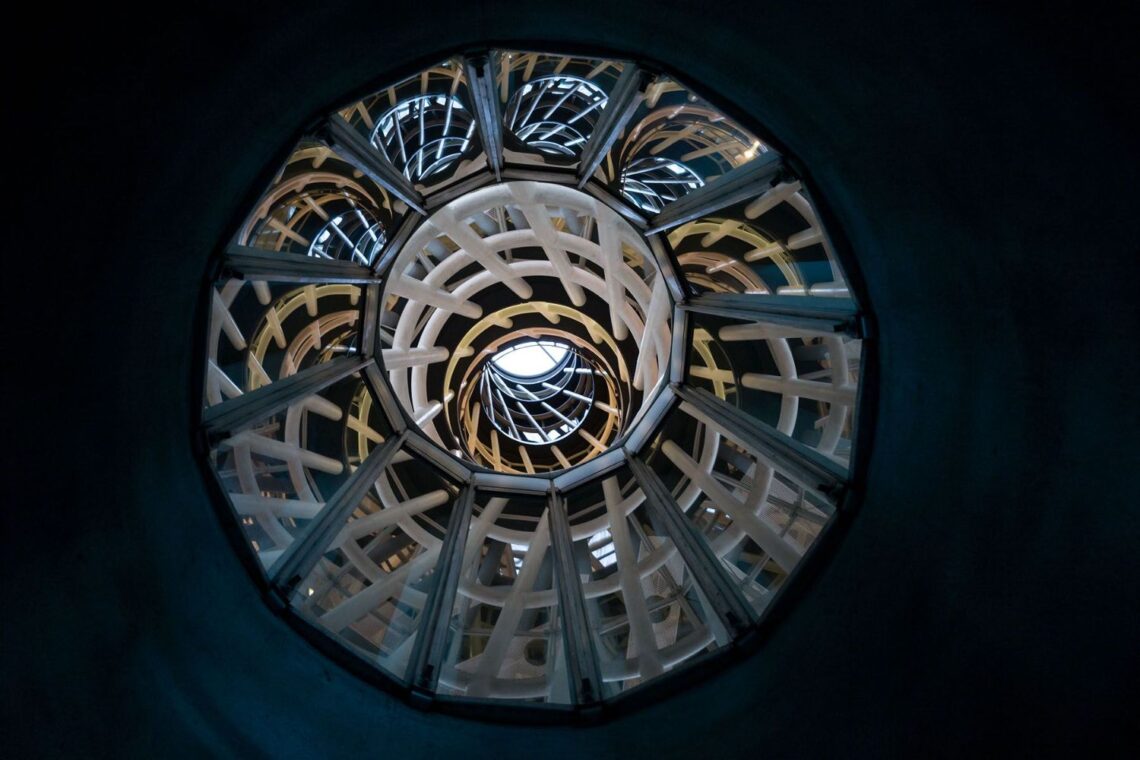

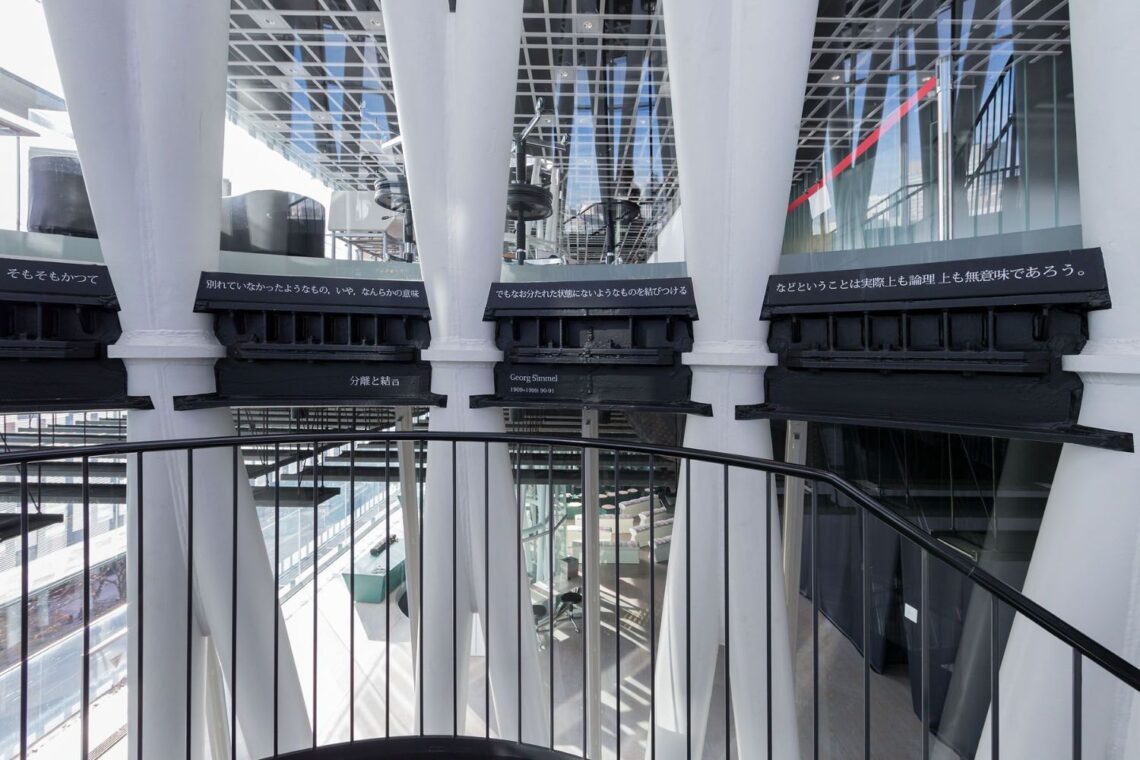

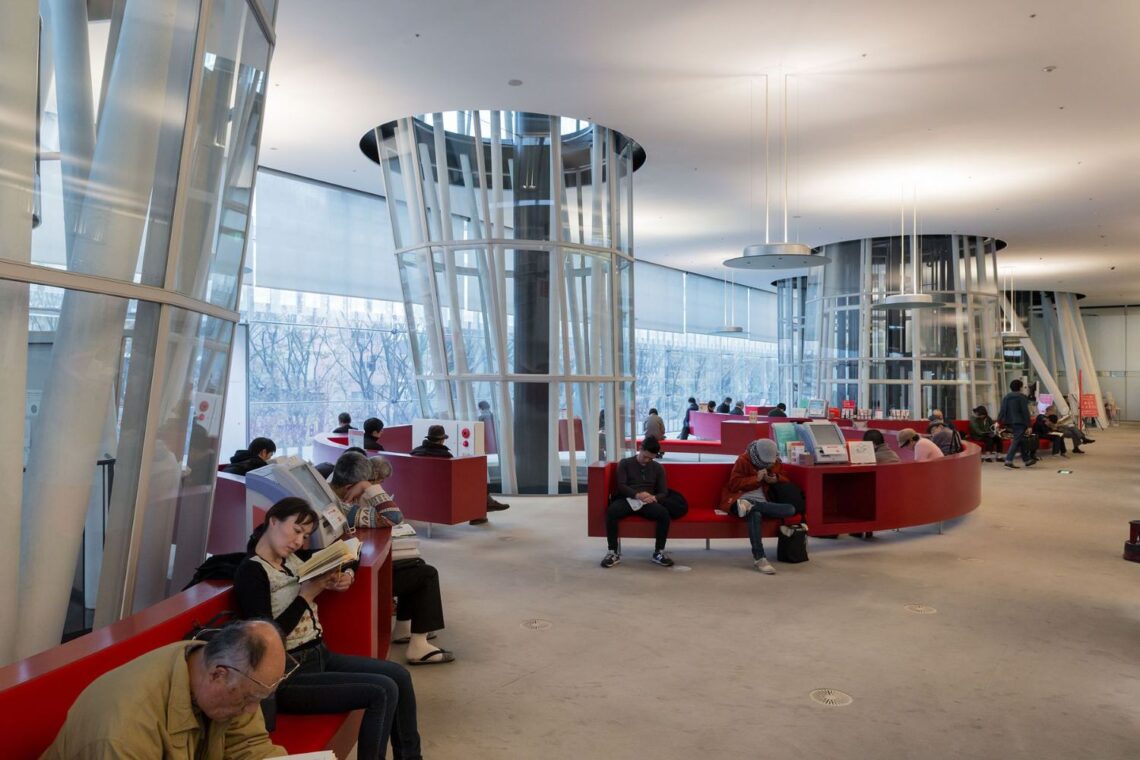

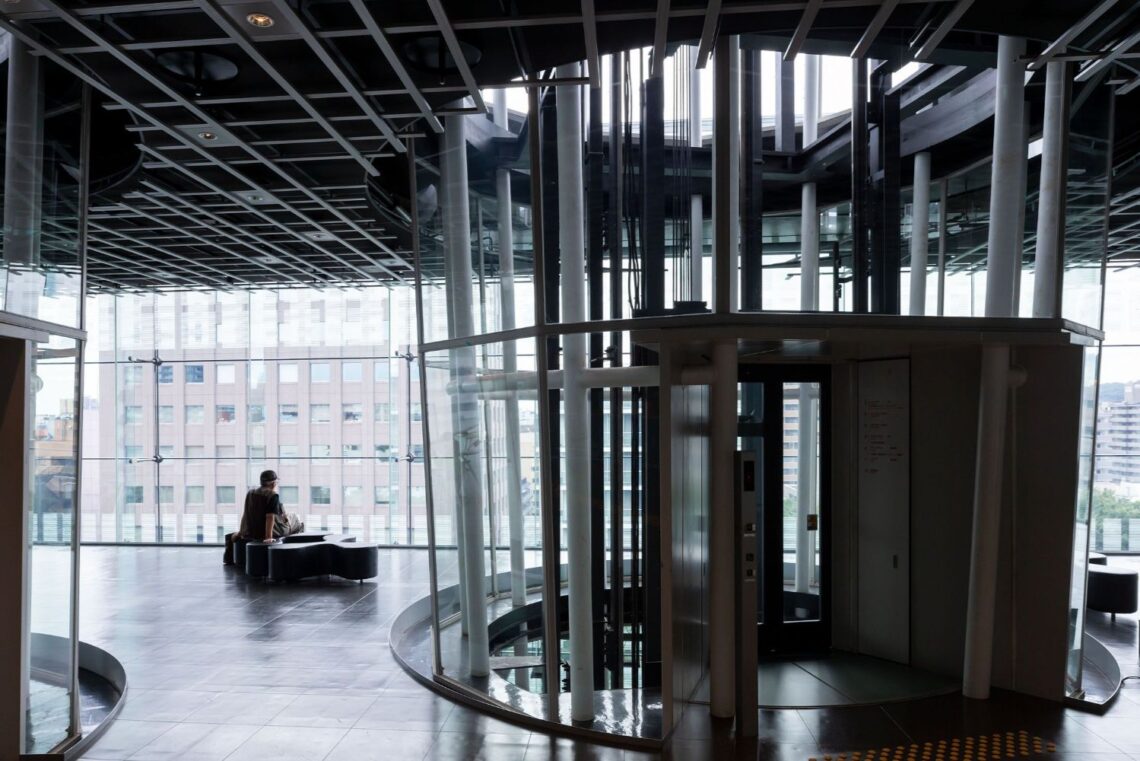

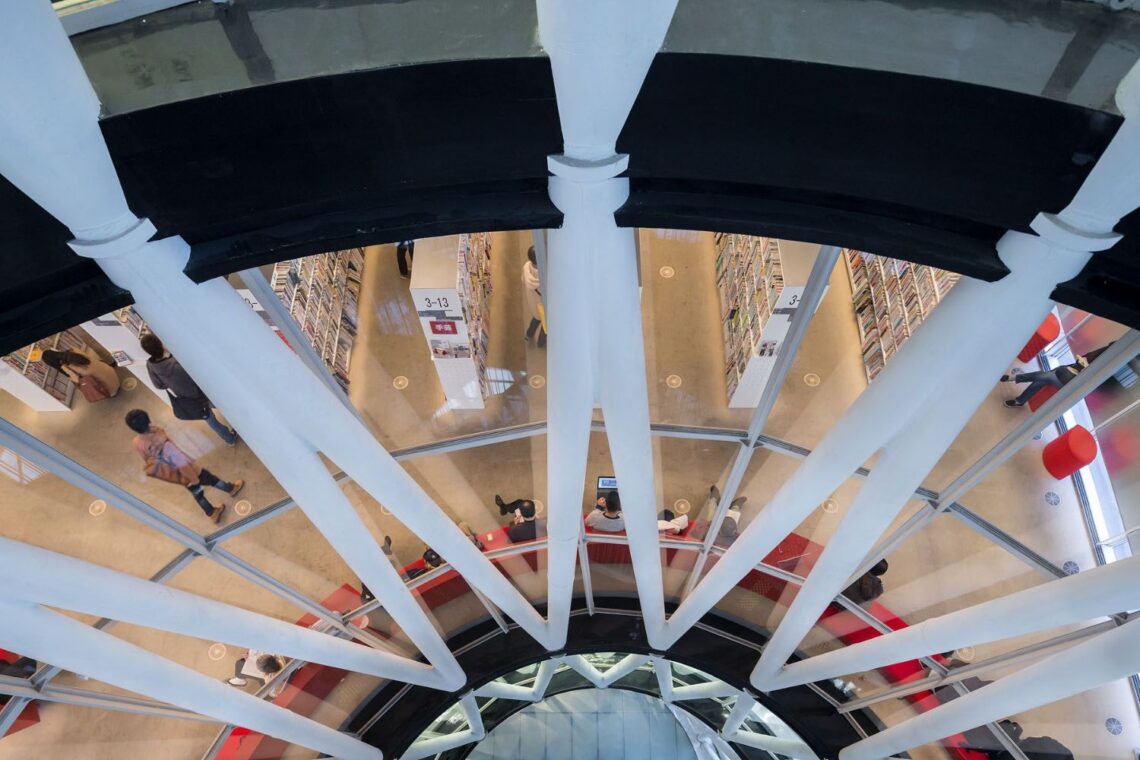

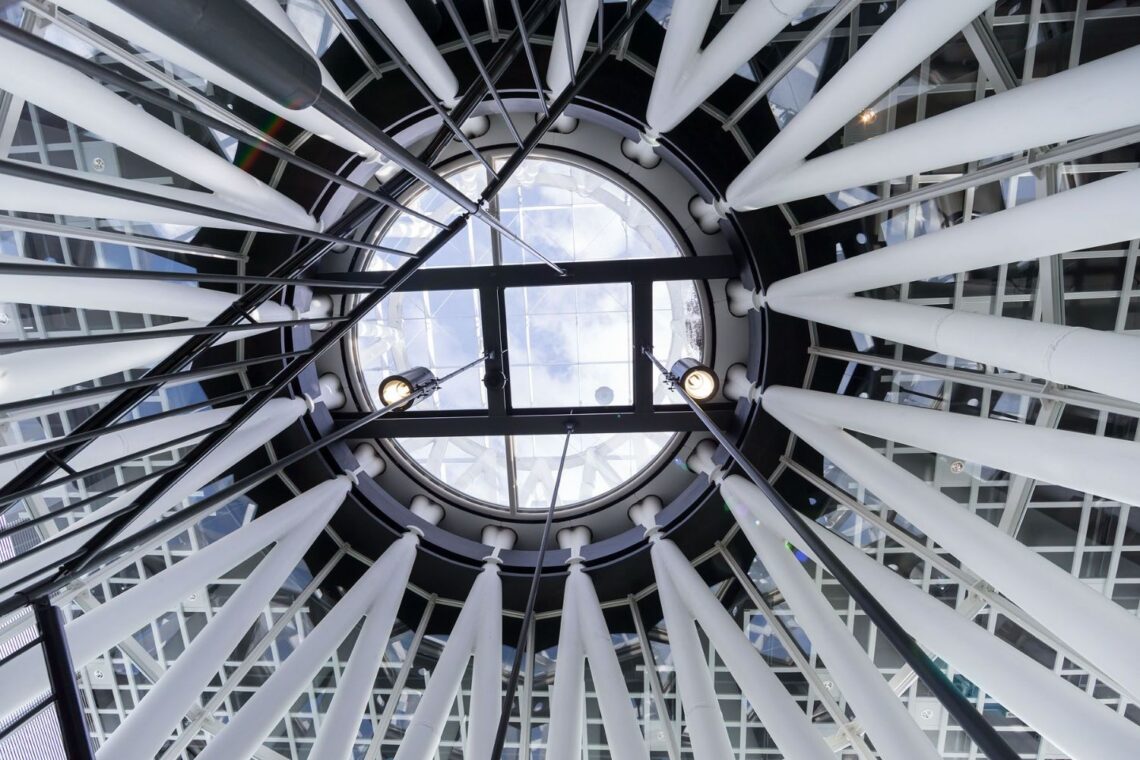

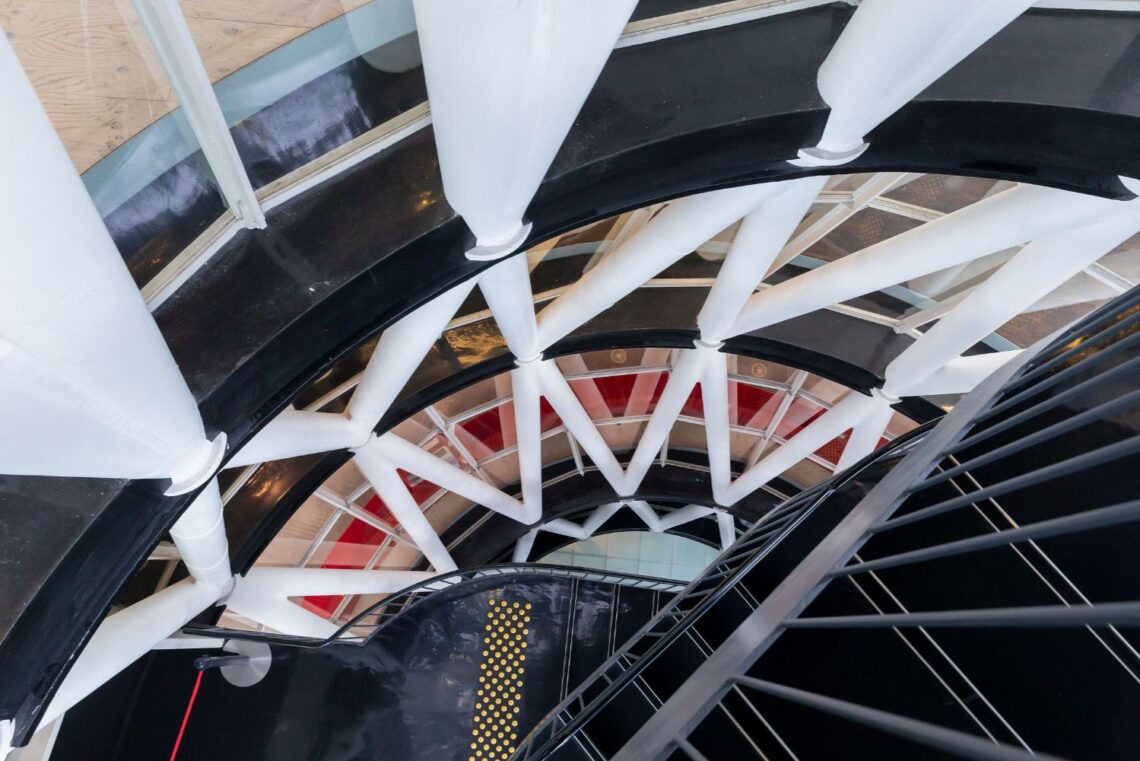

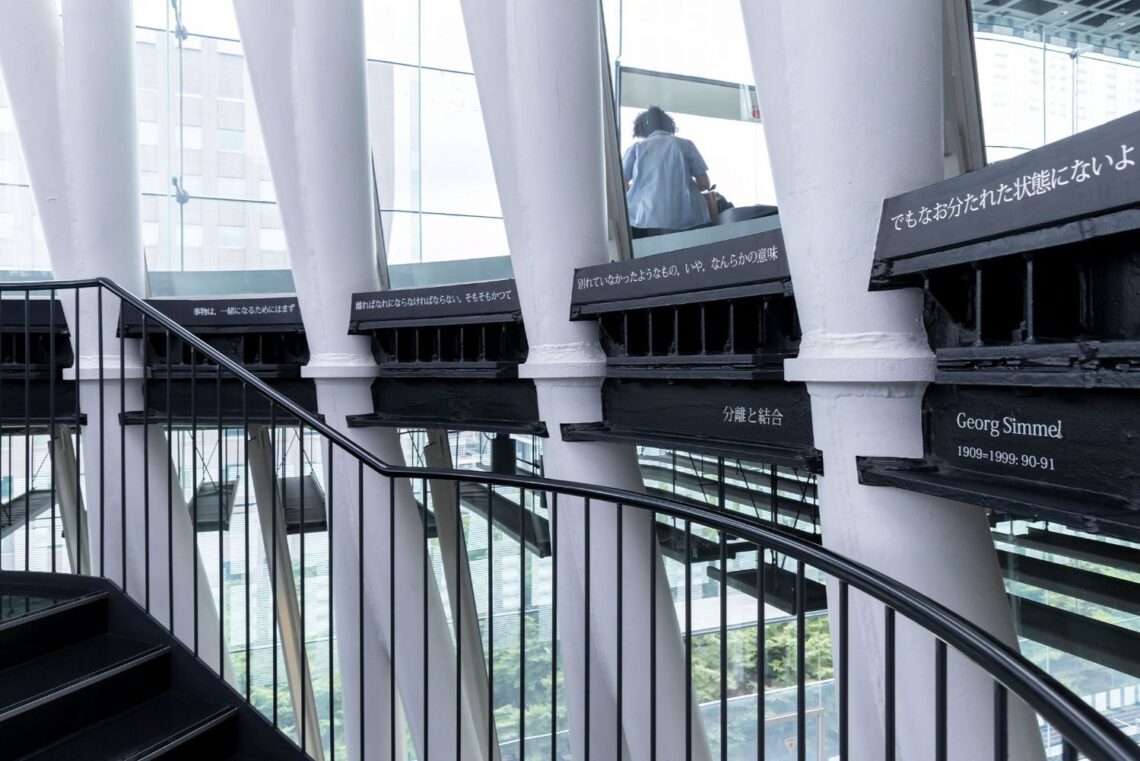

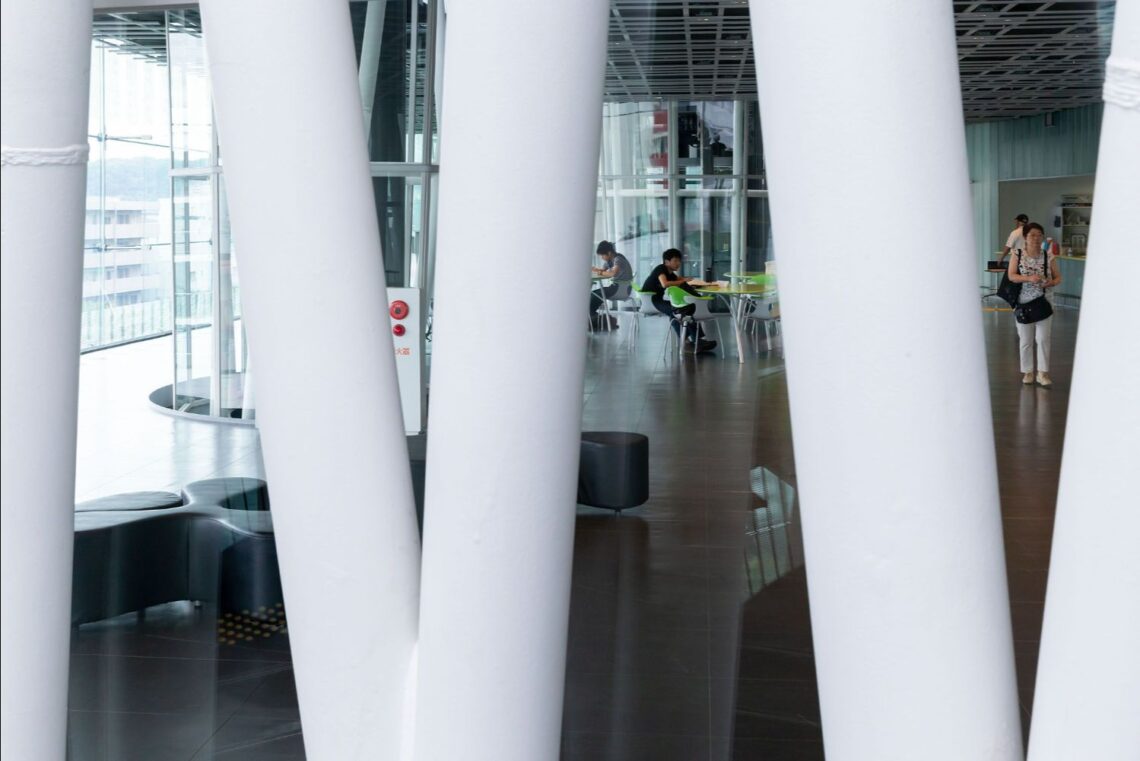

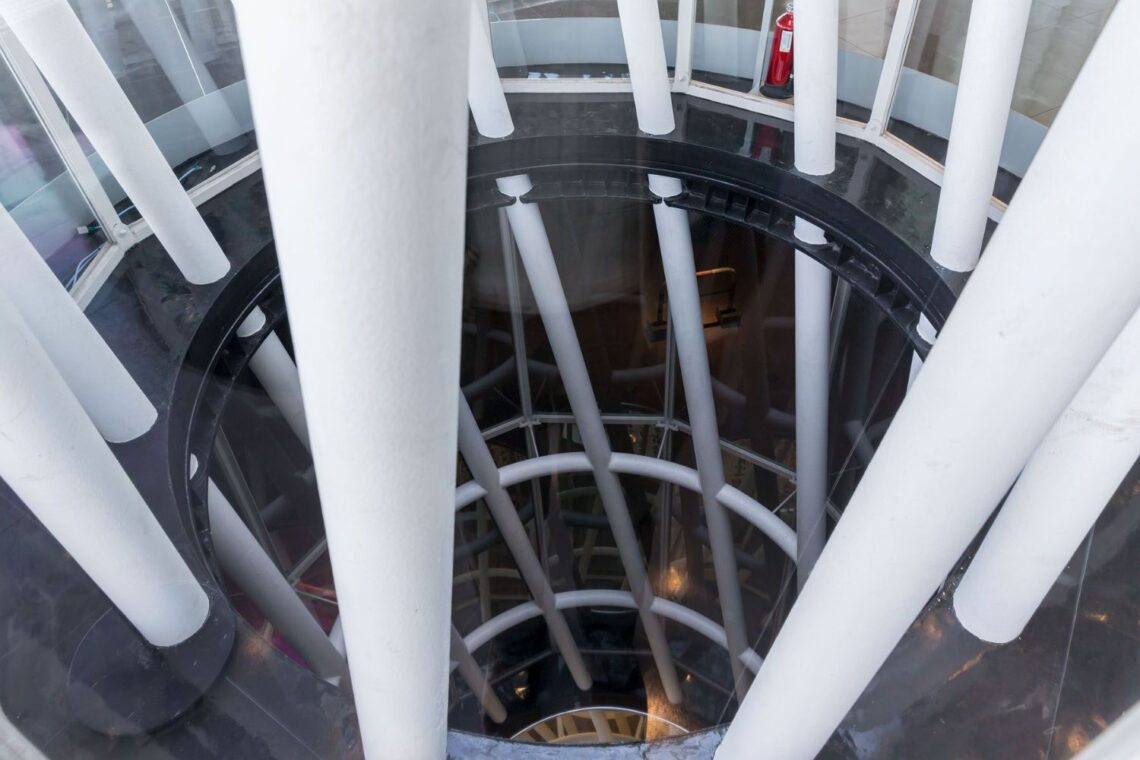

Vertical organization is defined by thirteen non-uniform tubes that extend from ground to roof. These elements vary in diameter and geometry according to structural and programmatic requirements. Four primary tubes at the perimeter provide structural stability and seismic resistance, while smaller tubes accommodate elevators, stairs, and service systems. The tubes integrate air, water, electricity, light, and movement, functioning as both infrastructure and spatial elements.

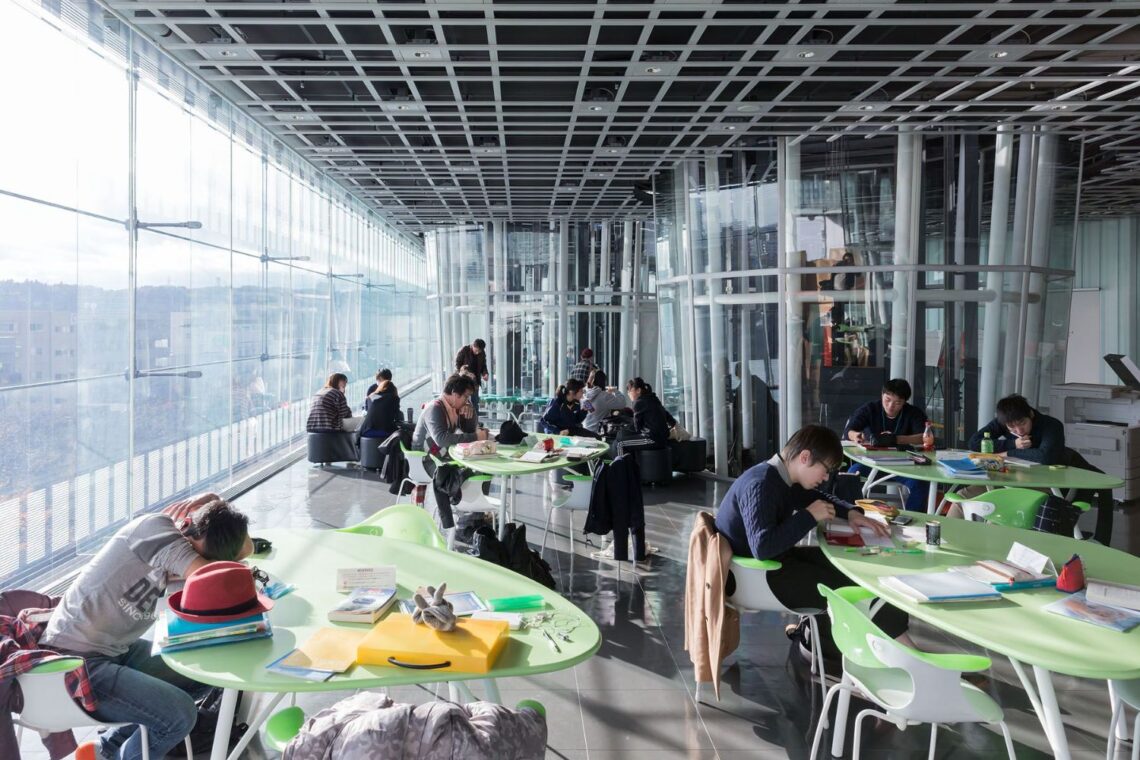

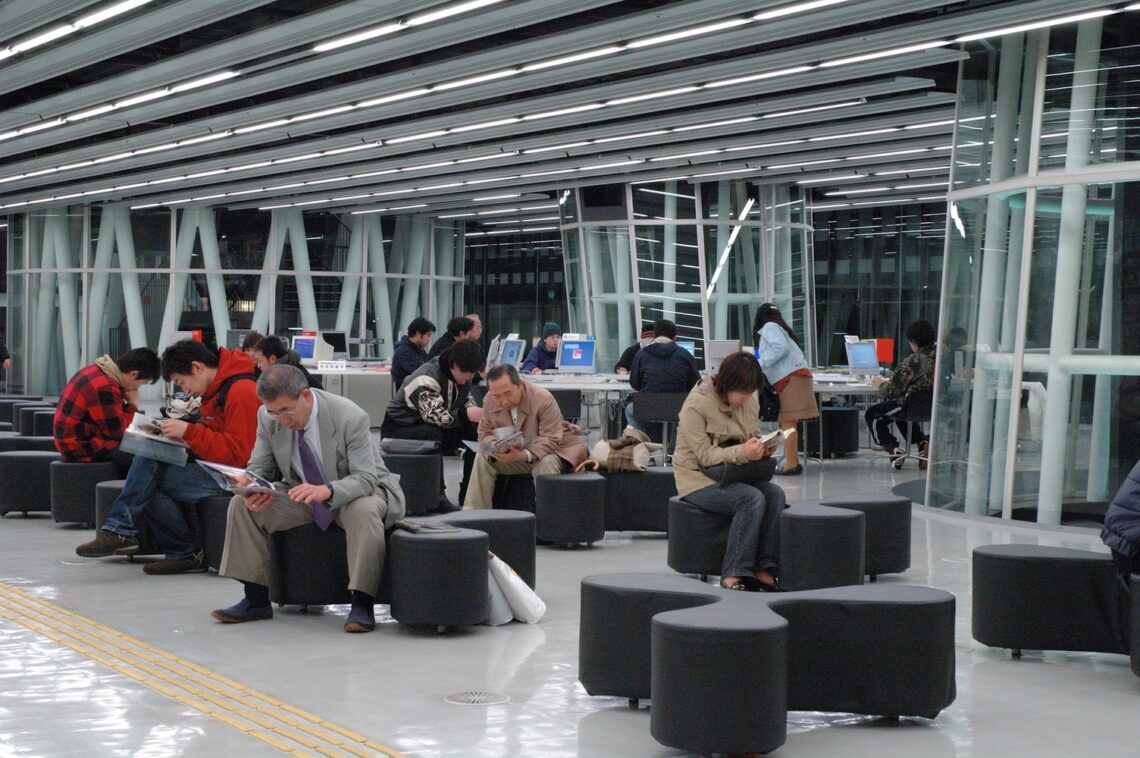

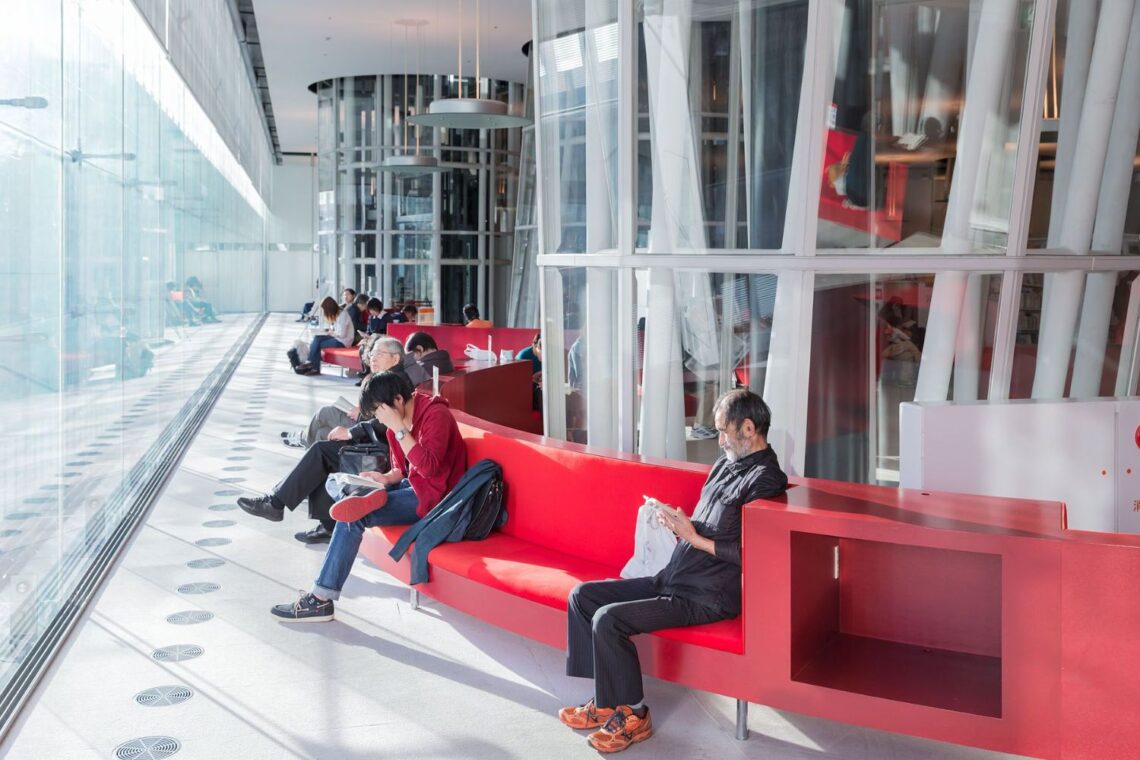

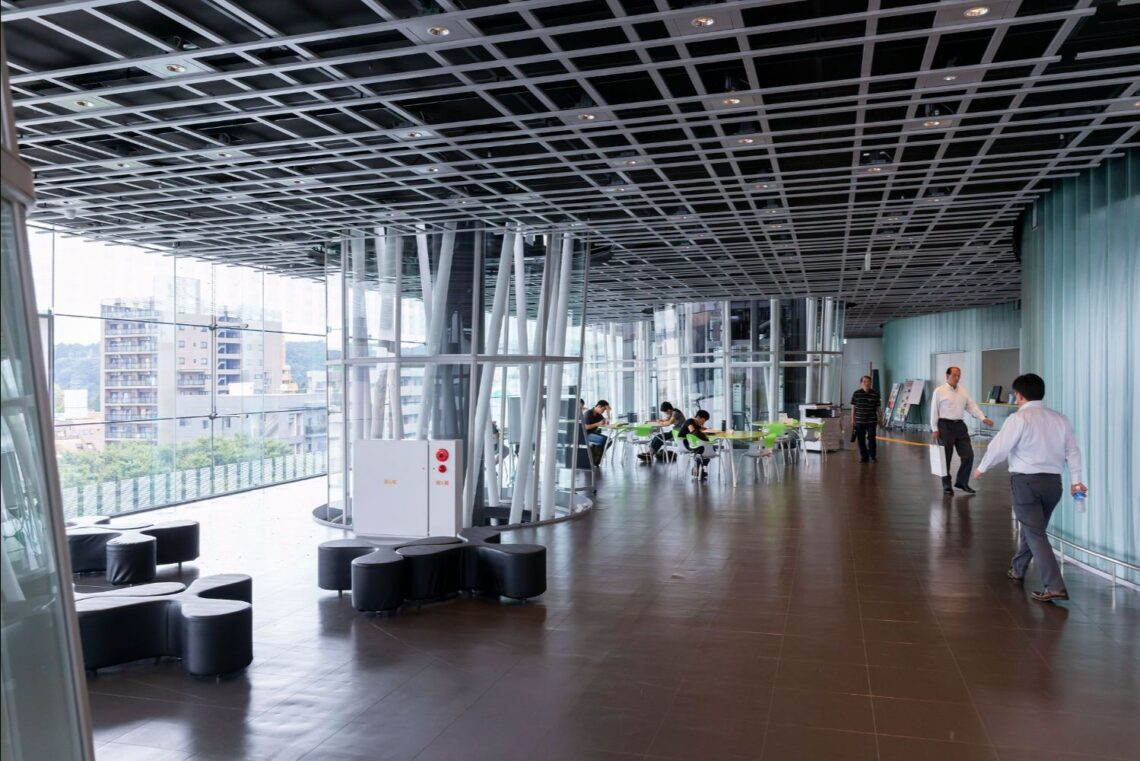

Each floor remains largely free of fixed partitions. This condition enables flexible use and variation across levels, where differences in light, ceiling height, and material define spatial character rather than predetermined function. The project rejects homogeneous modernist space in favor of differentiated yet continuous environments.

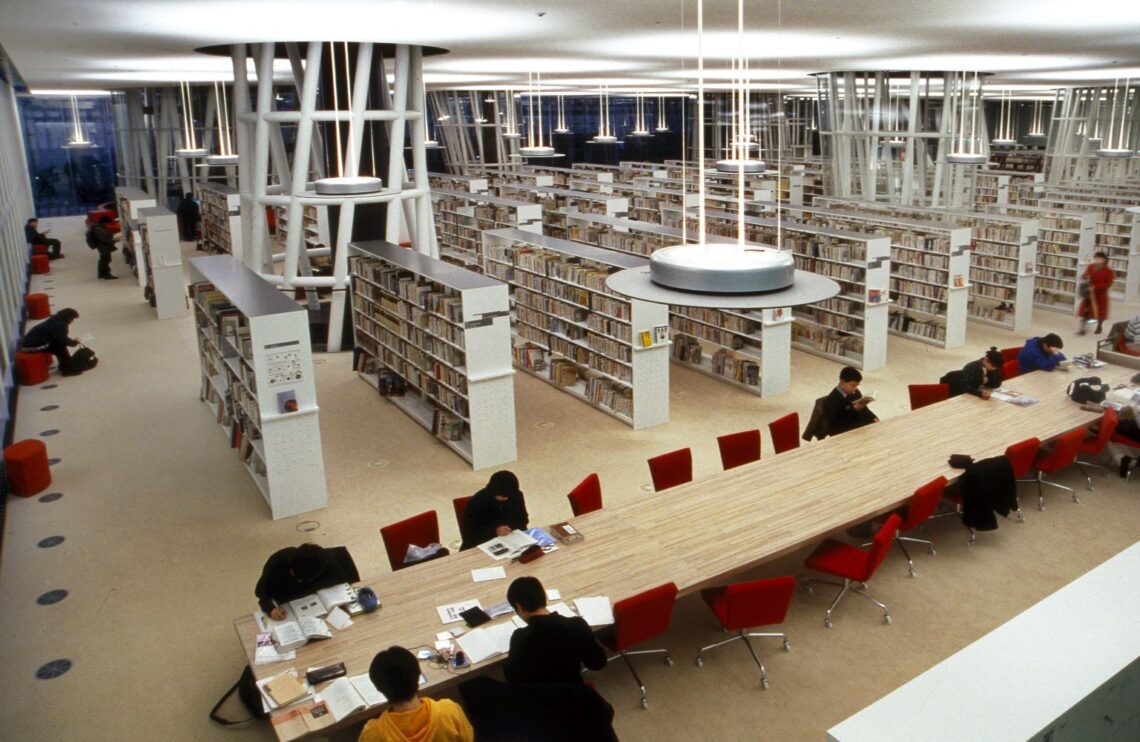

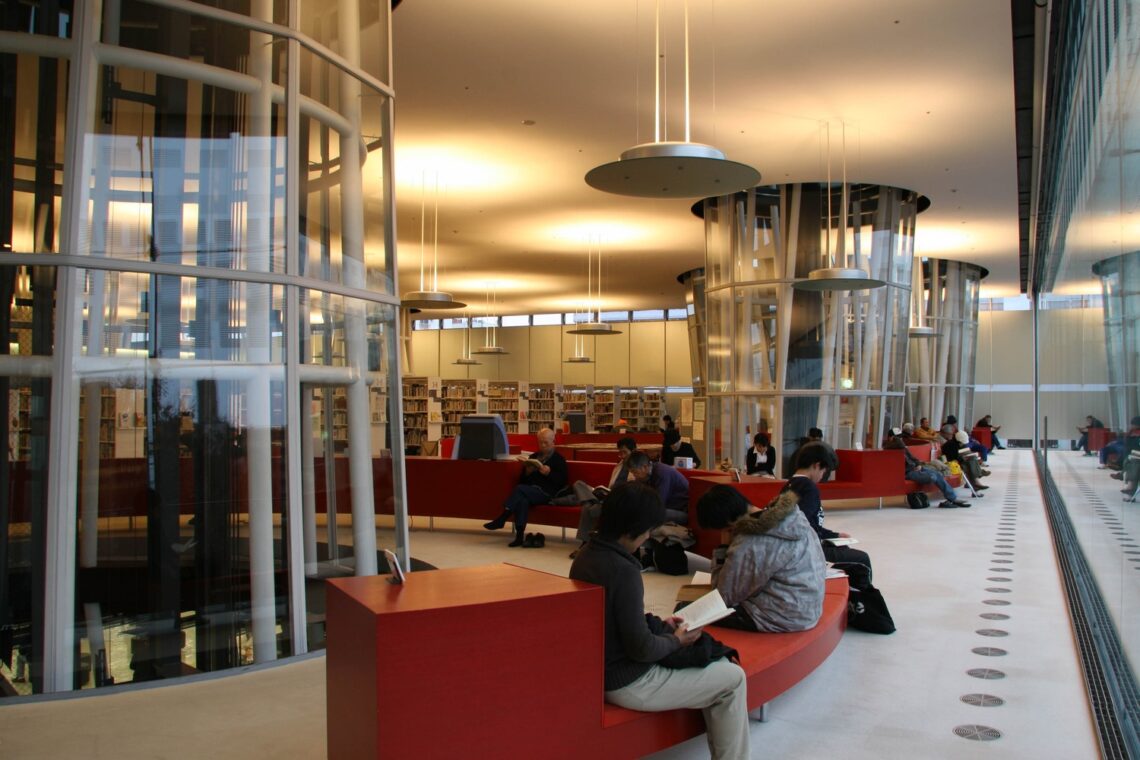

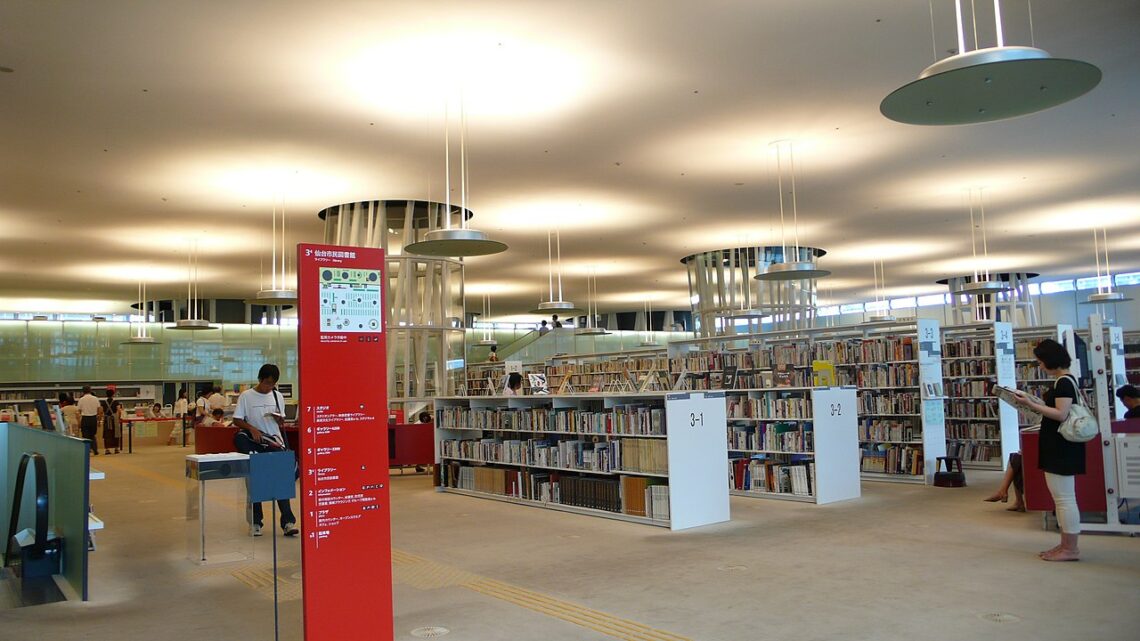

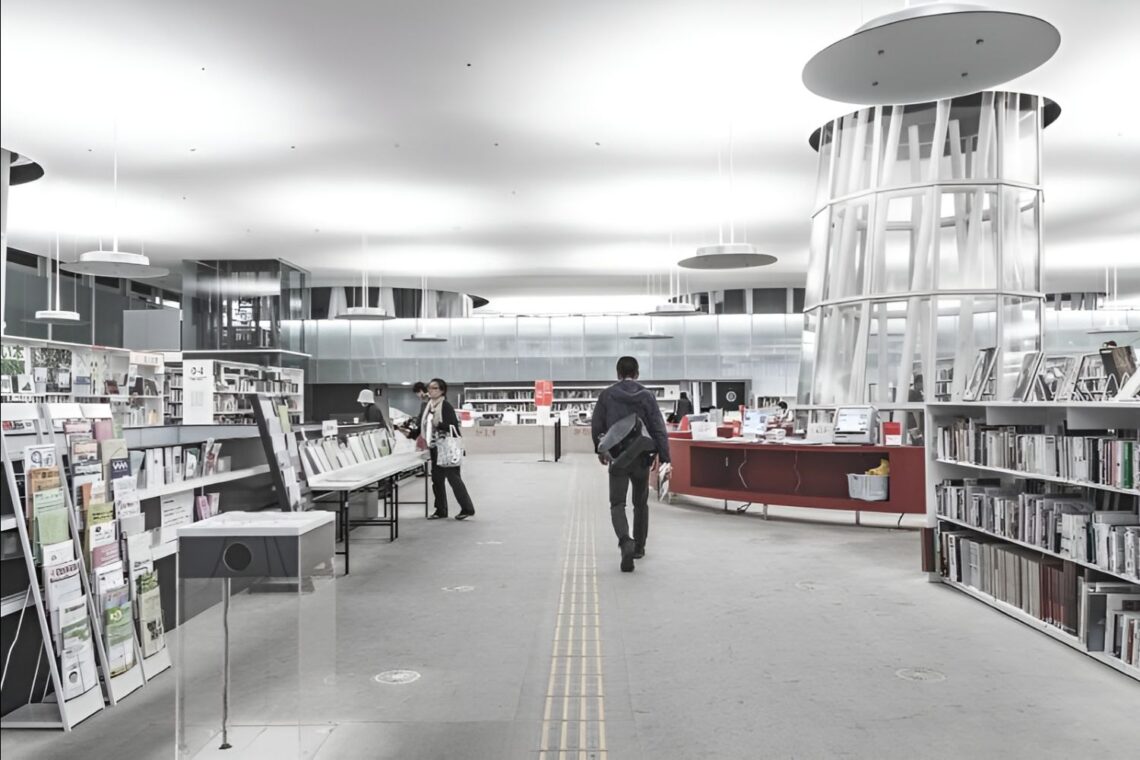

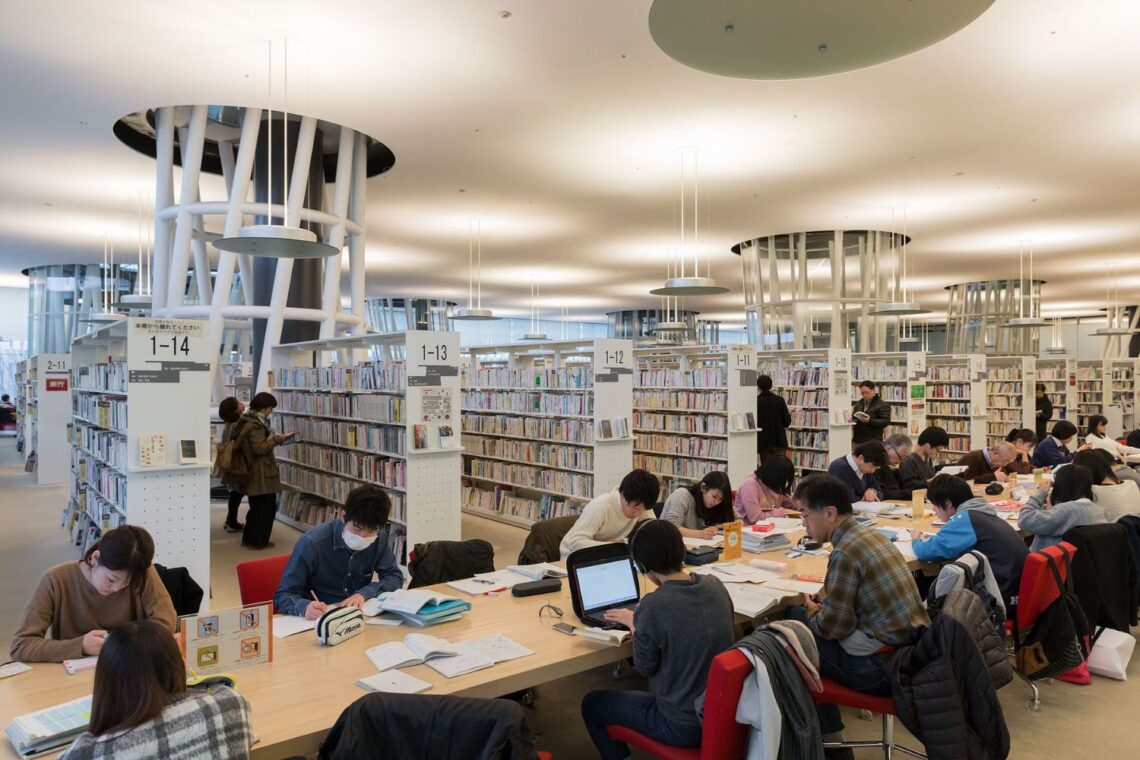

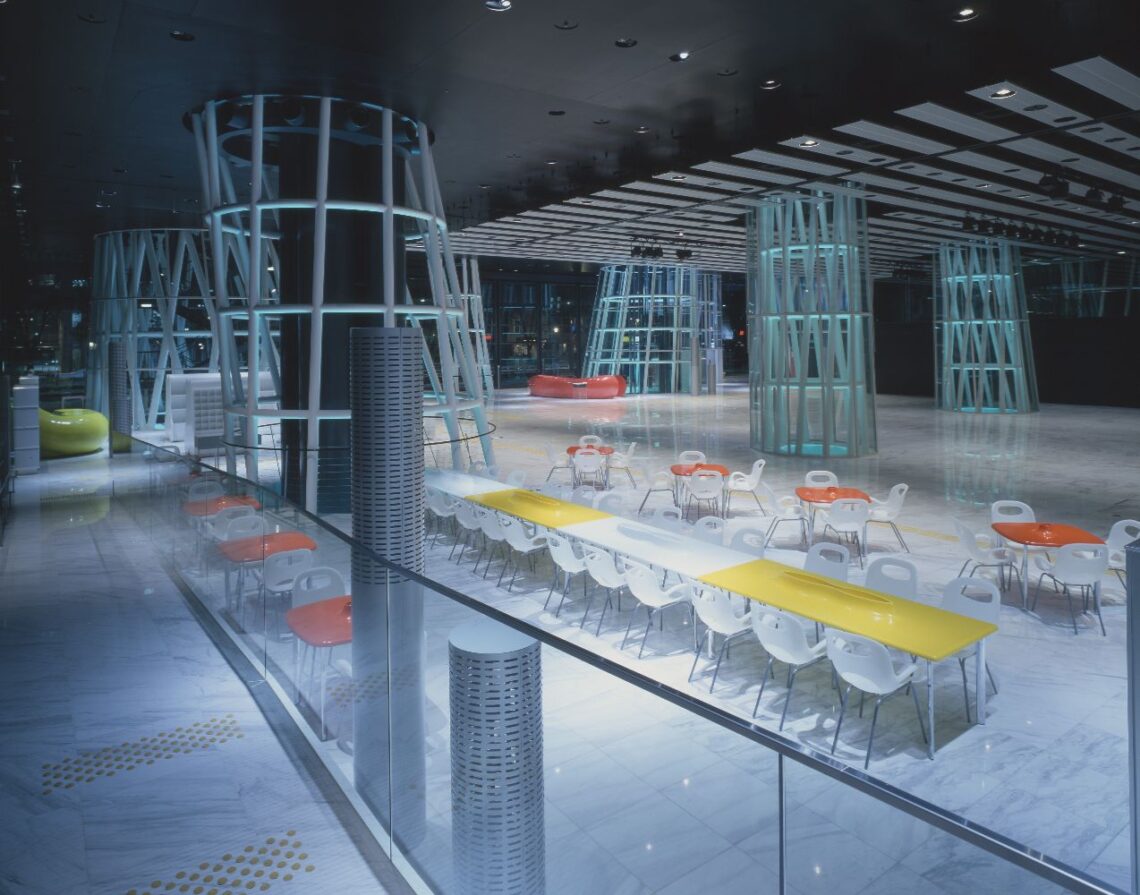

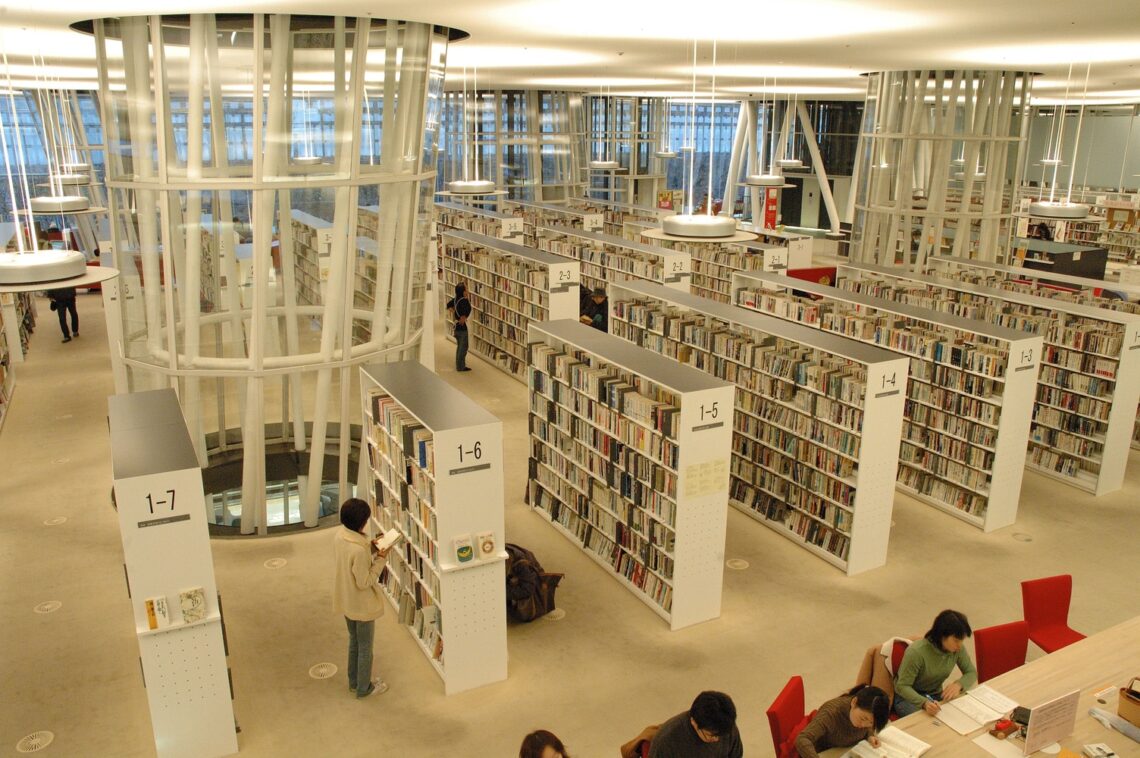

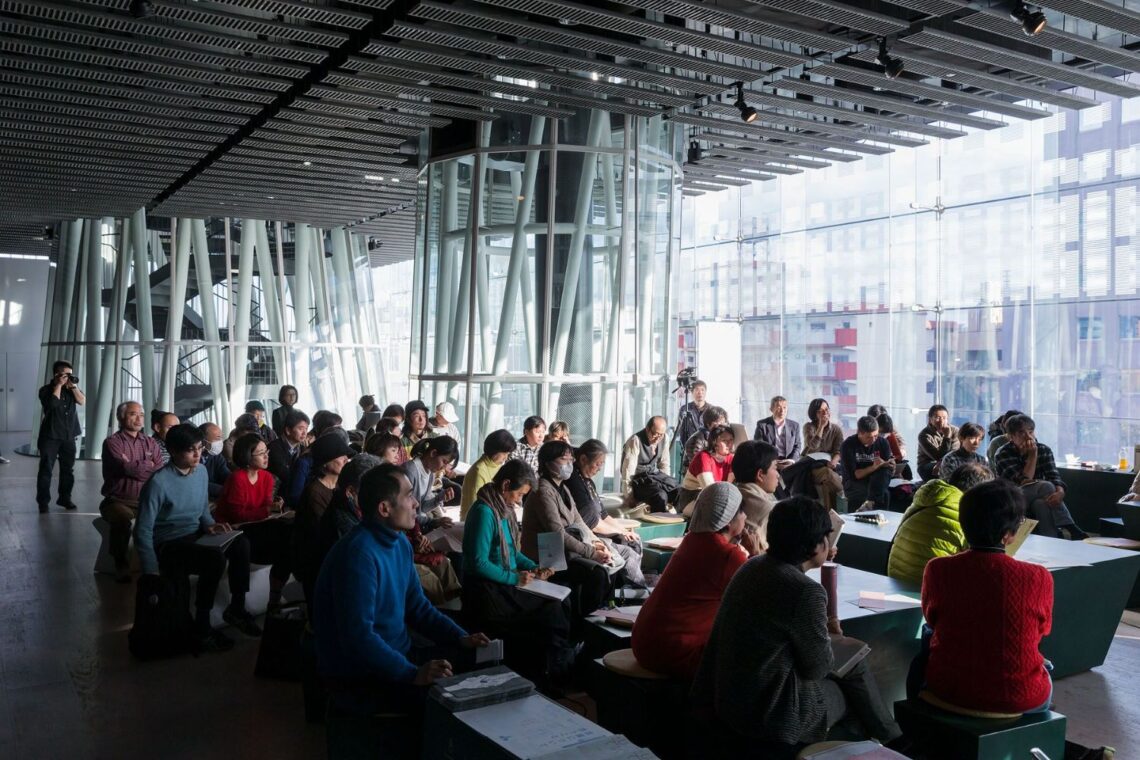

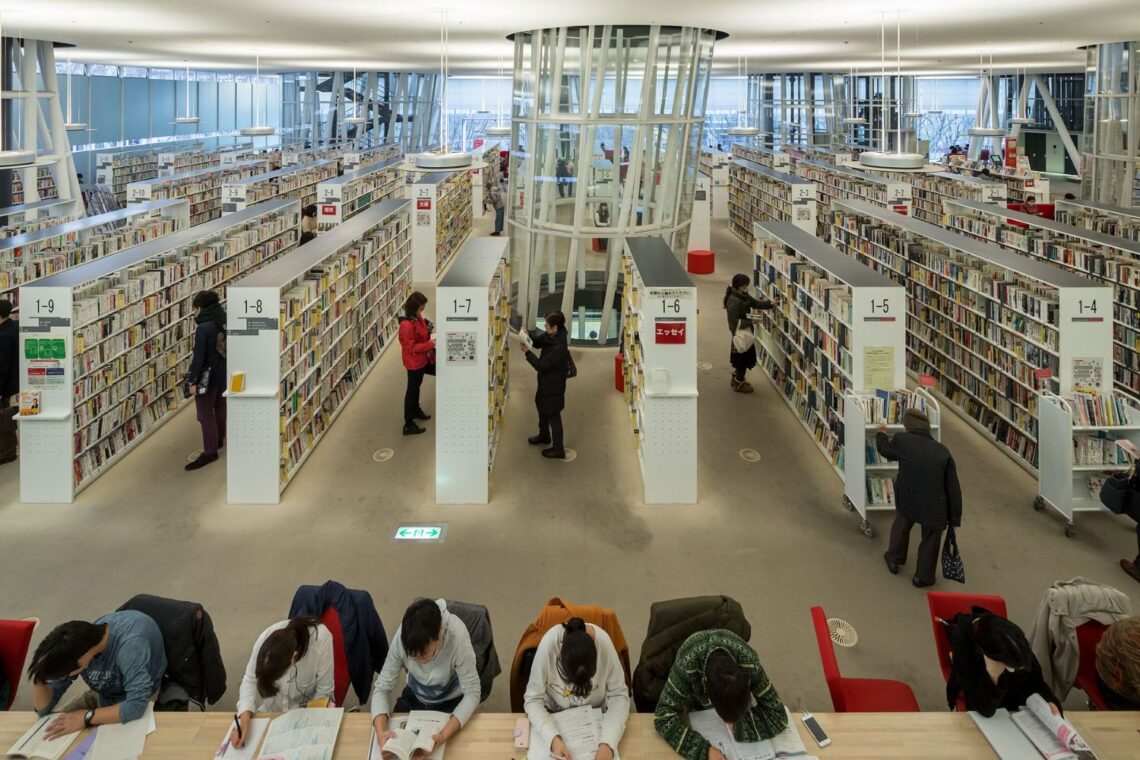

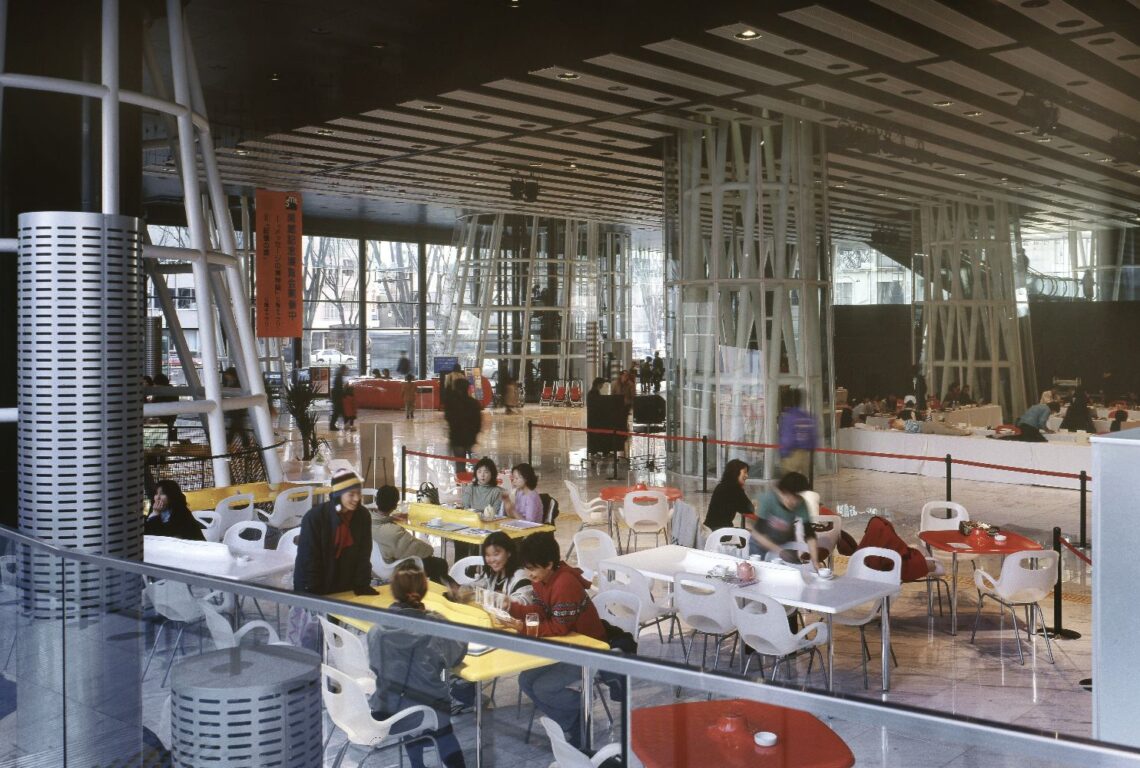

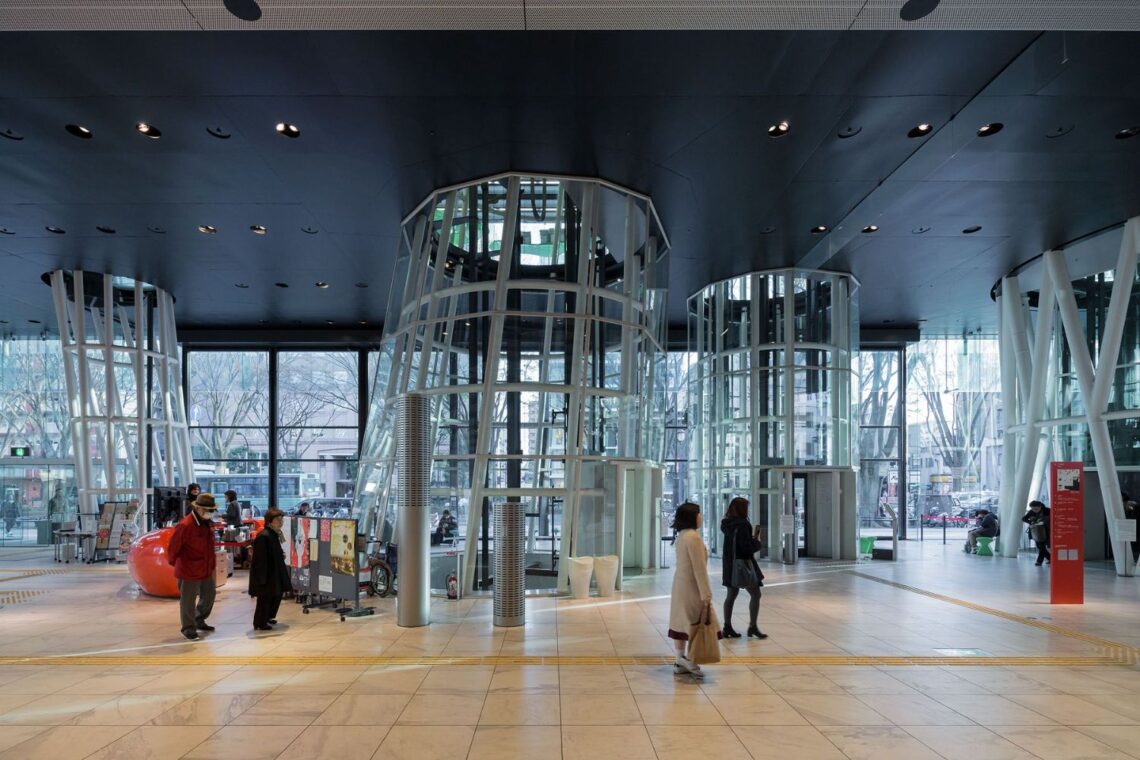

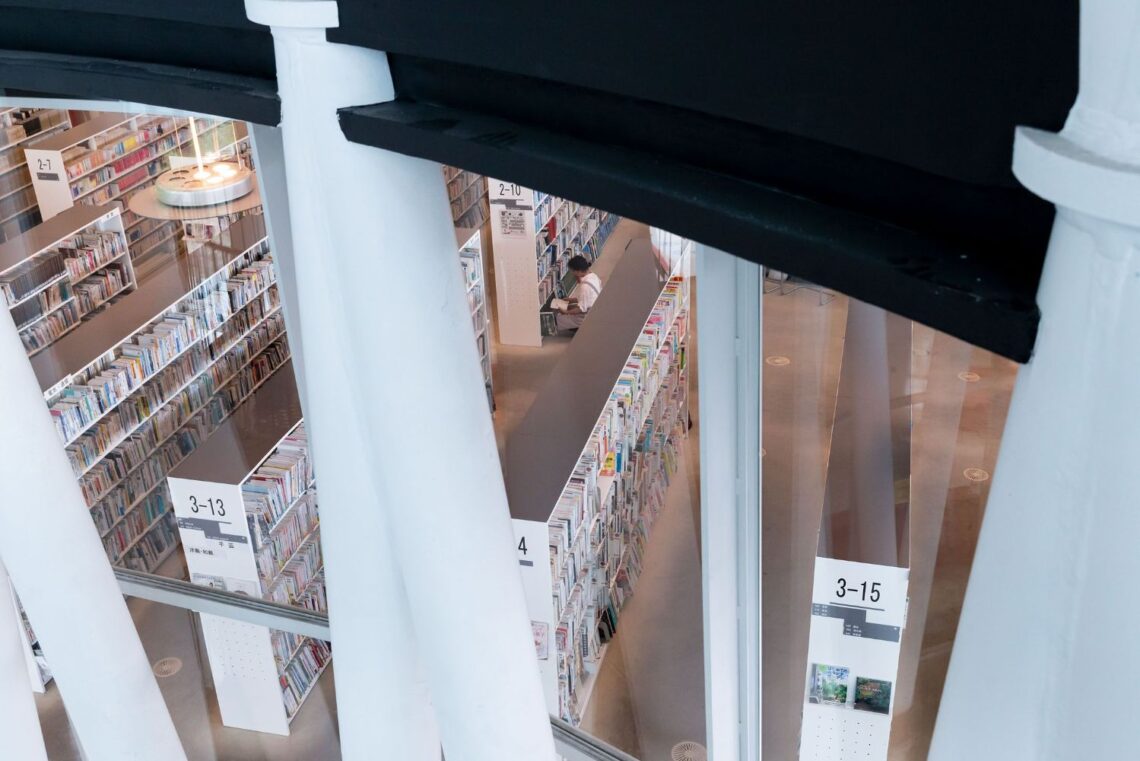

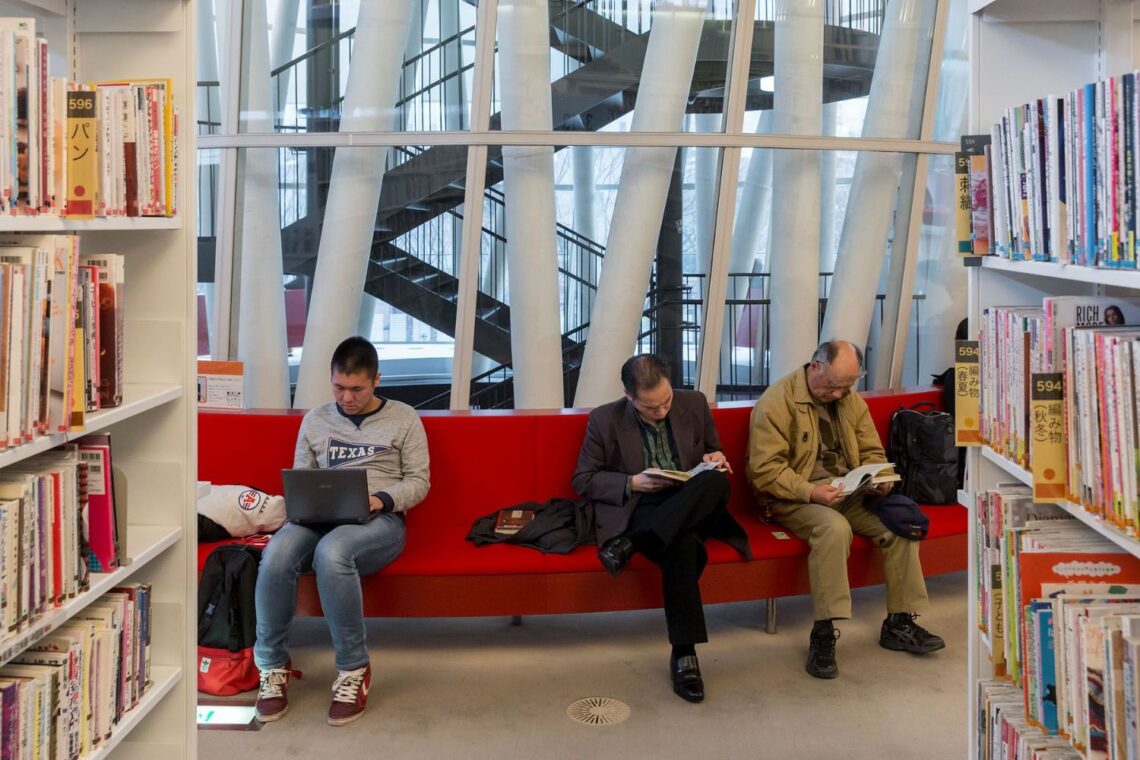

The ground level operates as an extension of the city, conceived as an open public square containing a café, retail areas, and an event space. Upper levels accommodate libraries, galleries, and a cinema, with interior elements designed by multiple collaborators, reinforcing diversity within a unified framework.

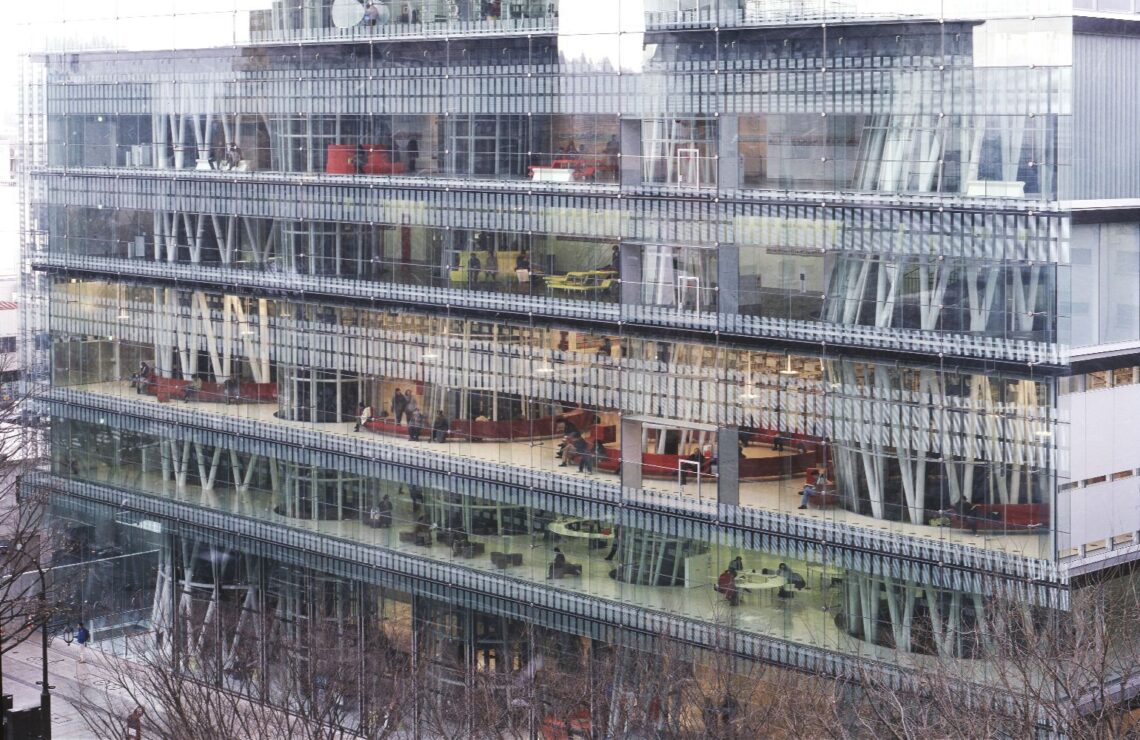

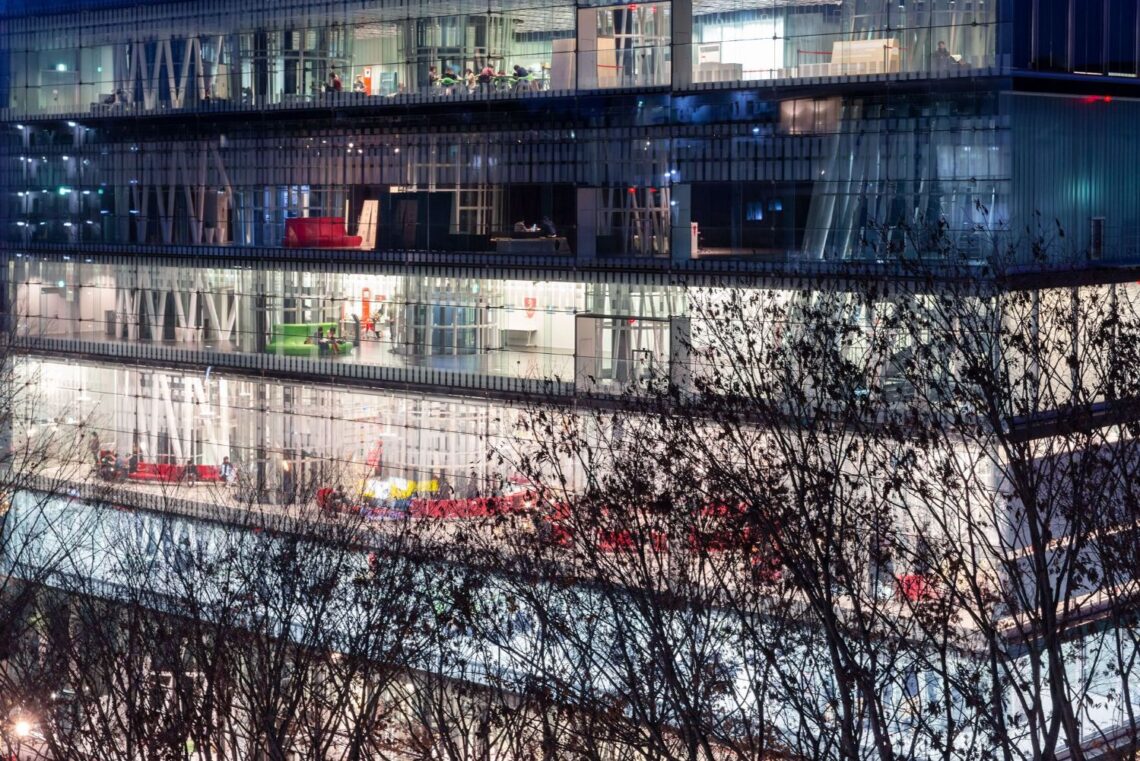

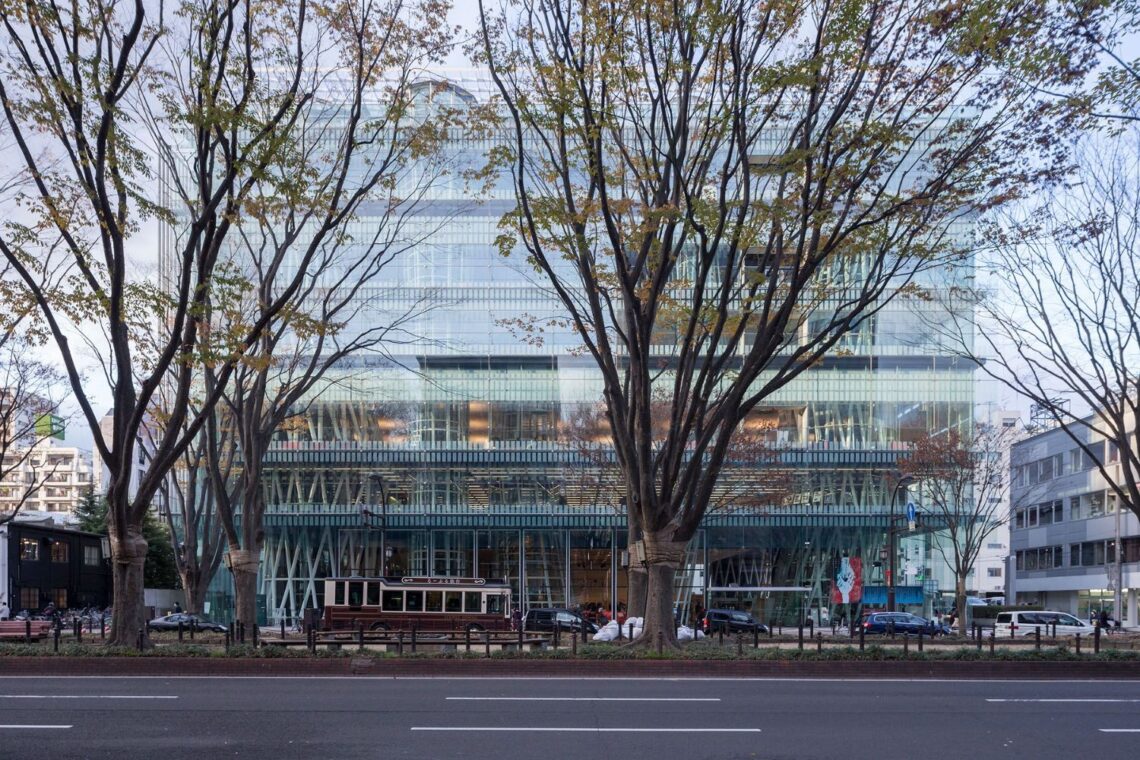

The structure establishes a relationship with its surroundings through an analogy to trees. The tubes rise through the plates like trunks, while the glass façade reflects seasonal change along the boulevard. This approach aligns the building with its urban context while maintaining a distinct architectural identity.
Sendai Mediatheque remains a key project in Toyo Ito’s work, marking a shift toward fluid spatial systems that integrate structure, program, and media into a single architectural expression.
